RJ45 dual port connector without built-in filter, no light strip, shielding pin front 4.57mm DGKYD112B035HWA1D13

Quantidade de ordem mínima :	1 peça	Preço :	Please contact us to get the latest price.
Detalhes da embalagem :	Bandeja em caixa	Tempo de entrega :	10 dias
Termos de pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Habilidade da fonte :	100k PCs/dia

Lugar de origem:	Dongguan da China	Marca:	DGKYD
Certificação:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número do modelo:	DGKYD111Q334AB2A1DP

Informação detalhada
categoria:	Jaques modulares	Tipo de componente:	Jack de PCB
Tipo:	RJ45	Magnético:	Nenhum
Categoria de desempenho:	gato 3 5	Tipo de Insetion:	Entrada lateral
Estilo da montagem:	MERGULHAR	OEM/ODM:	Sim
Número de posições/contatos:	8P8c (RJ45, ethernet)	Arremesso de ouro nos pinos de contato:	6U
Temperatura de armazenamento:	-40 ° C ~+85 ° C.	Temperatura operacional:	-40 ° C ~+85 ° C.
Destacar:	RJ45 dual port connector without filter , RJ45 connector shielding pin front , RJ45 with transformer no light strip

Descrição de produto

RJ45 Dual Port Connector Without Built-in Filter

DGKYD112B035HWA1D13 - Professional RJ45 dual port connector without built-in filter, no light strip, with shielding pin front 4.57mm.

Technical Documentation

Download Product Datasheet (PDF)

Technical Specifications

Specification	Details
Part Number	DGKYD112B035HWA1D13
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard TAB-DOWN
Filter	Without Filter
LED Option	Without LED
Shielded	With metal shield
Port Configuration	Single Ports (1X2)
Number of Positions	8
Terminals per Port	8
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Housing Material	PBT Polyester (Black)
UL Flammability Rating	UL 94V-0

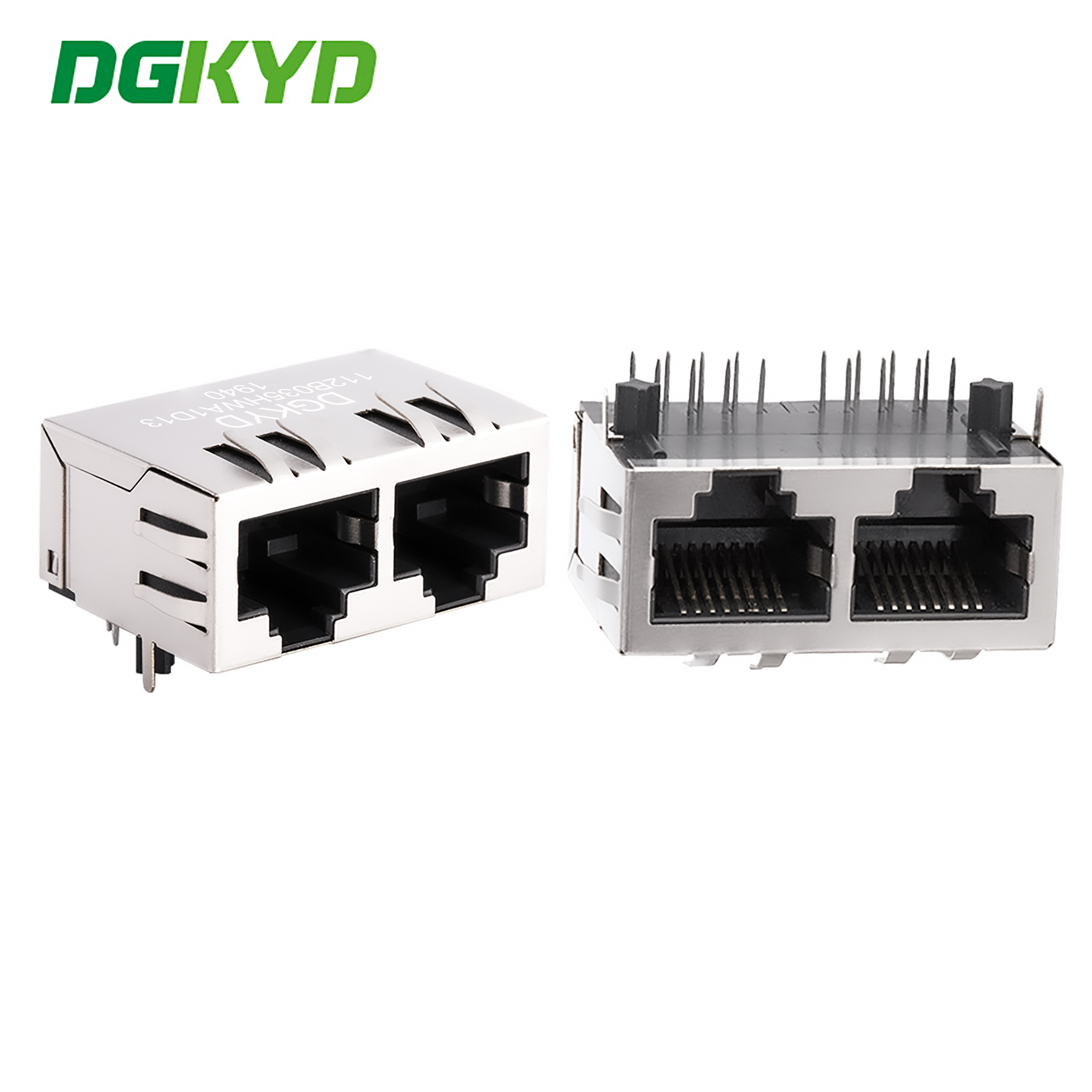

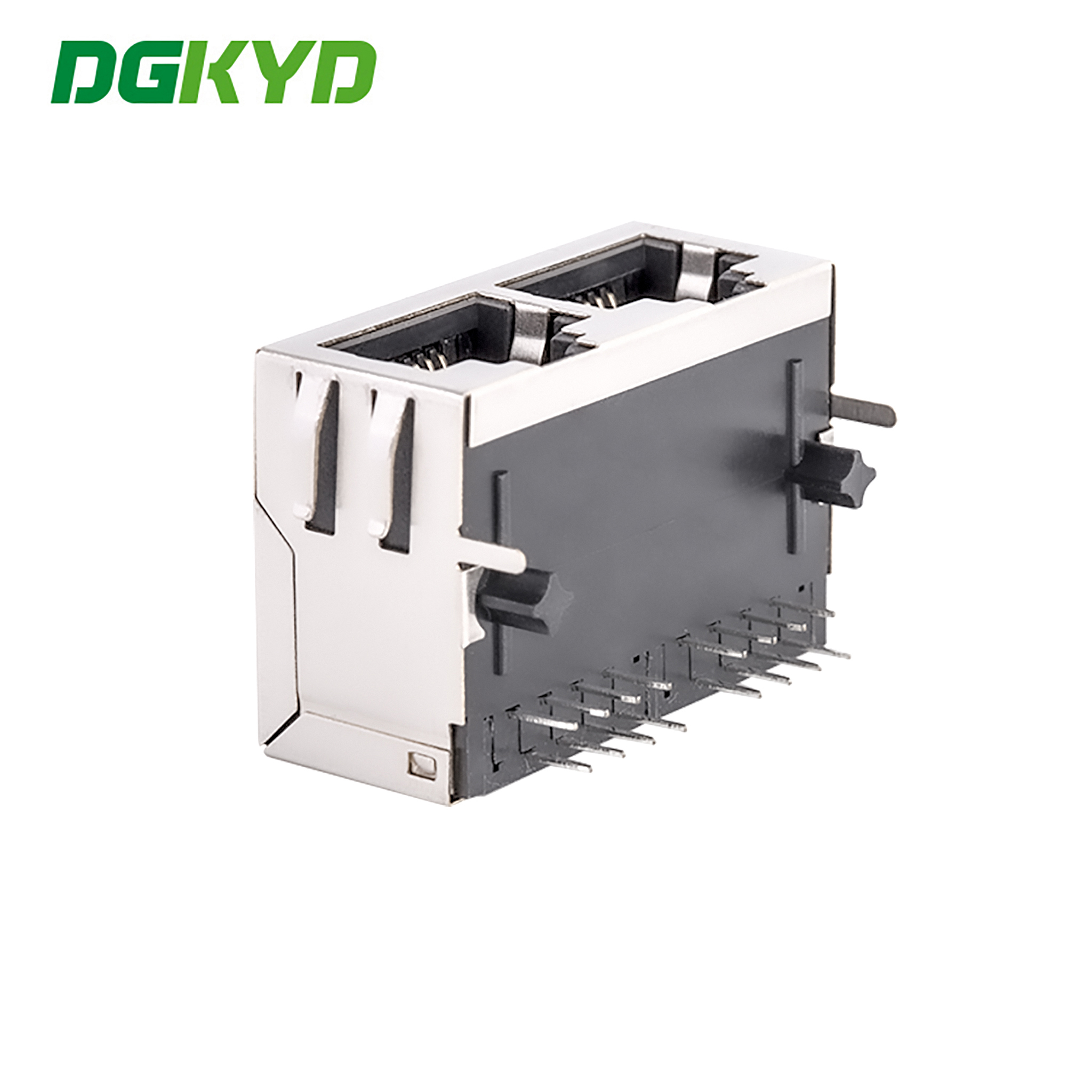

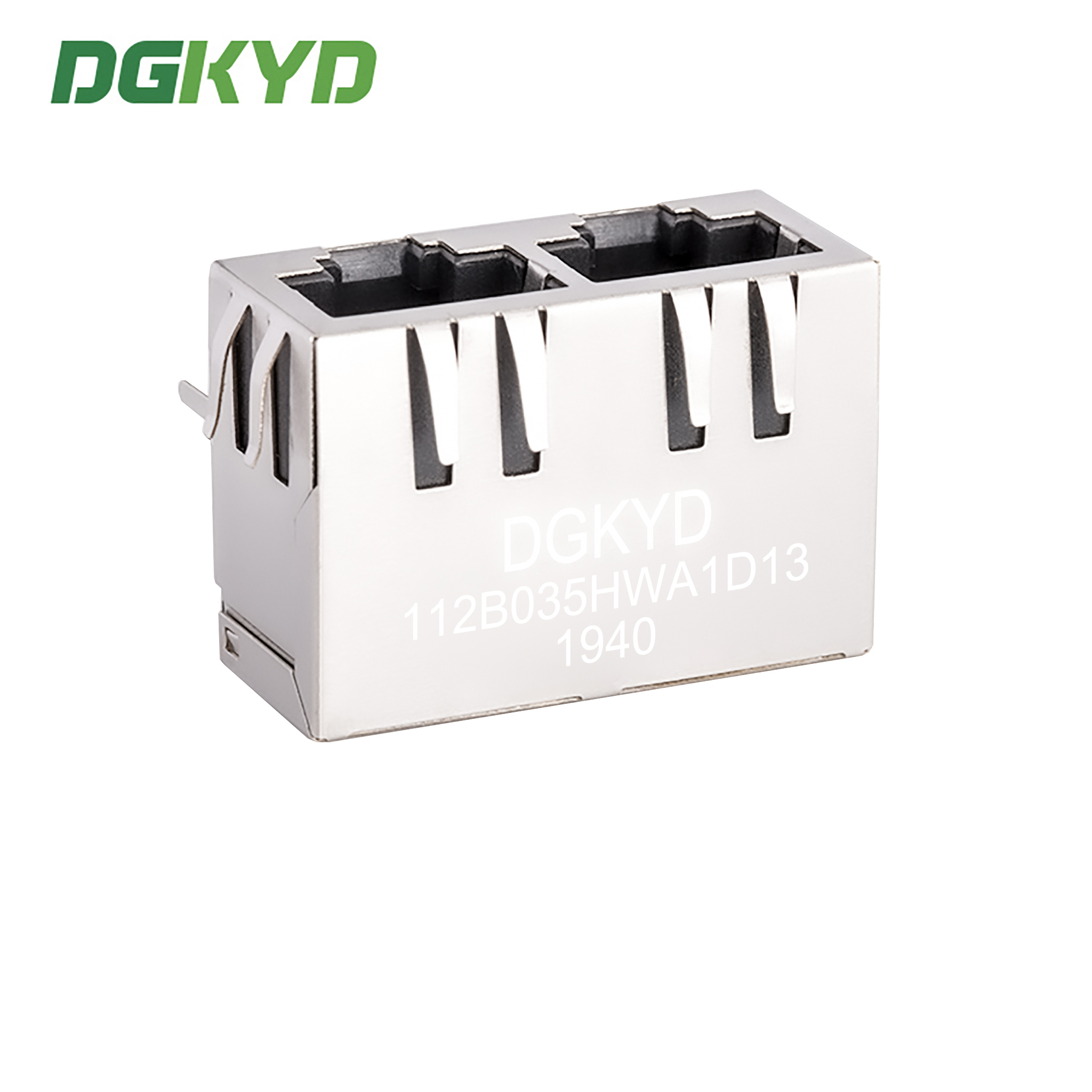

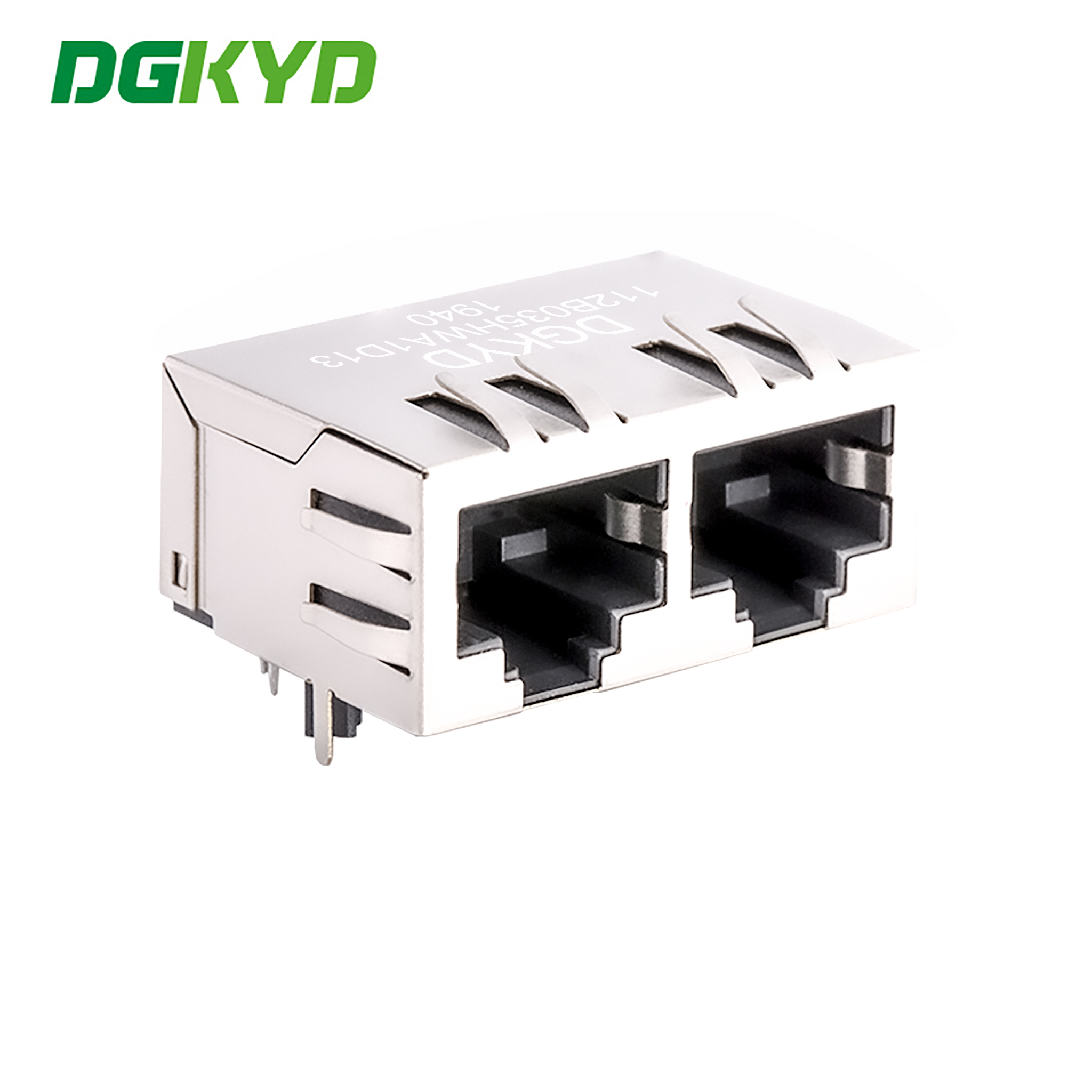

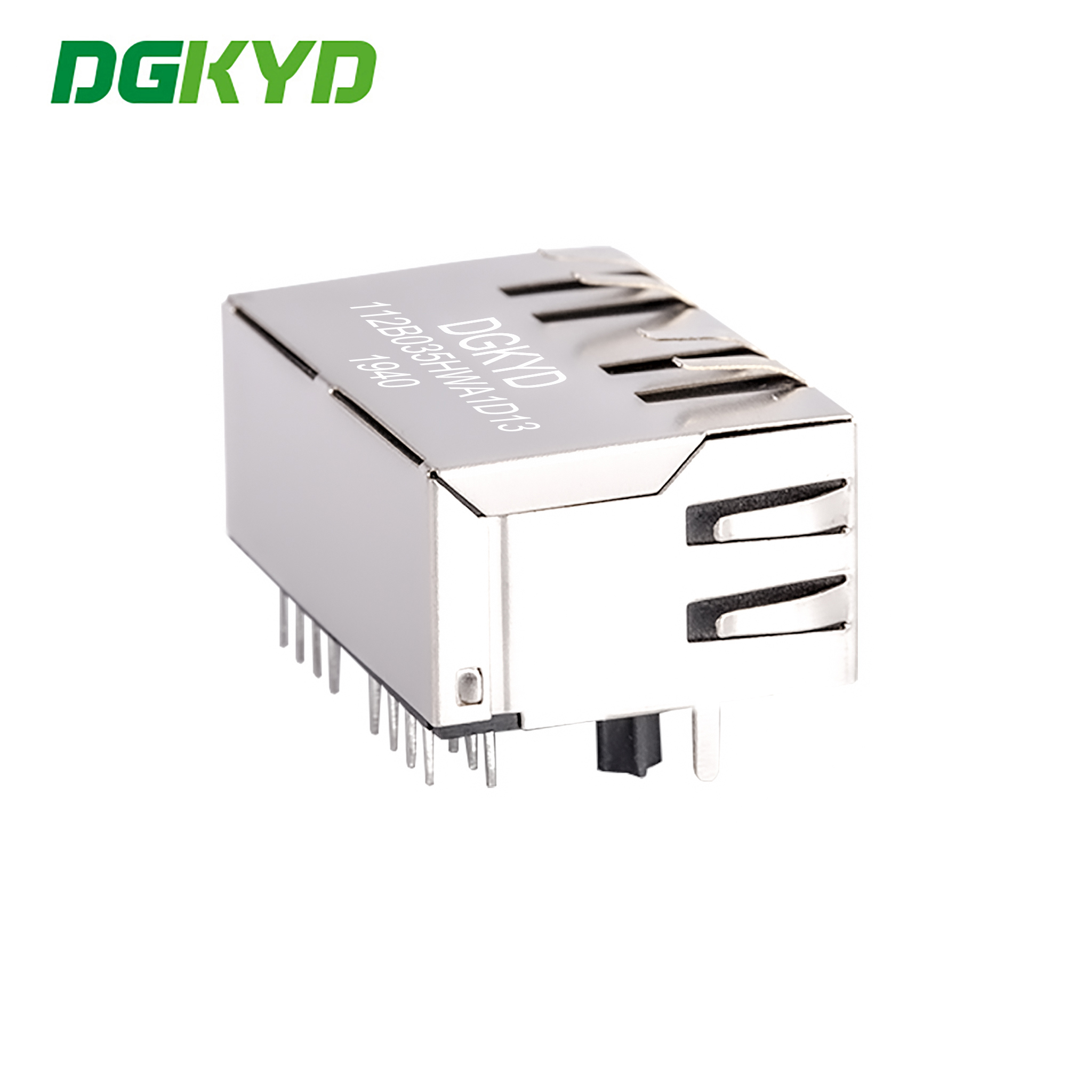

Product Images

Manufacturer Information

Company Profile

Factory Show

Product Catalog

Product Features

Interface type: crystal head application for 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic with filtering and anti-interference
Operating temperature range: -40℃ to 85℃
Storage temperature range: -40℃ to 85℃
Lead free soldering compatible with wave soldering up to 265℃
Full series of integrated circuit accessories available
Manufacturer direct supply with competitive pricing

Customization Options

LED indicator light options (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or without
Various coil ratios of magnetic core
Diverse magnetics circuit options
Contact gold plating options (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material choices (PBT, PA46, PA9T, LCP)

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer with our own production facilities. Welcome to visit our factory.

Q: What is your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes, we typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on the product?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products according to your specifications.
