RJ45 multi port connector industrial network interface network port socket 8P8C KRJ-5921S2X3WDENL

Quantidade de ordem mínima :	1 peça	Preço :	Please contact us to get the latest price.
Detalhes da embalagem :	Bandeja em caixa	Tempo de entrega :	10 dias
Termos de pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Habilidade da fonte :	100k PCs/dia

Lugar de origem:	Dongguan da China	Marca:	DGKYD
Certificação:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número do modelo:	KRJ-5921S2X3WDENL

Informação detalhada
de Jack Type:	RJ45	Magnetics:	Nenhum
Estilo da montagem:	MERGULHAR	Tipo do conector:	Conjunto do conector
Número de portas:	2x3	Escudo:	fósforo níquel de cobre
OEM/ODM:	sim	Número de posições/contatos:	8P8c (RJ45, ethernet)
Arremesso de ouro nos pinos de contato:	G/Fu	Temperatura de armazenamento:	-40 ° C ~+85 ° C.
Temperatura operacional:	-40 ° C ~+85 ° C.
Destacar:	RJ45 multi port connector industrial , RJ45 network port socket 8P8C , RJ45 KRJ-5921S2X3WDENL without transformer

Descrição de produto

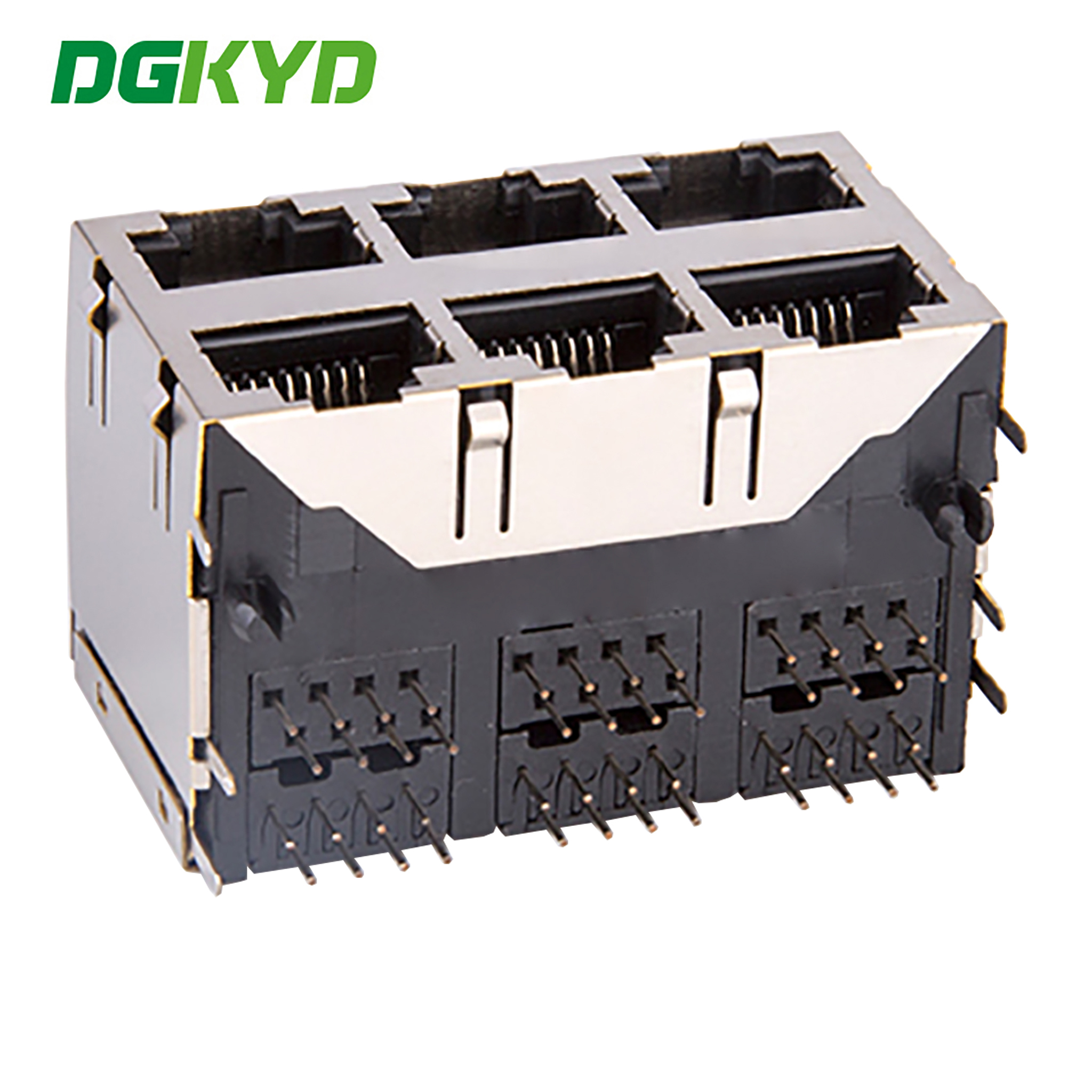

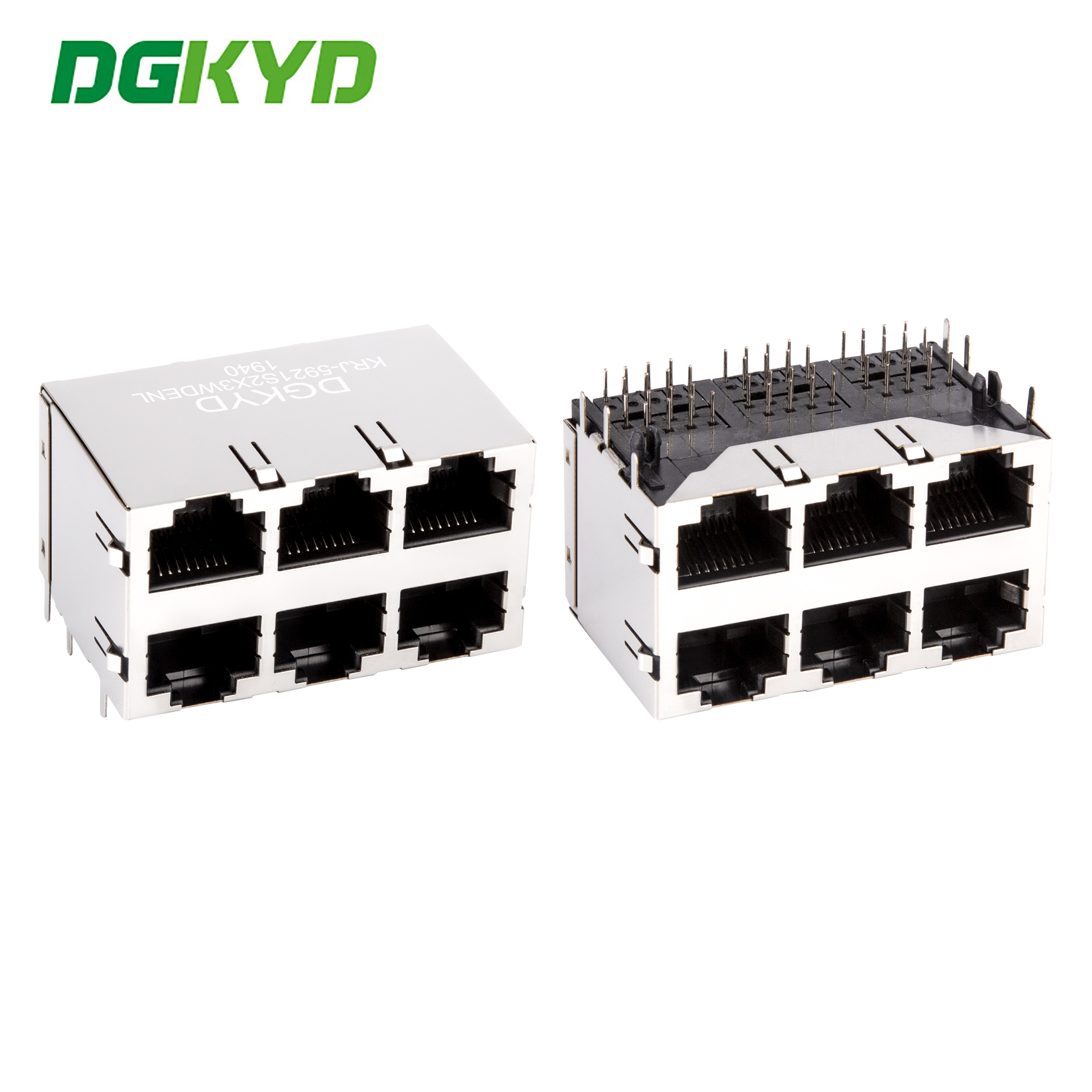

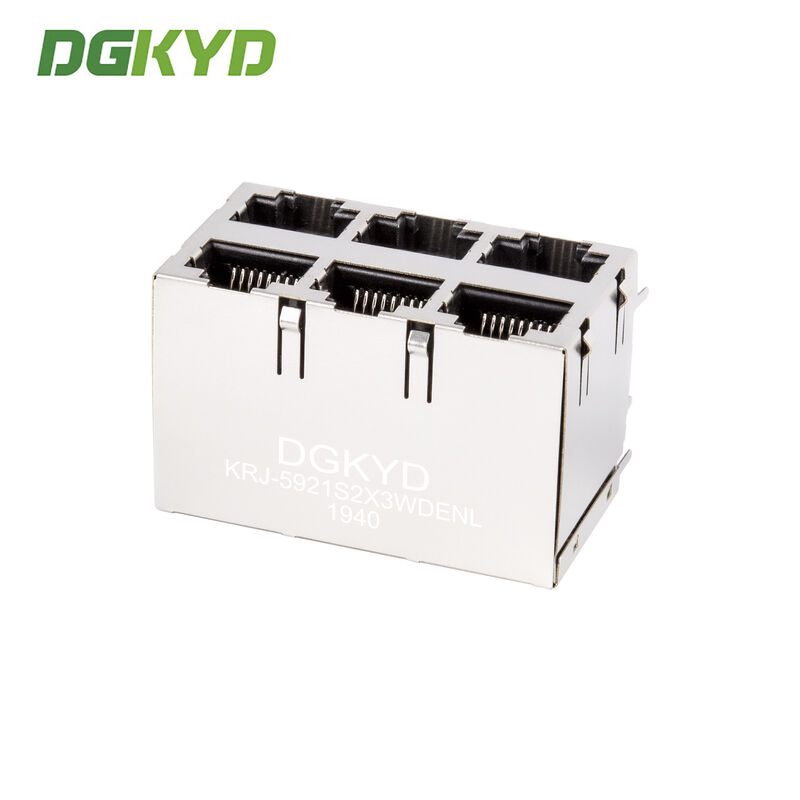

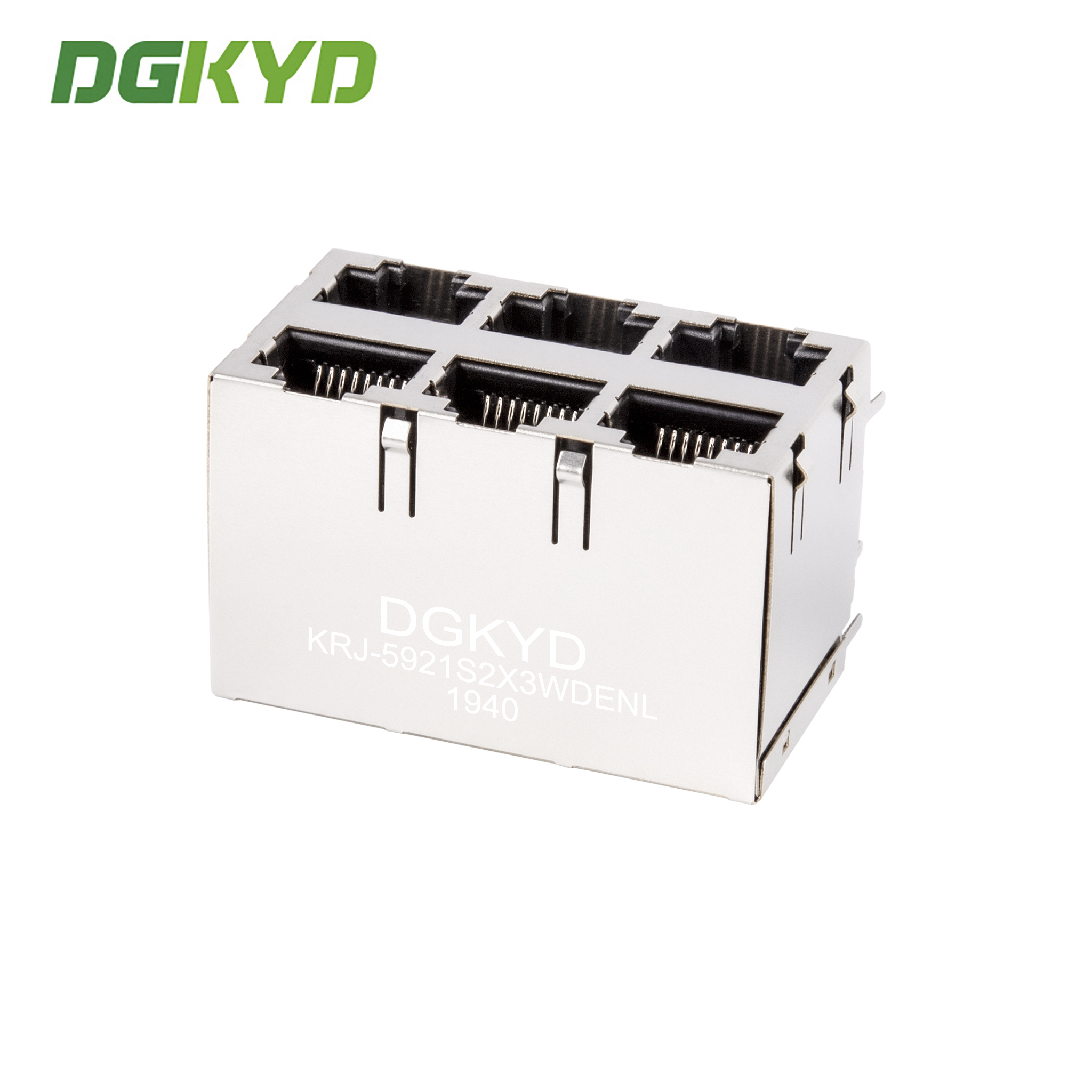

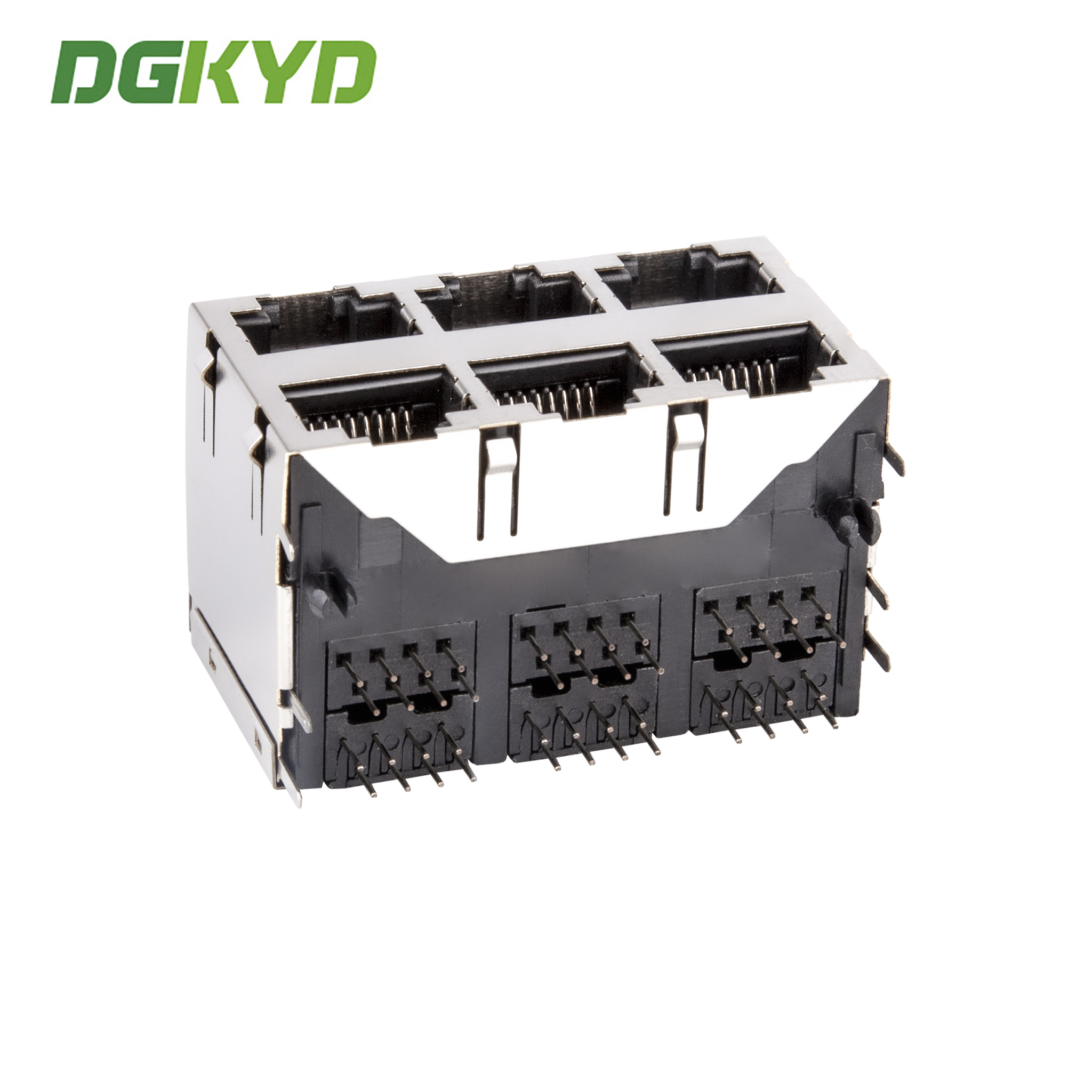

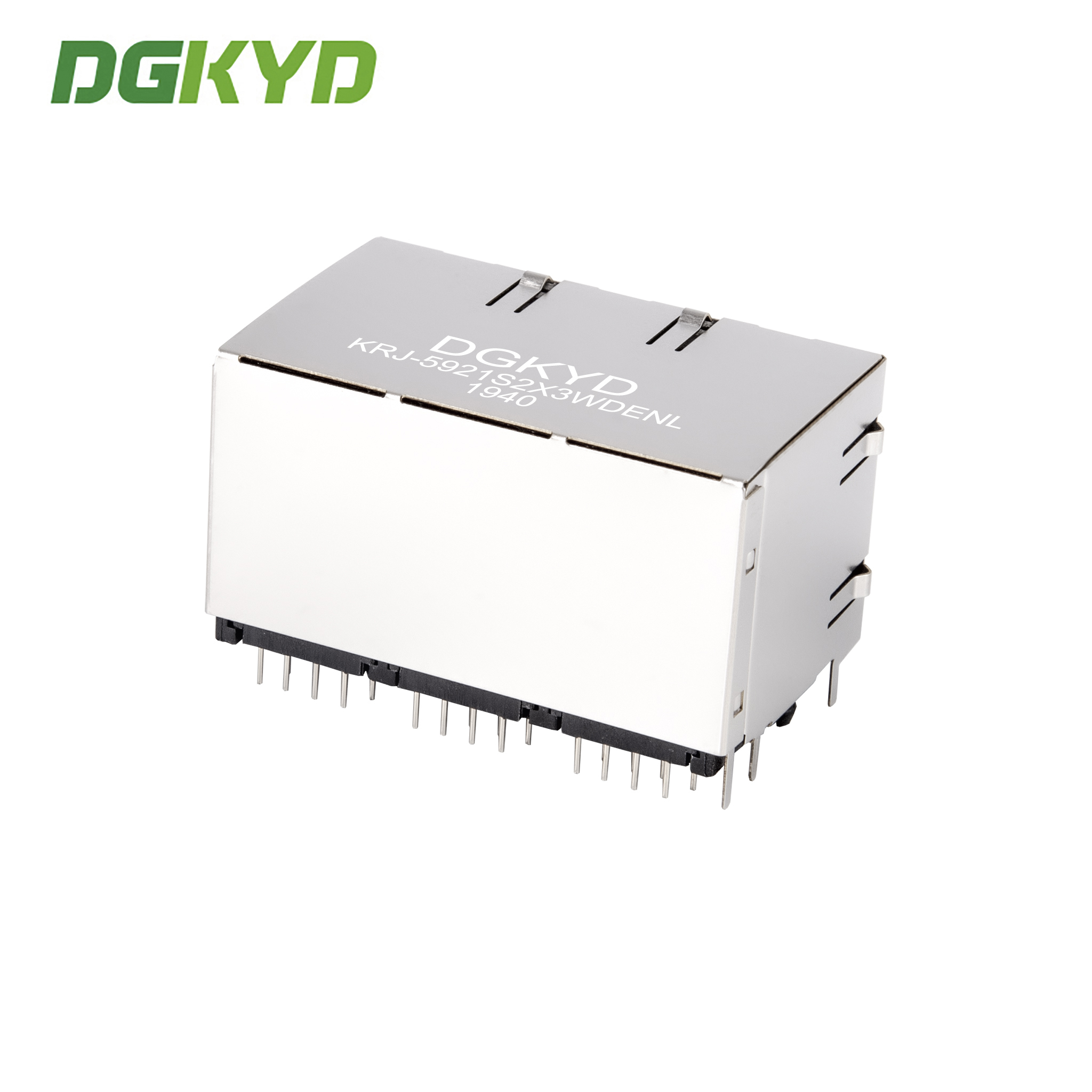

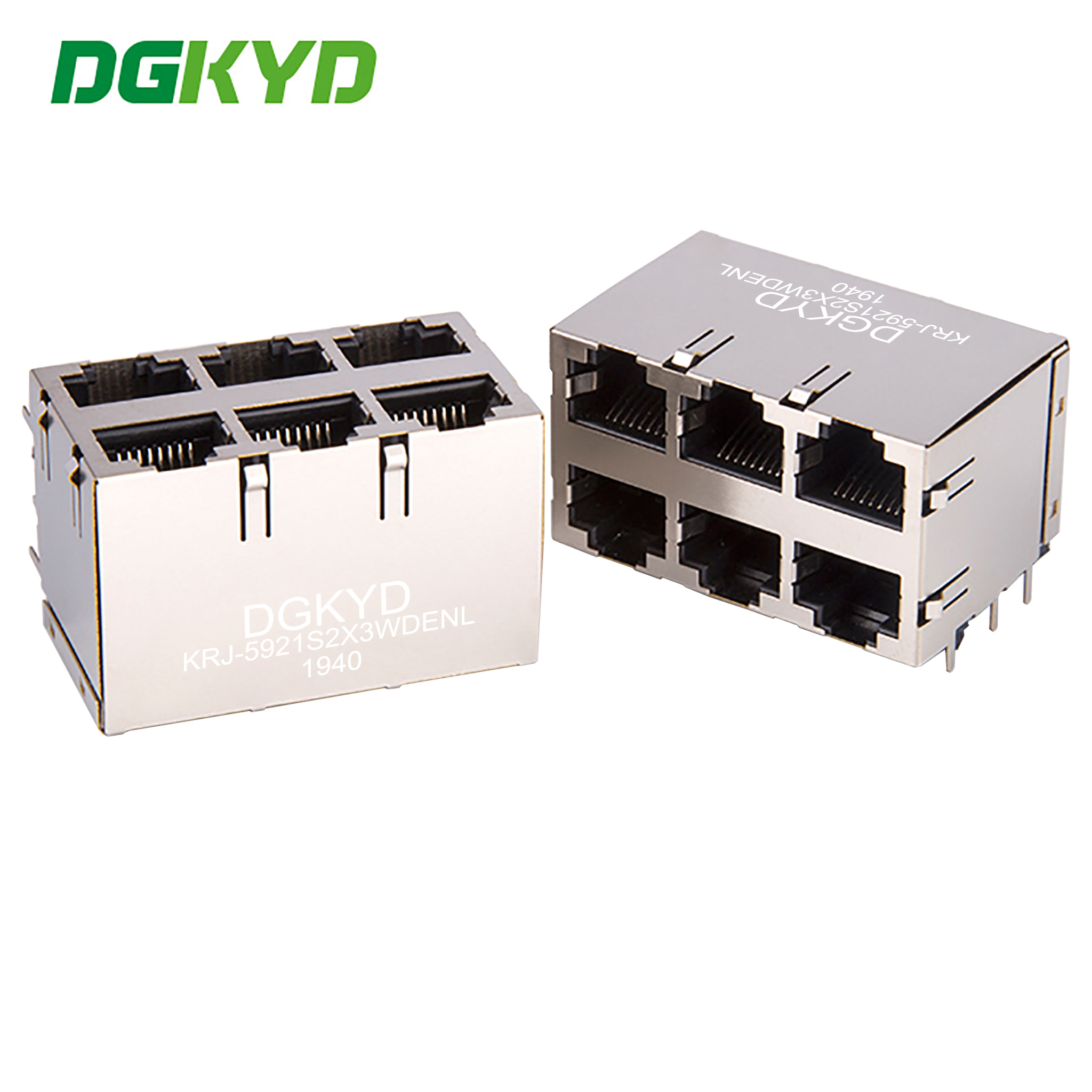

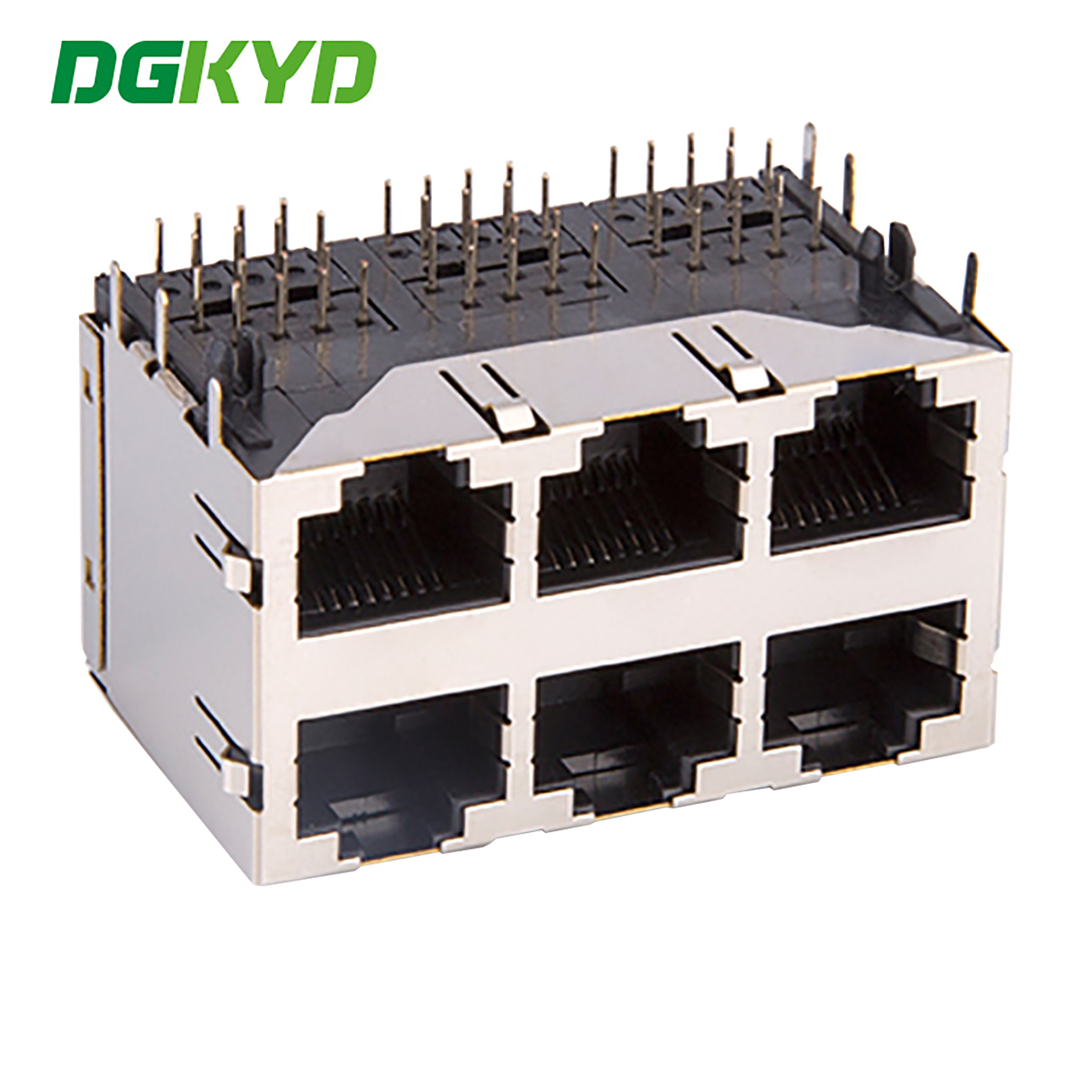

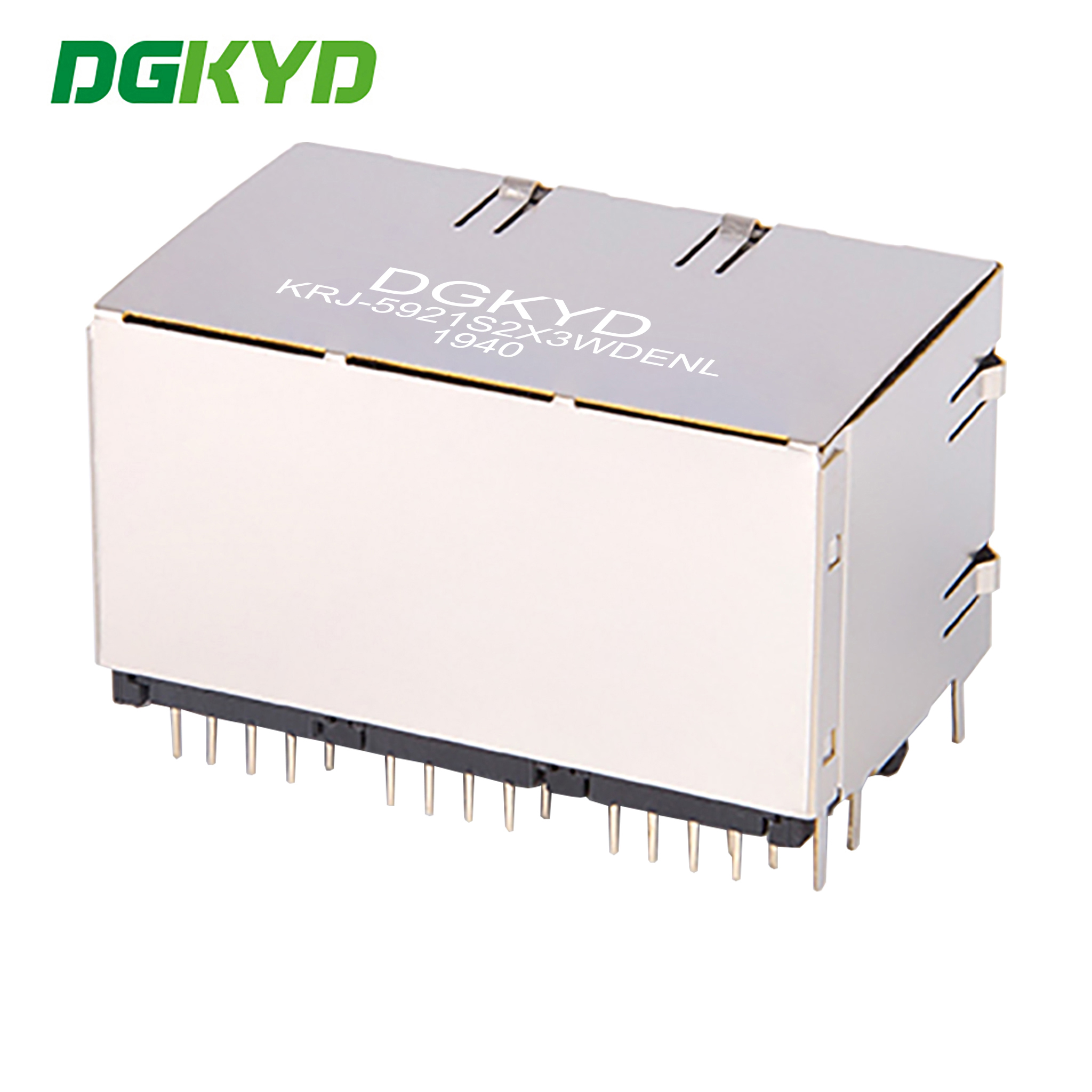

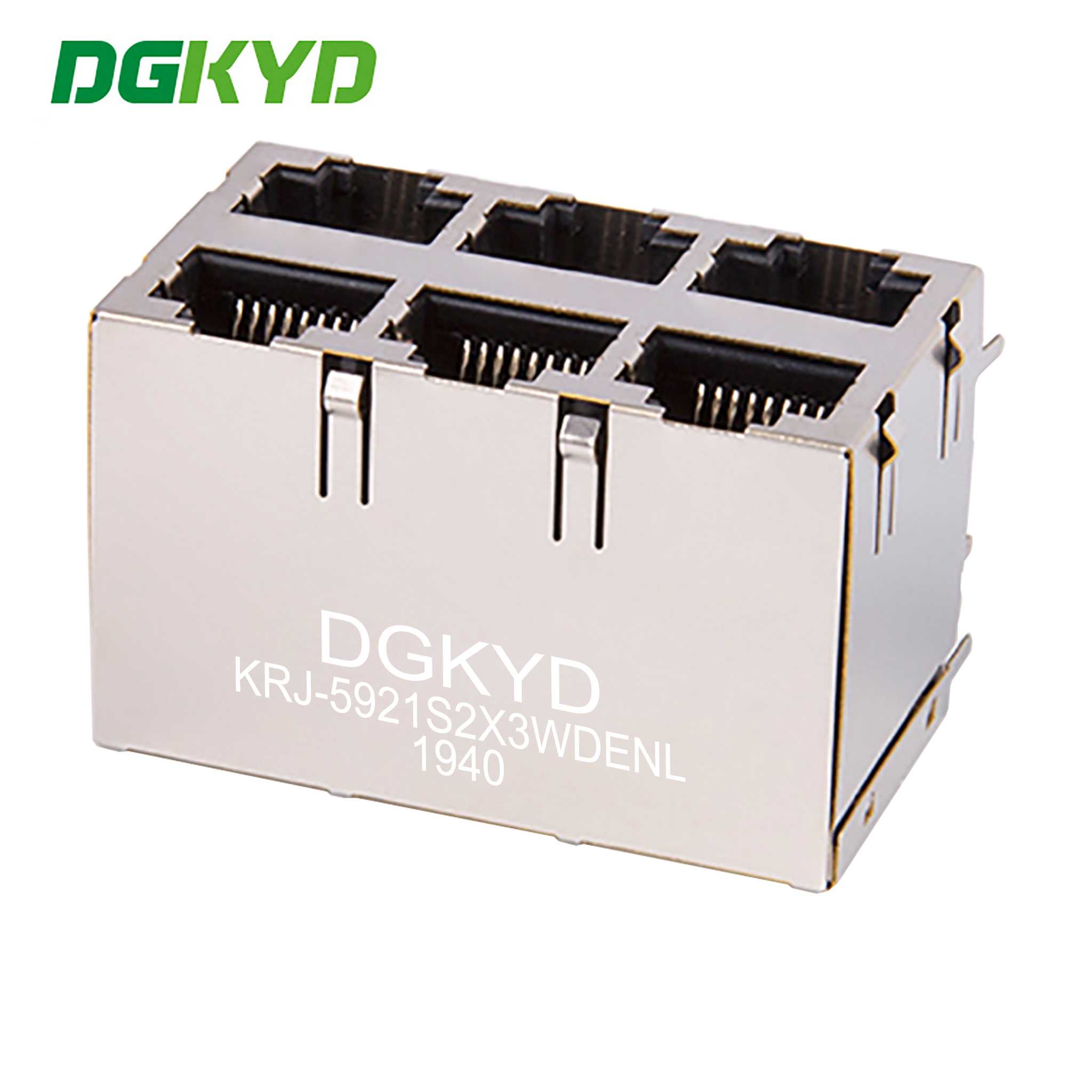

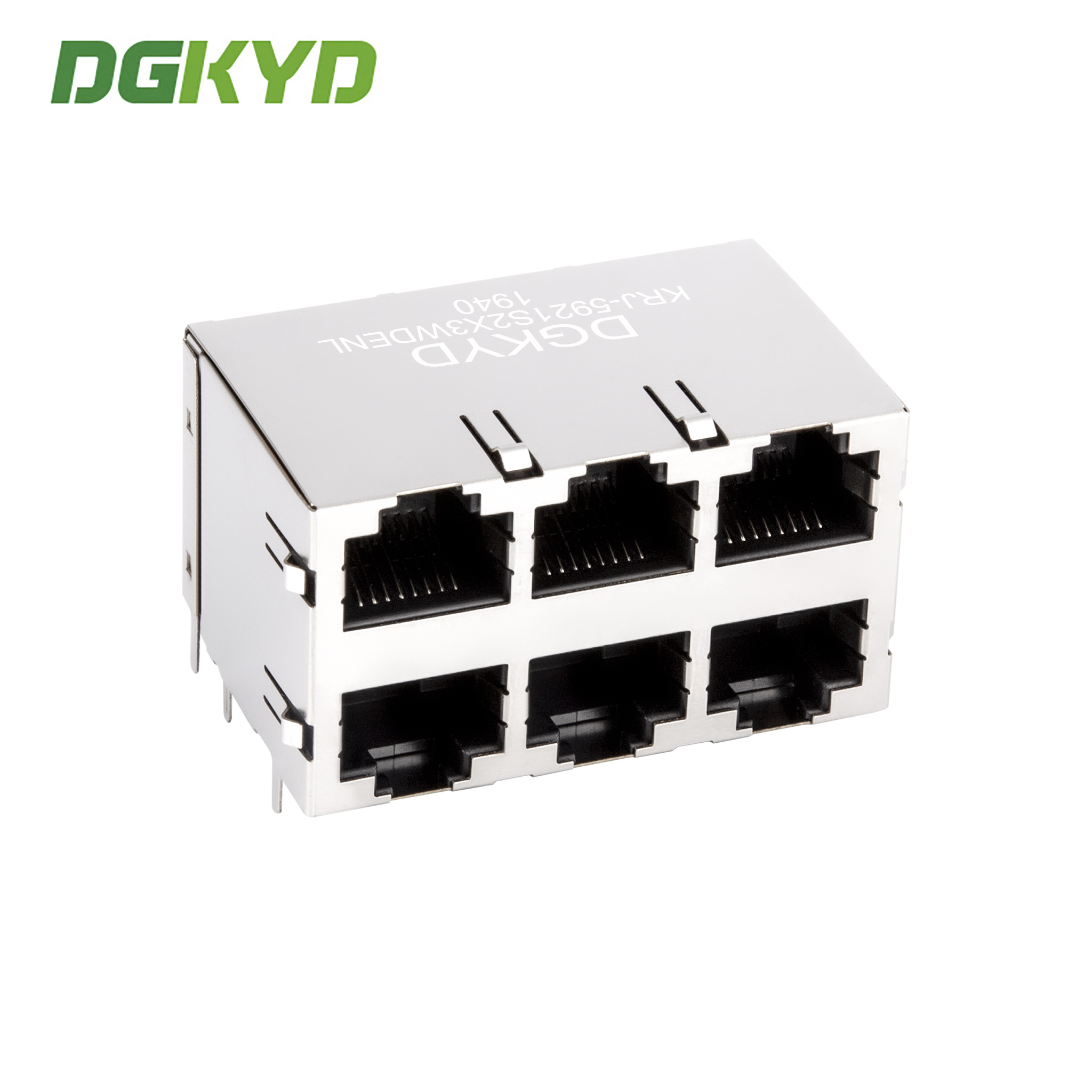

RJ45 Multi Port Connector Industrial Network Interface Network Port Socket 8P8C KRJ-5921S2X3WDENL

Product Description

RJ45 multi port connector industrial network interface network port socket 8P8C KRJ-5921S2X3WDENL

Product Specification Document

Parameters

Part Number	KRJ-5921S2X3WDENL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP/DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	2X3 Ports	Number of Positions	8
Jack Configuration	2X3	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
