10/100 BASE Ethernet RJ45 Modular Jack With Transformer and Through Hole Mount

contacto

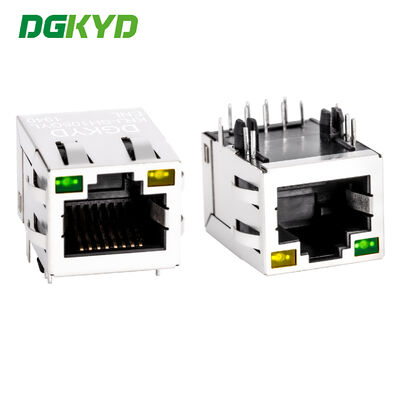

10/100 BASE Ethernet RJ45 Modular Jack With Transformer and Through Hole Mount

Quantidade de ordem mínima :	1 peça	Preço :	Please contact us to get the latest price.
Detalhes da embalagem :	Bandeja em caixa	Tempo de entrega :	10 dias
Termos de pagamento :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Habilidade da fonte :	100 mil peças/dia

Lugar de origem:	Dongguan da China	Marca:	DGKYD
Certificação:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número do modelo:	KRJ-SH105GYLENL
Documento:	KRJ-SH105GYLENL.pdf

Informação detalhada
Tipo de tomada modular:	RJ45 com Magnetics integrado	Velocidade:	Gato 5
Trava:	Acima	Estilo de montagem:	Através do buraco
OEM/ODM:	Sim	Tipo:	Multi pino rj45 magjack
Gênero:	RJ45 RECEITO	Nome do produto:	Jack modular RJ45
Temperatura de operação:	-40°C~+85°C	Temperatura de armazenamento:	-40°C~+85°C
Opção LED:	Verde/amarelo

Descrição de produto

10/100 BASE Ethernet Cable Connection Female Jack 8P8C RJ45 With Transformer KRJ-SH105GYLENL

Part Number: KRJ-SH105GYLENL

Product Documentation

Technical Parameters

Part Number	KRJ-SH105GYLENL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Port	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

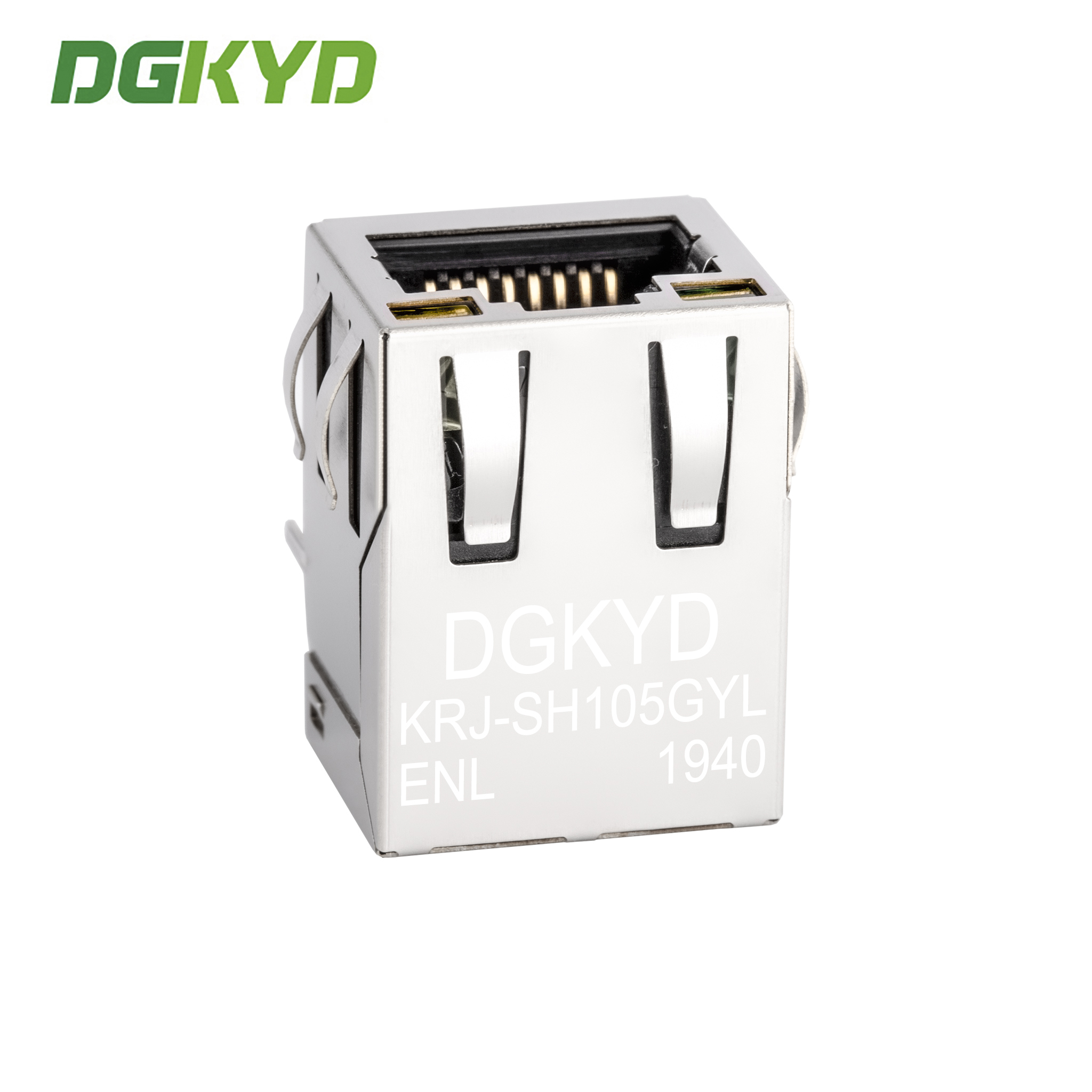

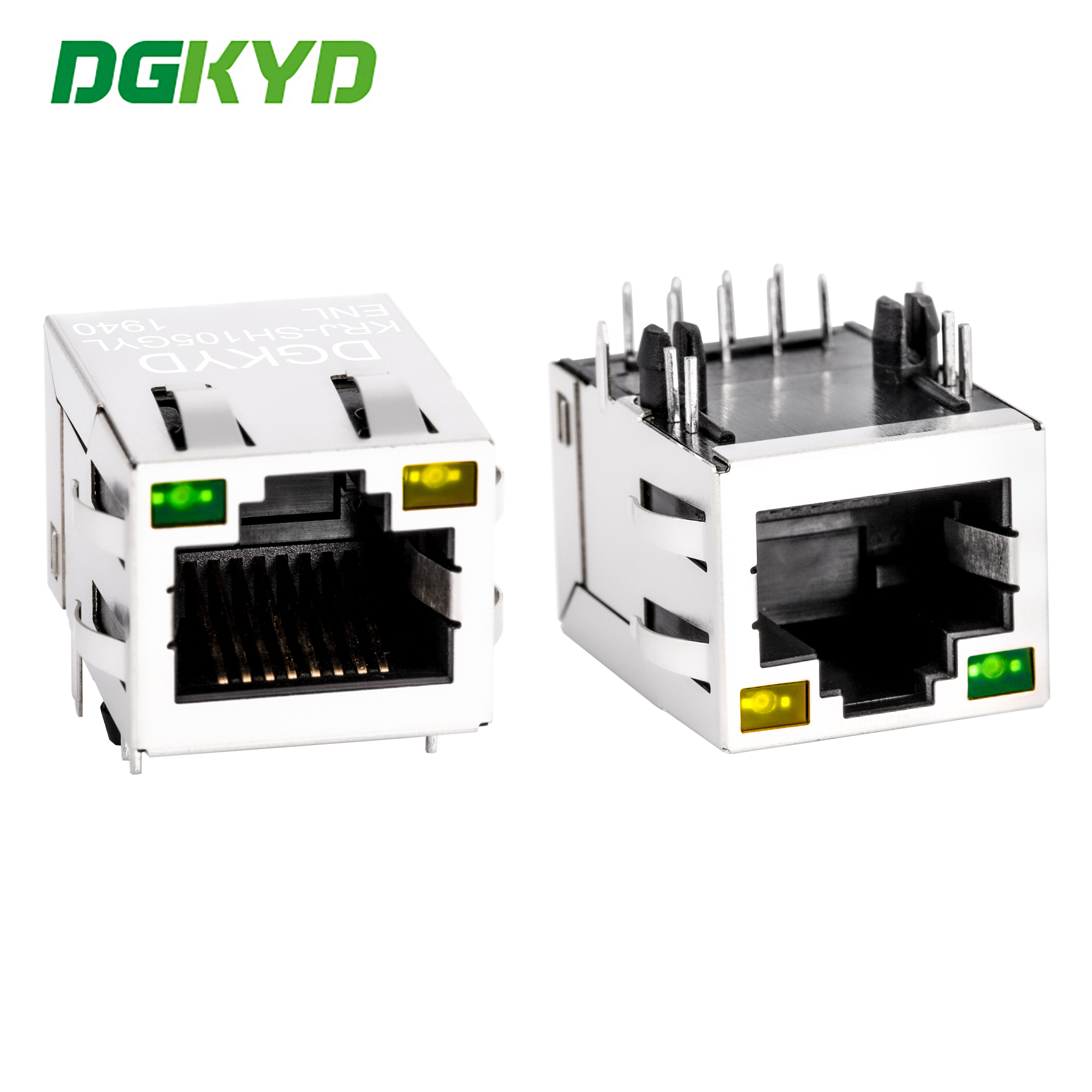

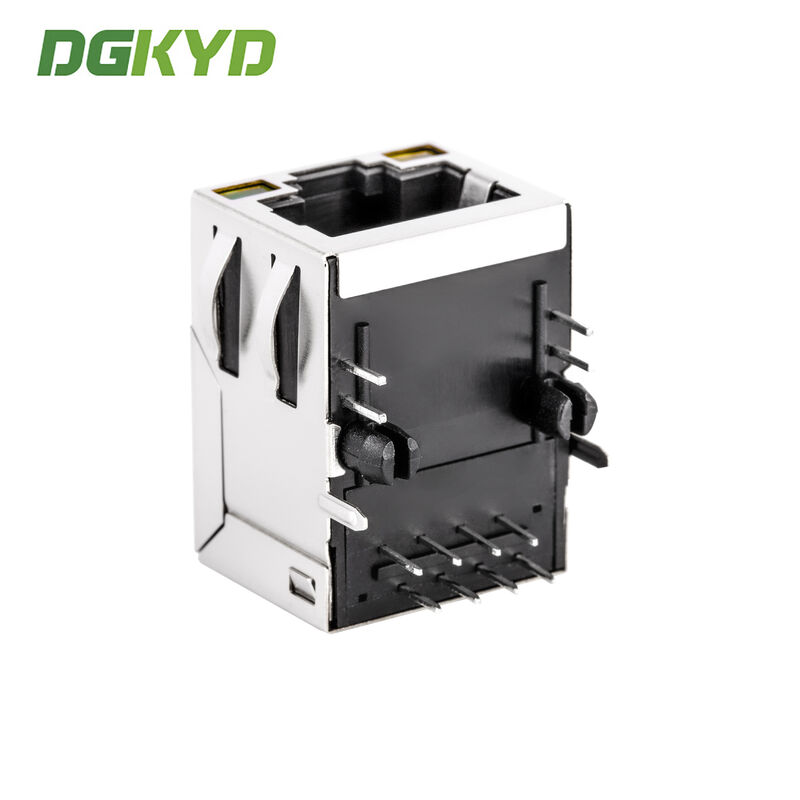

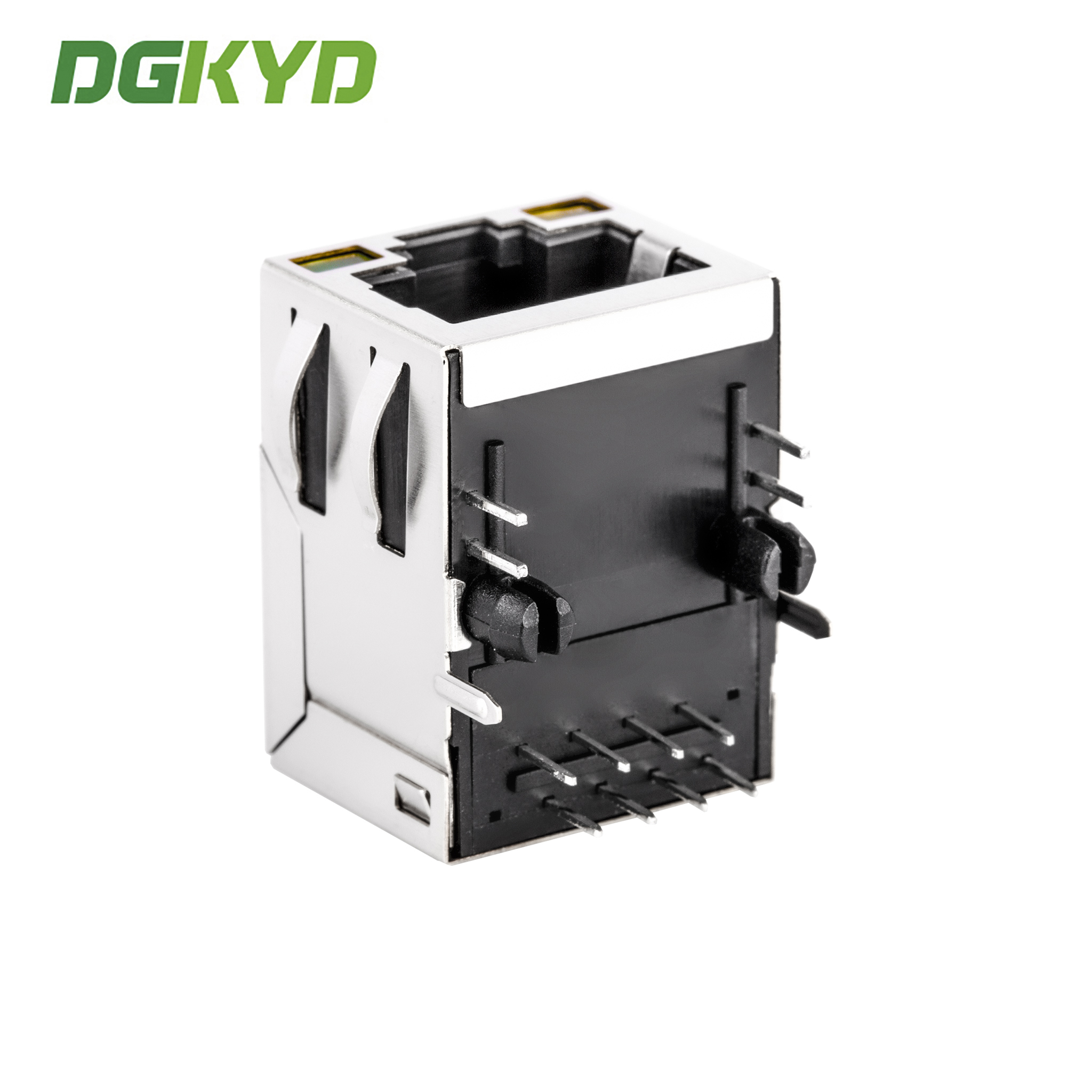

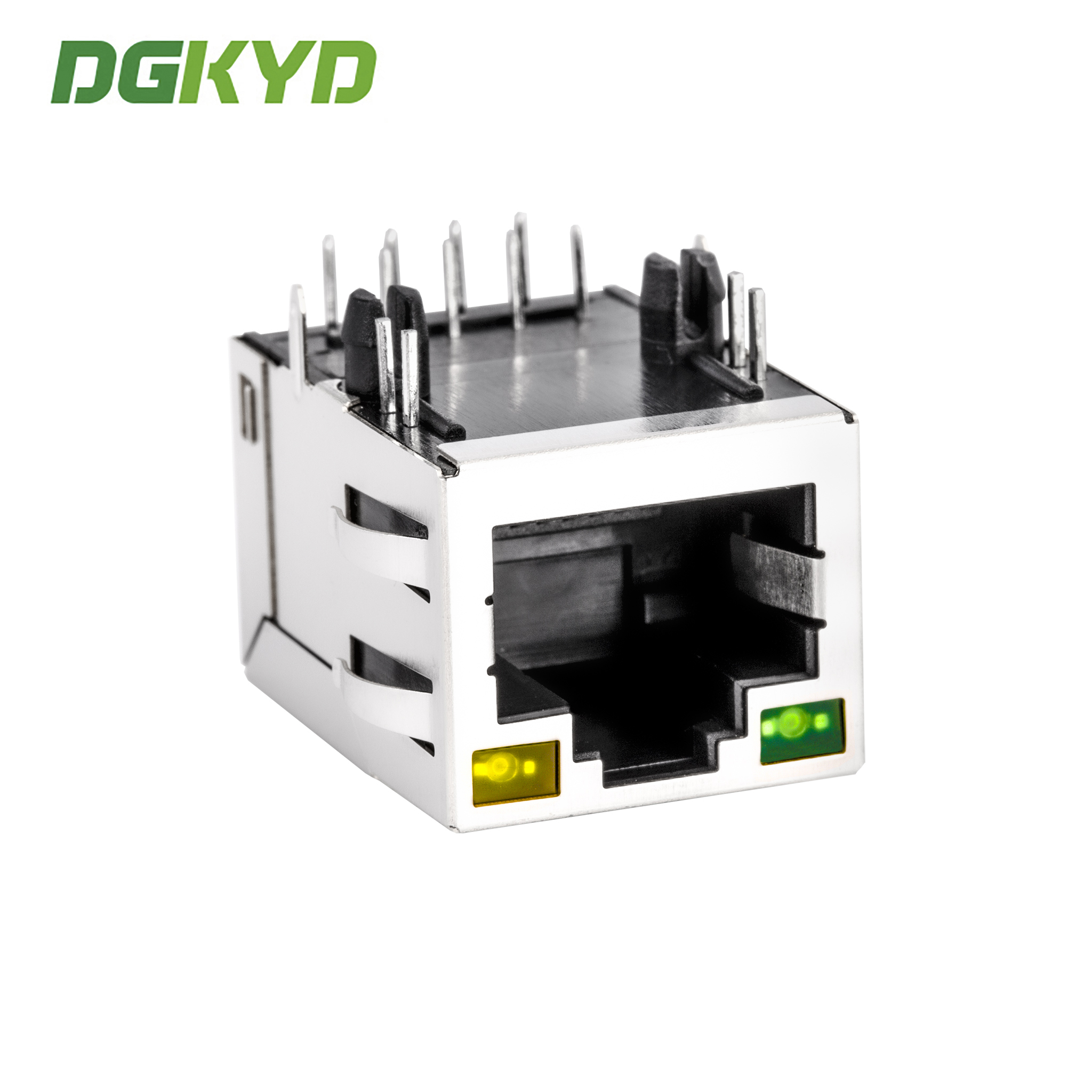

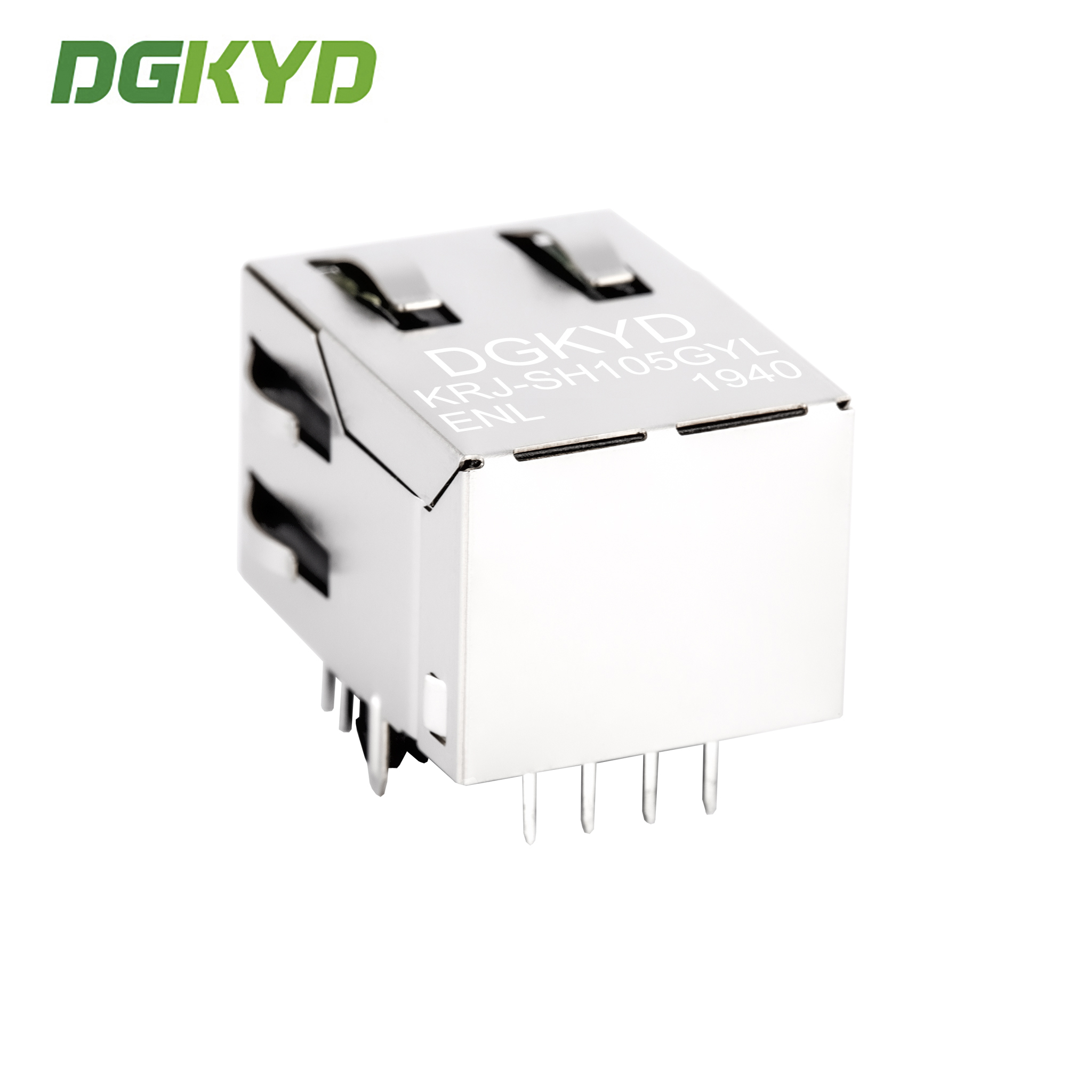

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.

Applications

Integrated RJ45 connector mainly used for:

10/100/1000M net card, PCMCIA net card, USB Hub
Network switch, router, fiber optic transceivers
Optical transceiver, IP phone, internet set-top box
Internet camera, net bridge, computer
Telecommunication, MODEM, HomePNA, DSL/ADSL and more
