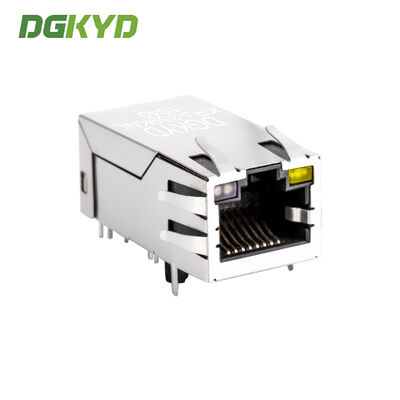

RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL

Quantidade de ordem mínima : 1 peça Preço : Please contact us to get the latest price.
Detalhes da embalagem : Bandeja em caixa Tempo de entrega : 10 dias
Termos de pagamento : T/T,D/P,D/A,L/C,Western Union,MoneyGram Habilidade da fonte : 100 mil peças/dia
Lugar de origem: Dongguan da China Marca: DGKYD
Certificação: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Número do modelo: KRJ-339KNL

Informação detalhada

Aplicativo: fibra óptica, câmera IP, DVR, DSL, modem, wifi etc Recurso: Porta de rede RJ45 blindada
OEM/ODM: Sim tipo: Multi pino rj45 magjack
Gênero: RJ45 RECEITO Nome do produto: Jack modular RJ45
Chapeamento: GLOD PLATING 6U/15U/30U/50U Cor do LED: Verde/Laranja-amarelo
Material de habitação: PRETO DE PBT Temperatura de operação: -40°C~+85°C
Temperatura de armazenamento: -40°C~+85°C

Descrição de produto

RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL
Part Number: KRJ-339KNL
Product Documentation
KRJ-339KNL.pdf
Technical Parameters
Part Number KRJ-339KNL Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Green/Orange-Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Single Port Number of Positions 12
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
Product Images

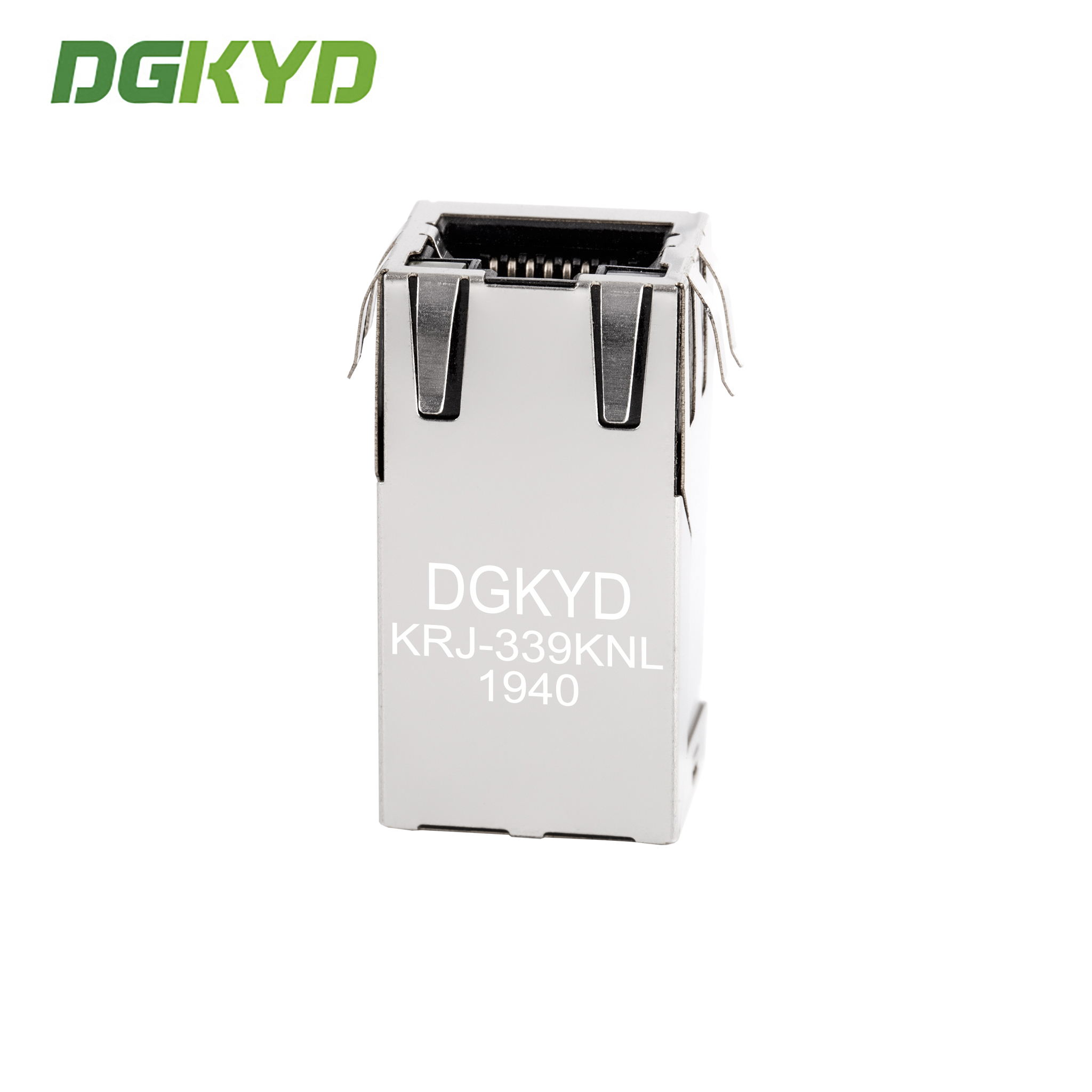

RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 0

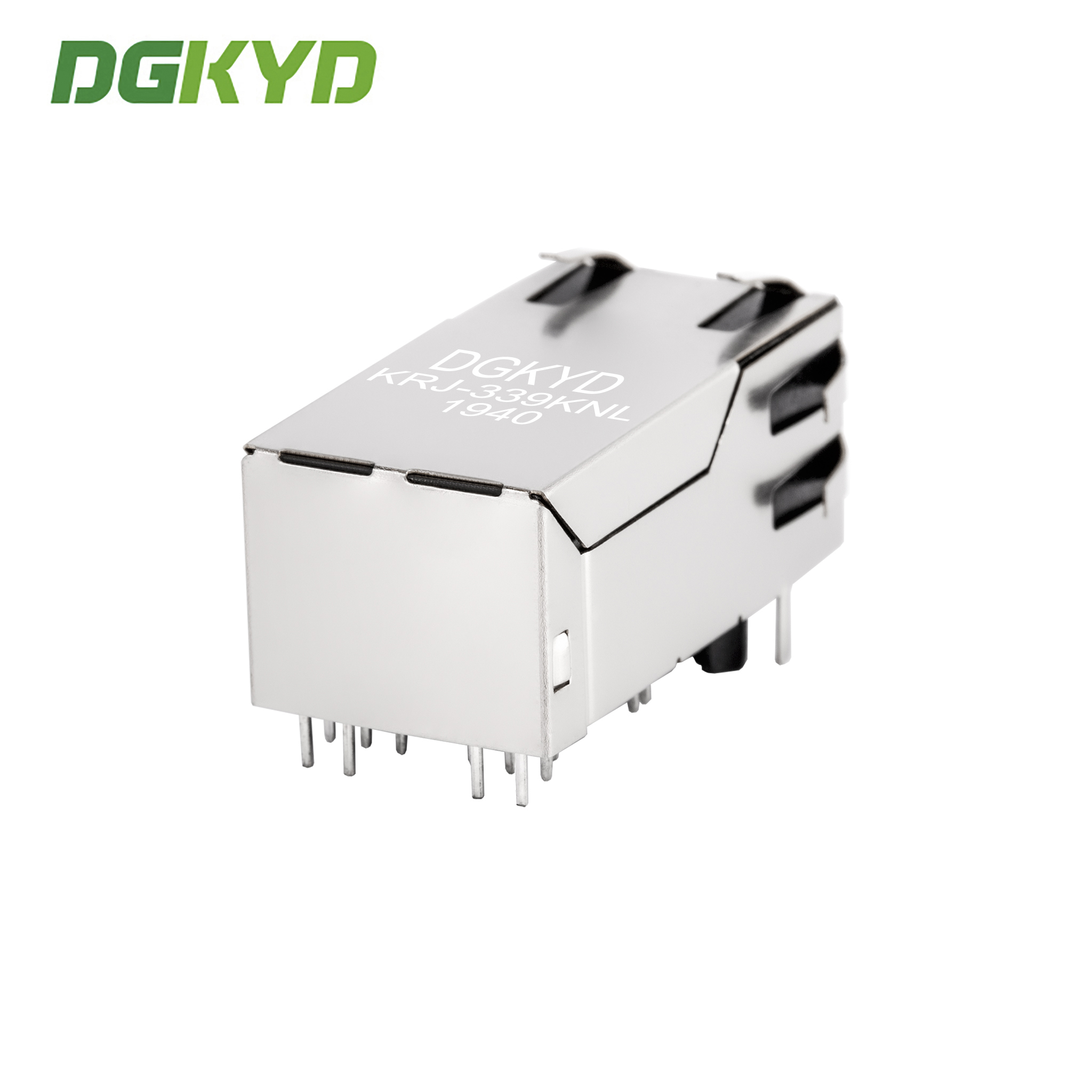

RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 1

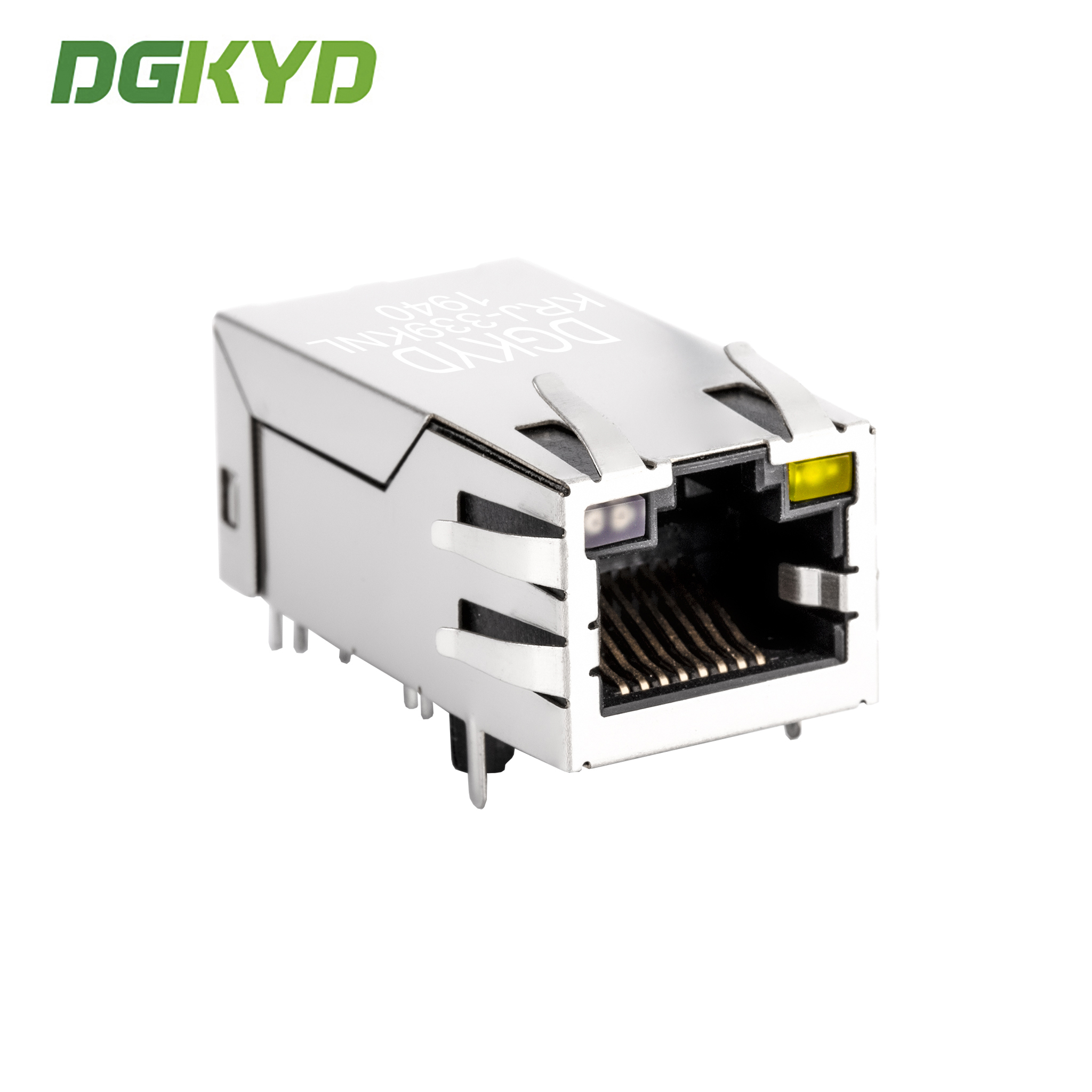

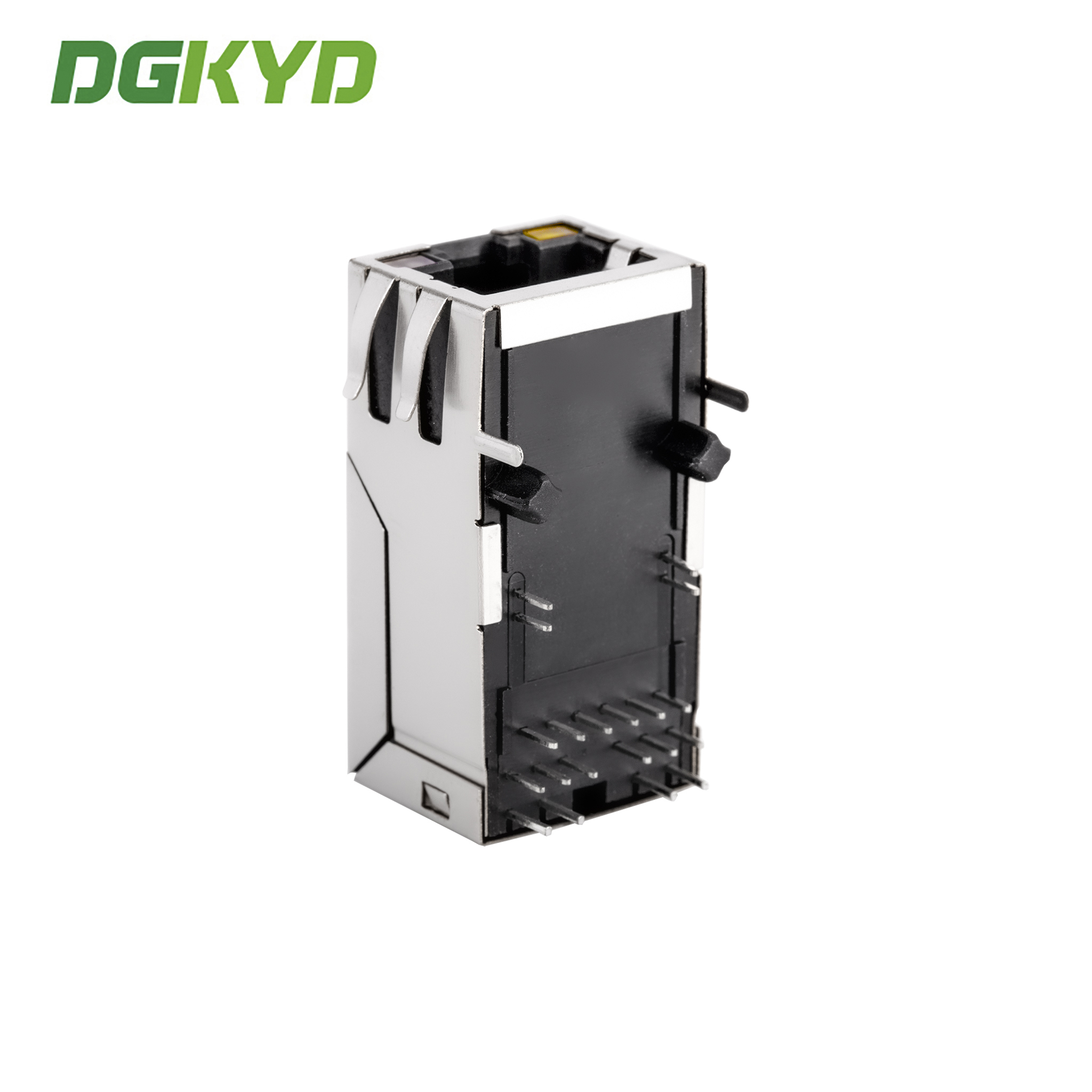

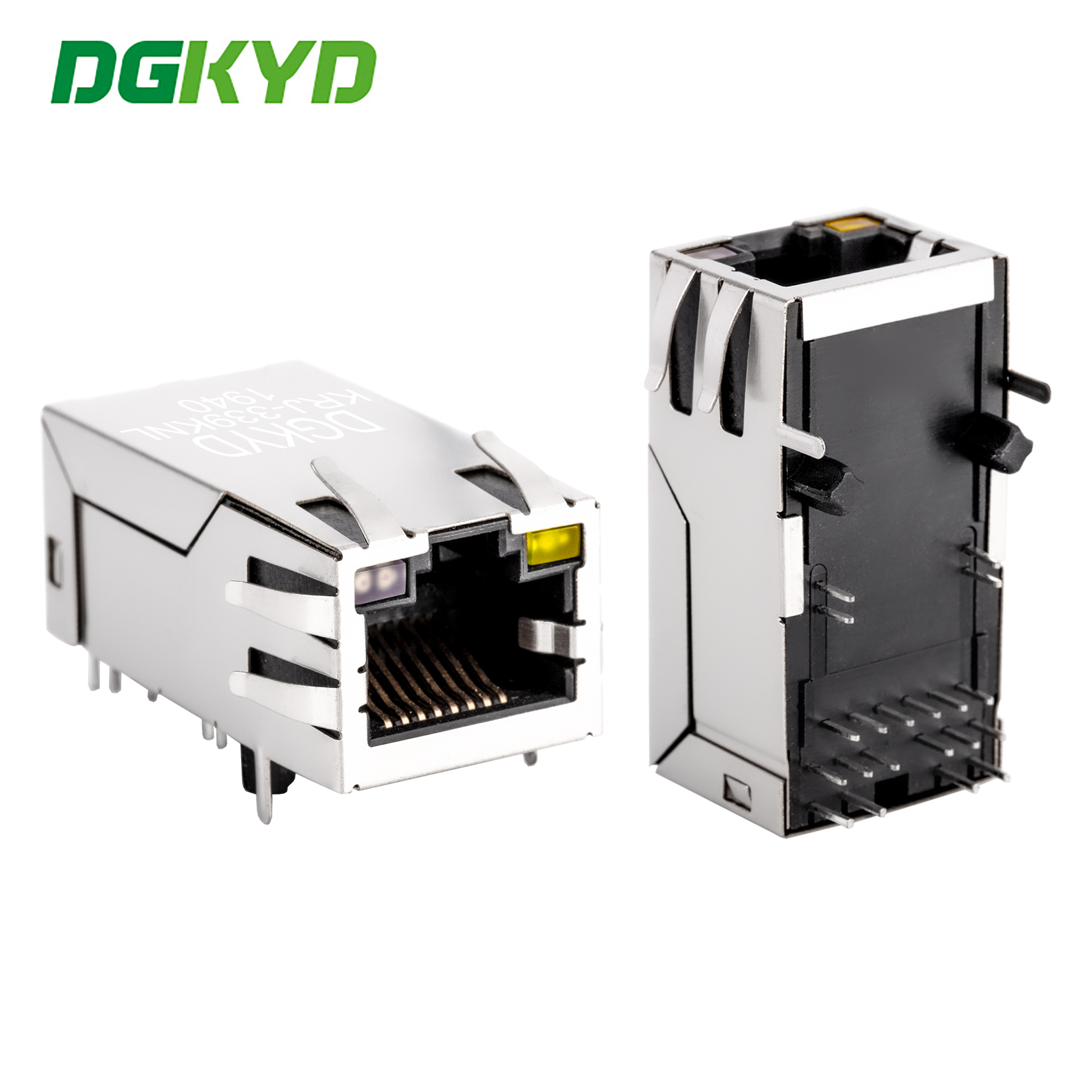

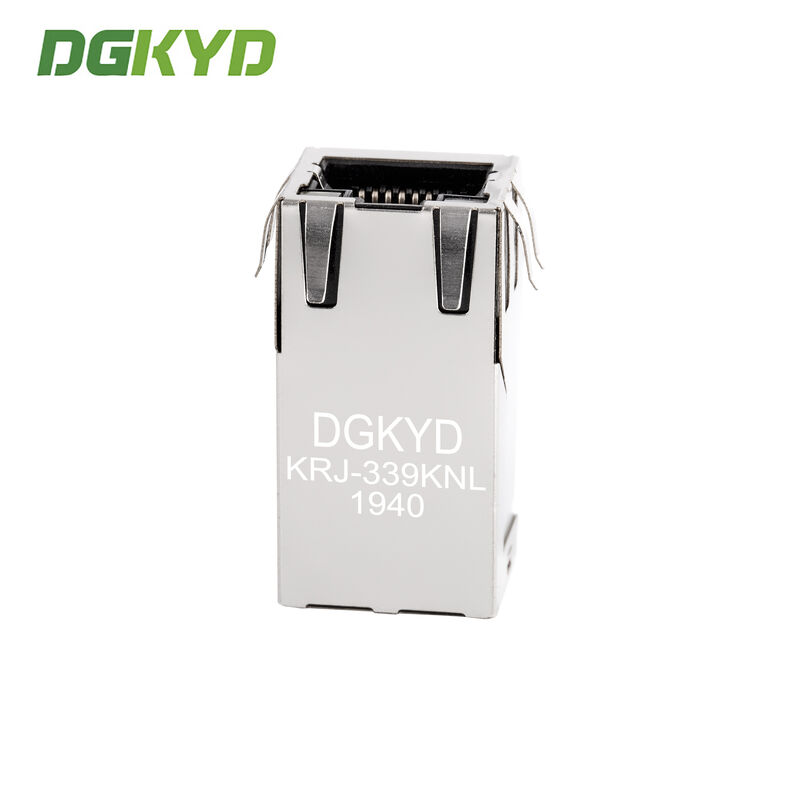

  RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 2 RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 3 RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 4 RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 5 RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 6 RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 7 RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 8 RJ45 Gigabit Ethernet port with POE power supply 33 long with light strip shielded connector KRJ-339KNL 9
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
