RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB

contacto

RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB

Quantidade de ordem mínima :	1 peça	Preço :	Please contact us to get the latest price.
Detalhes da embalagem :	Bandeja em caixa	Tempo de entrega :	10 dias
Termos de pagamento :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Habilidade da fonte :	100 mil peças/dia

Lugar de origem:	Dongguan da China	Marca:	DGKYD
Certificação:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número do modelo:	DGKYD811Q008FN4A10DB
Documento:	DGKYD811Q008FN4A10DB.pdf

Informação detalhada
Nome do produto:	Conector mesmo do perfil baixo RJ45	Desempenho:	1000BASE-TX
LIDERADO:	Verde-alaranjado/amarelo	Porta:	Portos únicos
Estilo de montagem:	MERGULHAR	Escudo:	fósforo níquel de cobre
OEM/ODM:	Sim	Número de posições/contatos:	8p12c (RJ45, Ethernet)
Arremesso de ouro nos pinos de contato:	30U	Temperatura de armazenamento:	-40°C~+85°C
Temperatura operacional:	-40°C~+85°C
Destacar:	RJ45 single port connector with LED , CAT5 Gigabit integrated filter connector , RJ45 with transformer and top elastic

Descrição de produto

RJ45 Single Port Connector with Top Elastic CAT5 Gigabit Integrated Filter with LED Light

Part Number: DGKYD811Q008FN4A10DB

Product Documentation

Download Product Specification Document (PDF)

Technical Parameters

Part Number	DGKYD811Q008FN4A10DB	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green-Orange/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Port	Number of Positions	12
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 30u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

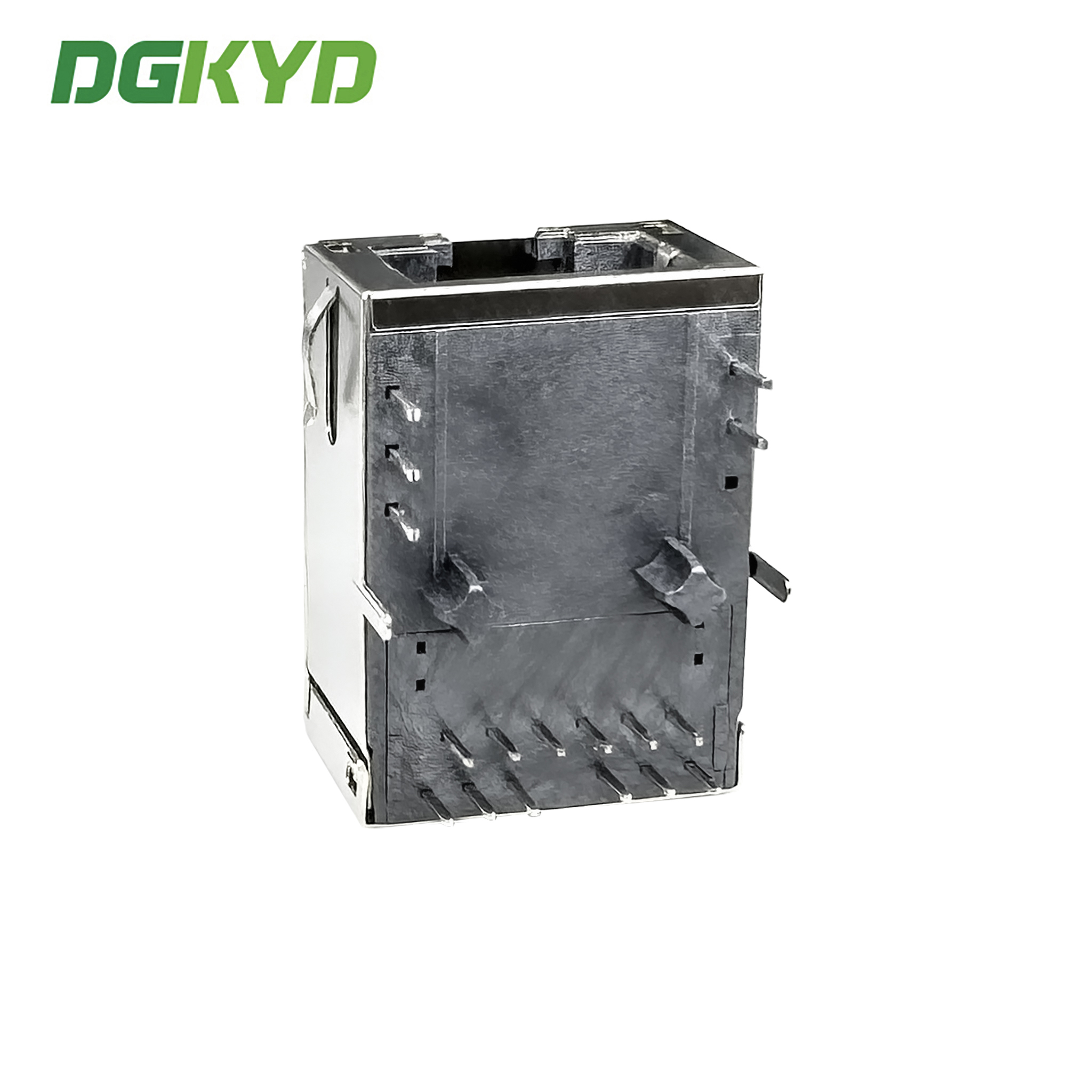

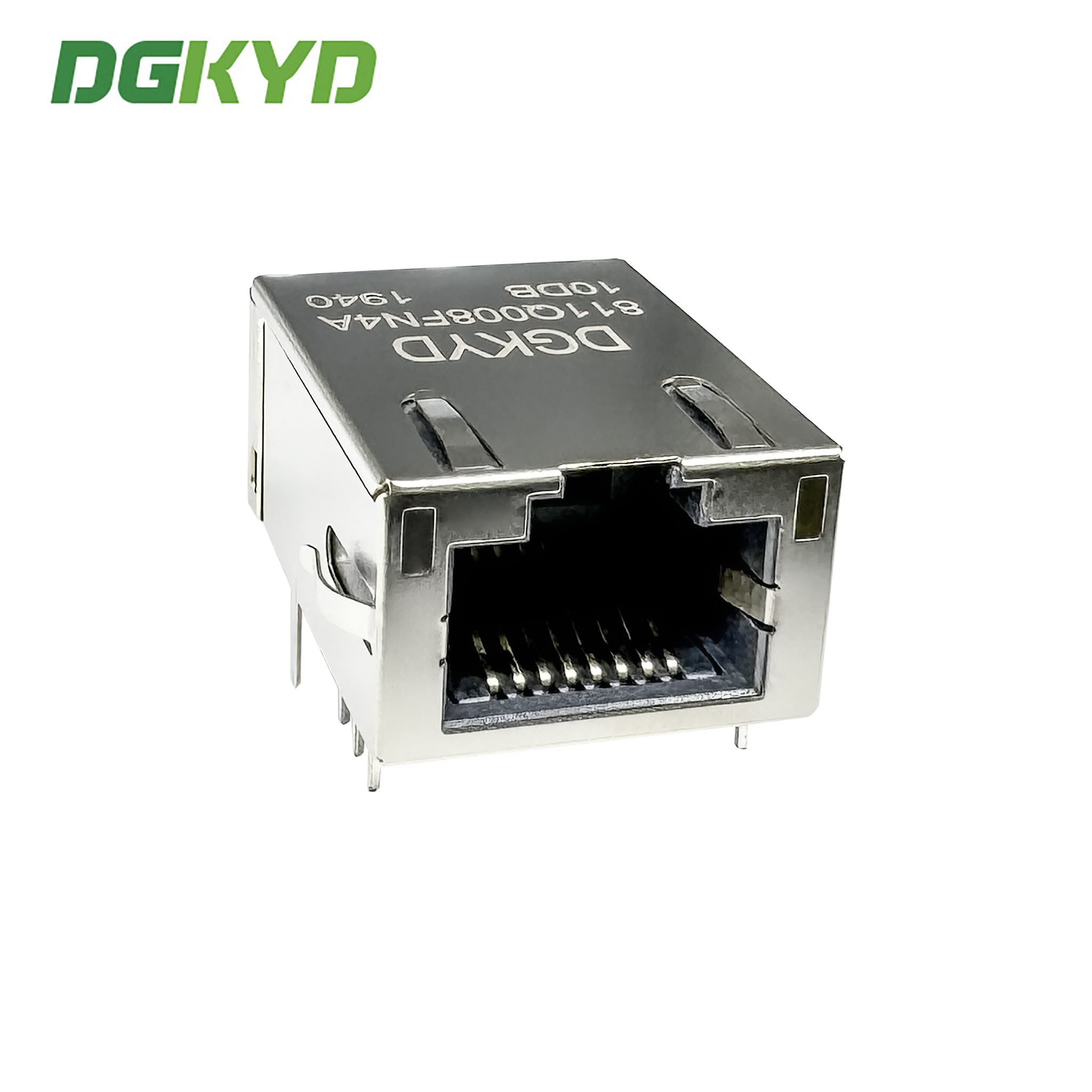

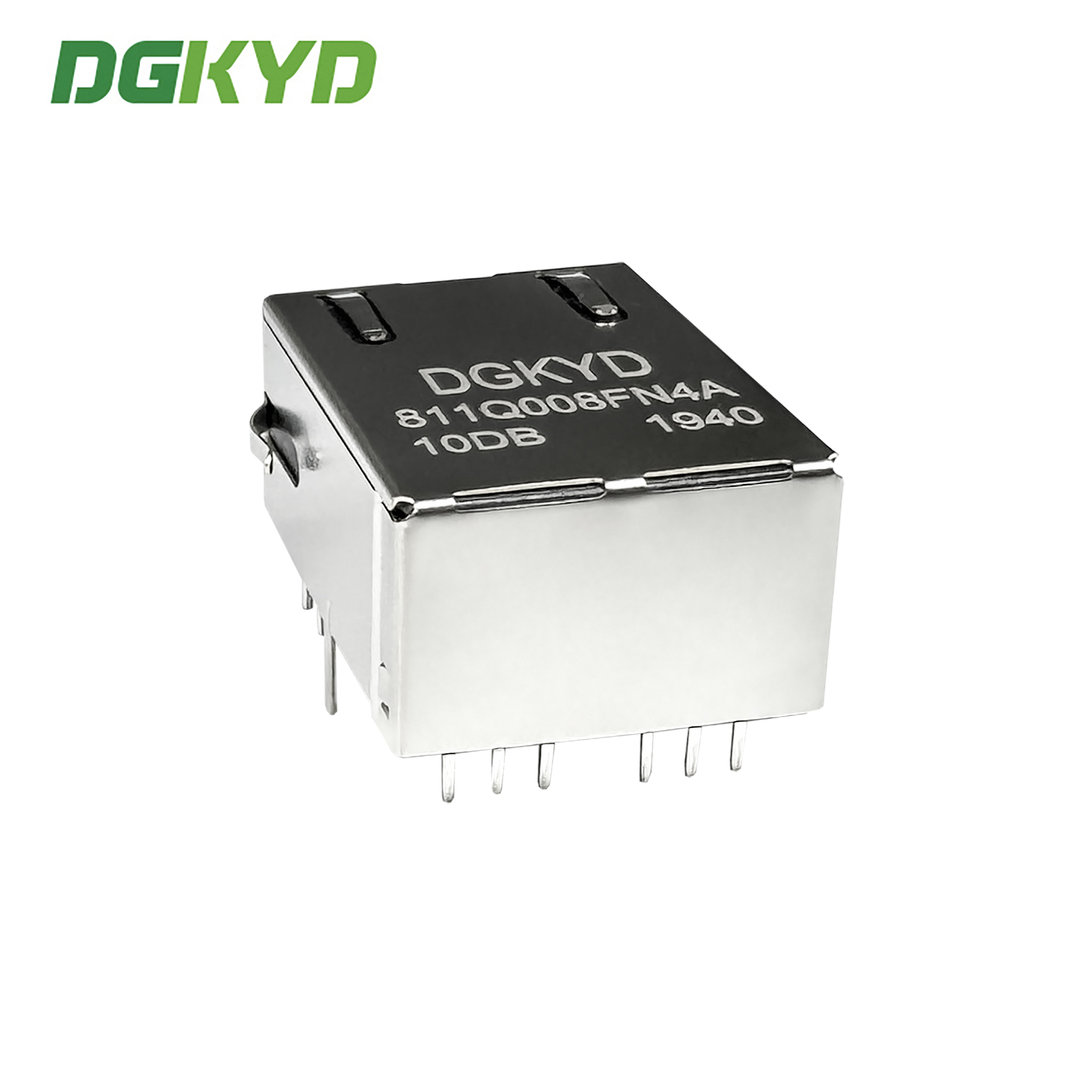

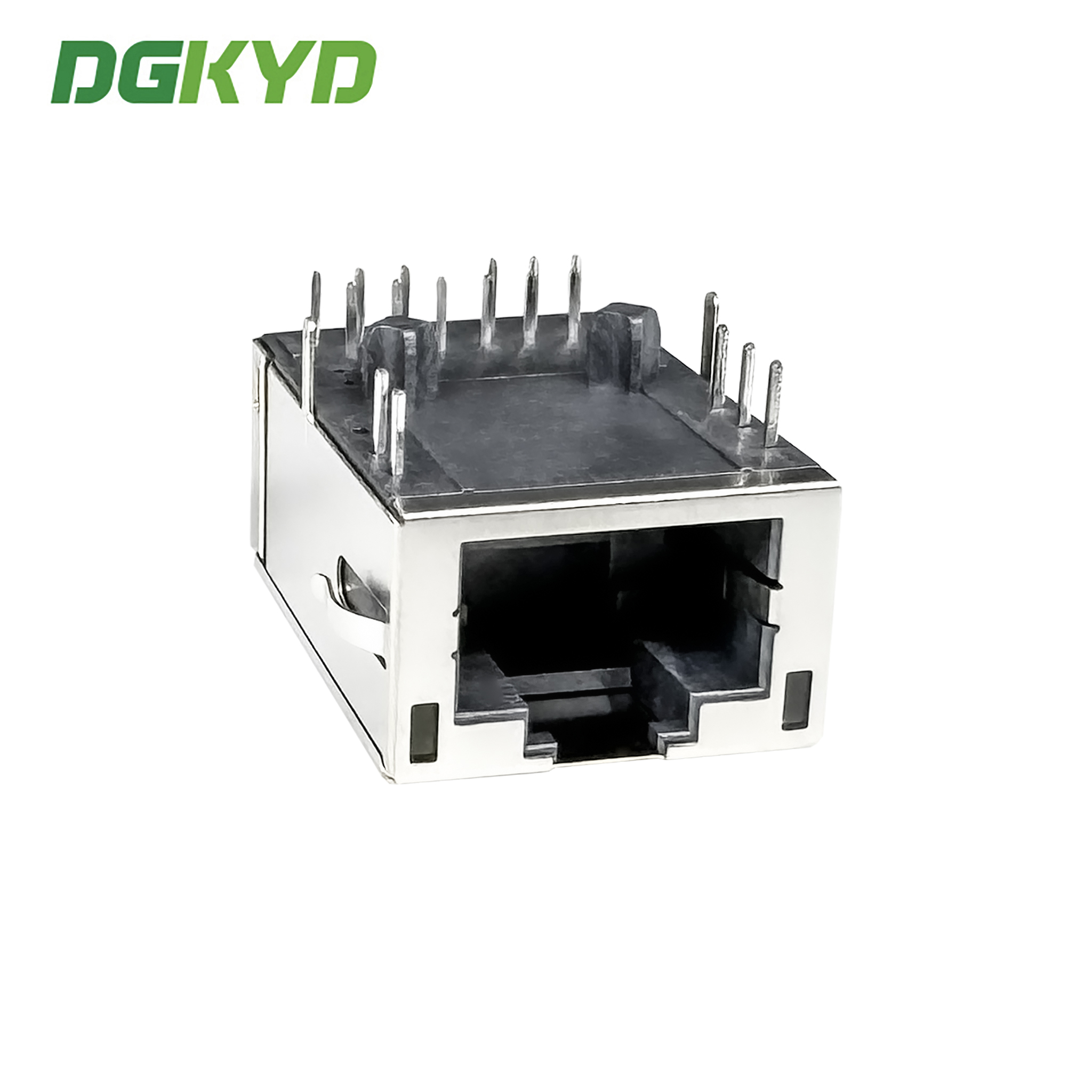

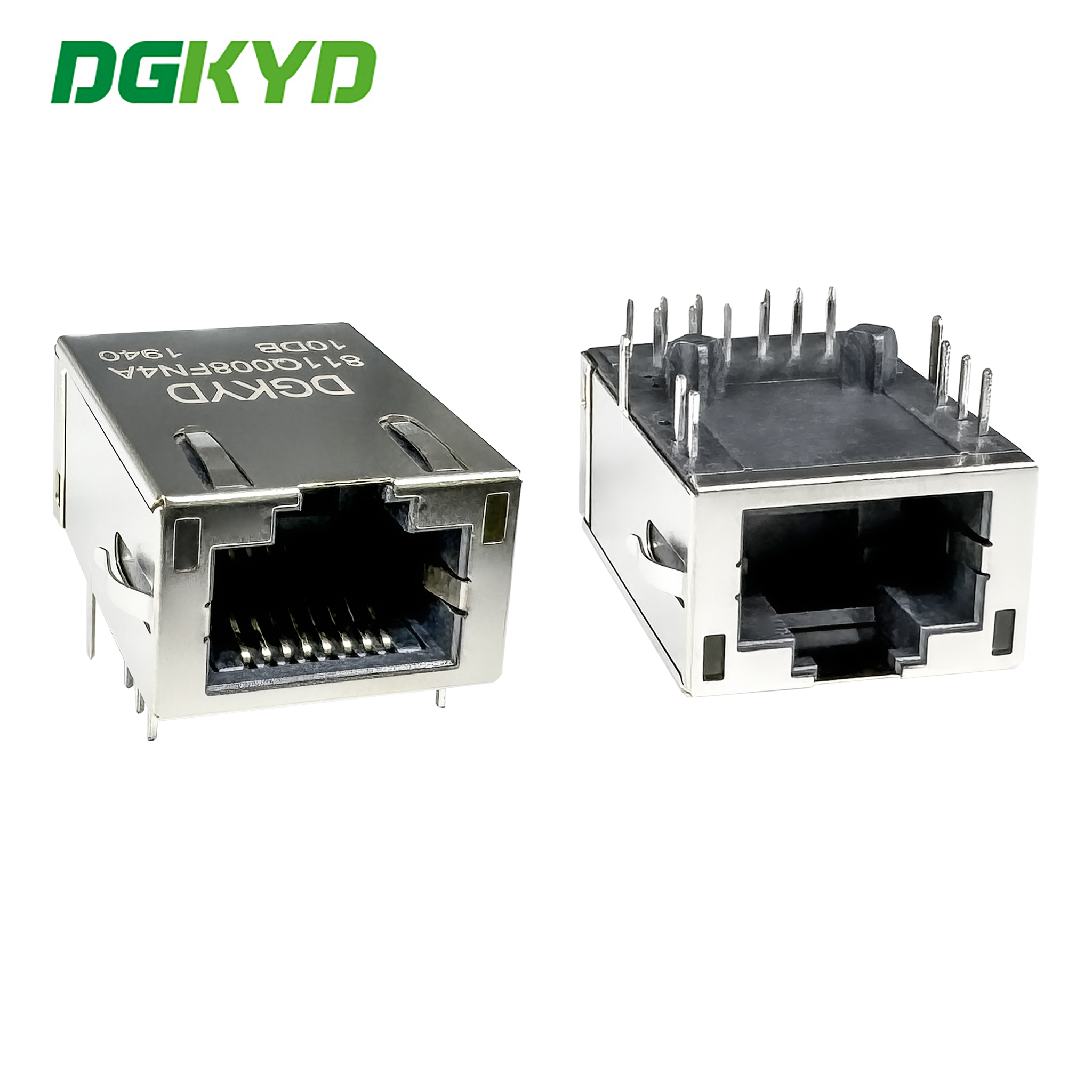

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
