RJ45 Ethernet connector with POE power supply industrial Ethernet socket DGKYD211B039HWA4DP

contacto

RJ45 Ethernet connector with POE power supply industrial Ethernet socket DGKYD211B039HWA4DP

Quantidade de ordem mínima :	Negociação	Preço :	Please contact us to get the latest price.
Detalhes da embalagem :	Bandeja 1080 em caixa	Tempo de entrega :	10 dias
Termos de pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Habilidade da fonte :	100 mil peças/dia

Lugar de origem:	Dongguan da China	Marca:	DGKYD
Certificação:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número do modelo:	DGKYD211B039HWA4DP

Informação detalhada
Tipo de produto:	RJ45	Método de encapsulamento:	Pacote único em linha
Estilo de montagem em PCB:	MERGULHAR	forma:	Retângulo
Escudo:	Latão	Número de pinos:	10
Número de núcleos:	8	Dimensão (mm):	15,9521,3513,6
Arremesso de ouro nos pinos de contato:	6U	Temperatura operacional:	- 40 ℃ ~ 85 ℃
Temperatura de armazenamento:	- 40 ℃ ~ 85 ℃
Destacar:	RJ45 shielded connector with POE , industrial Ethernet socket connector , RJ45 Ethernet connector waterproof

Descrição de produto

RJ45 Ethernet Connector with POE Power Supply Industrial Ethernet Socket DGKYD211B039HWA4DP

Product Overview

RJ45 Ethernet connector with POE power supply industrial Ethernet socket DGKYD211B039HWA4DP

Technical Specifications

Specification	Details
Part Number	DGKYD211B039HWA4DP
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	Without LED
LED Color	No
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	10
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

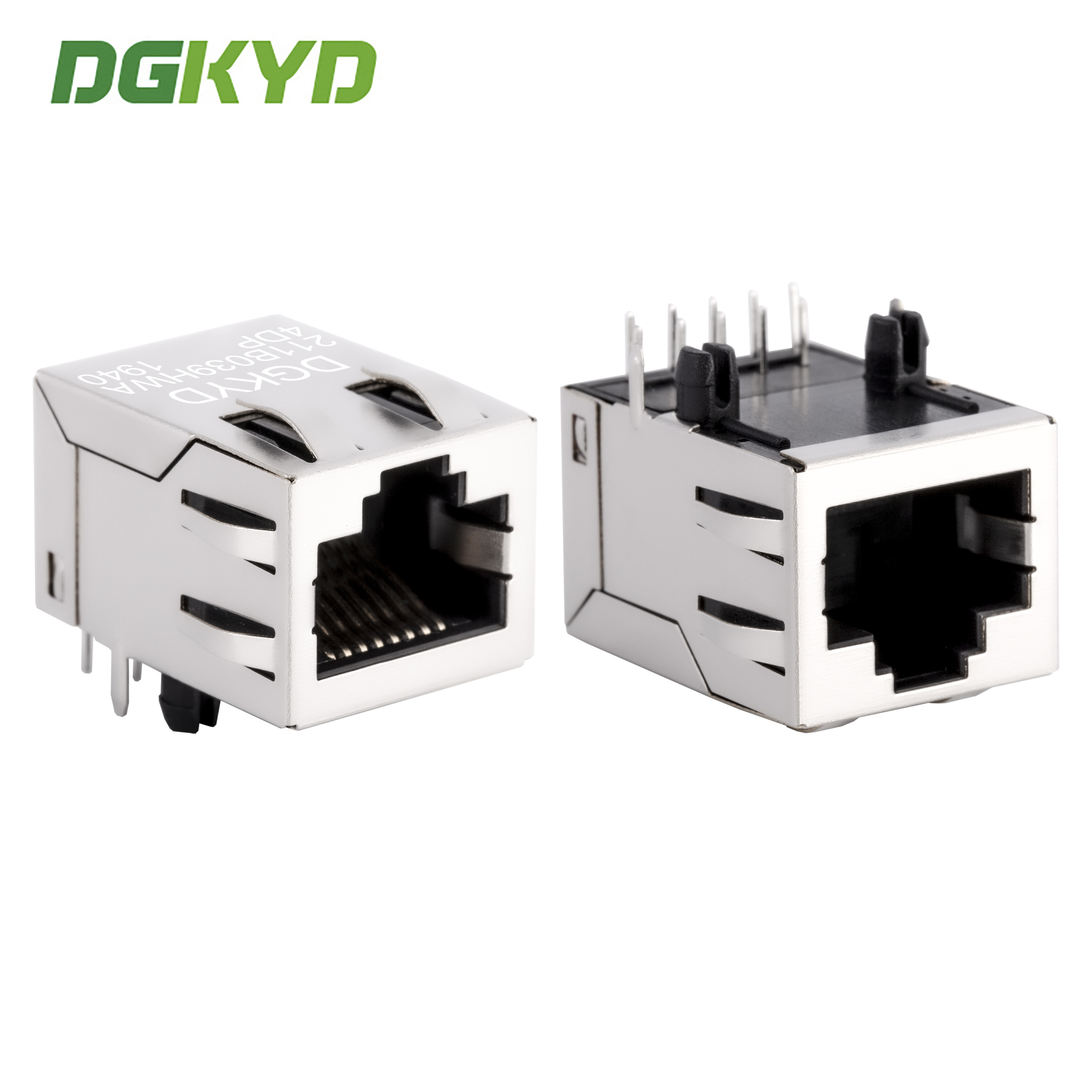

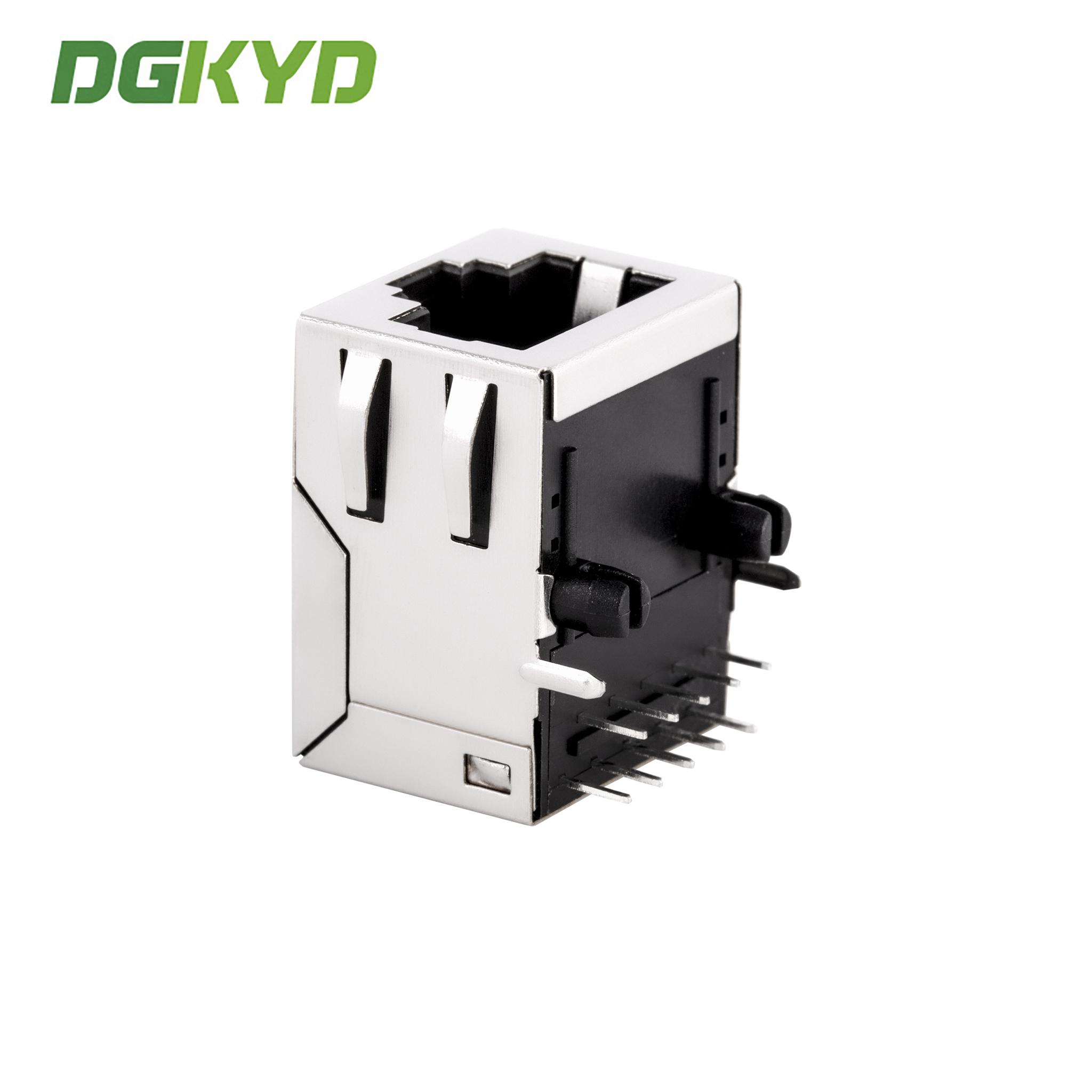

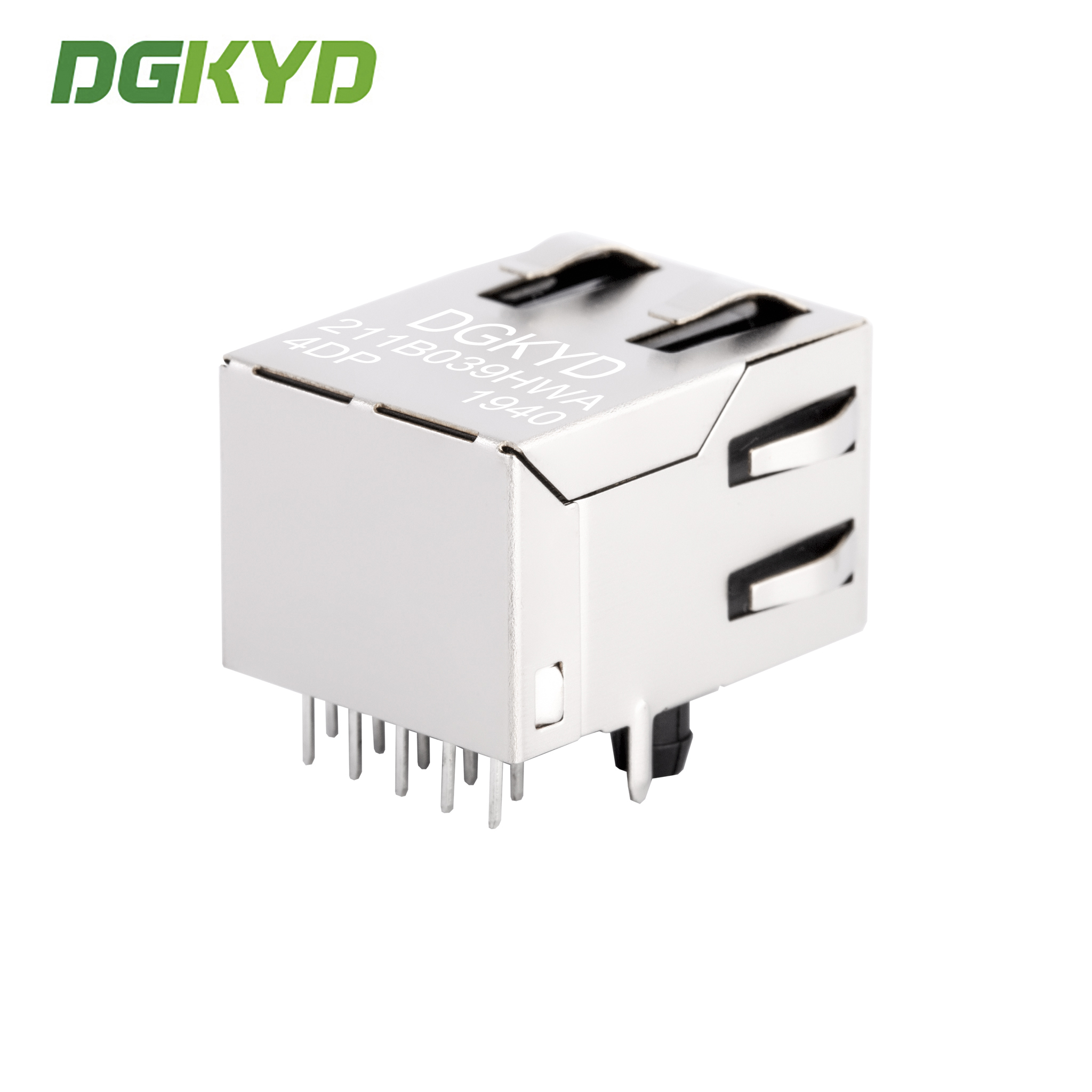

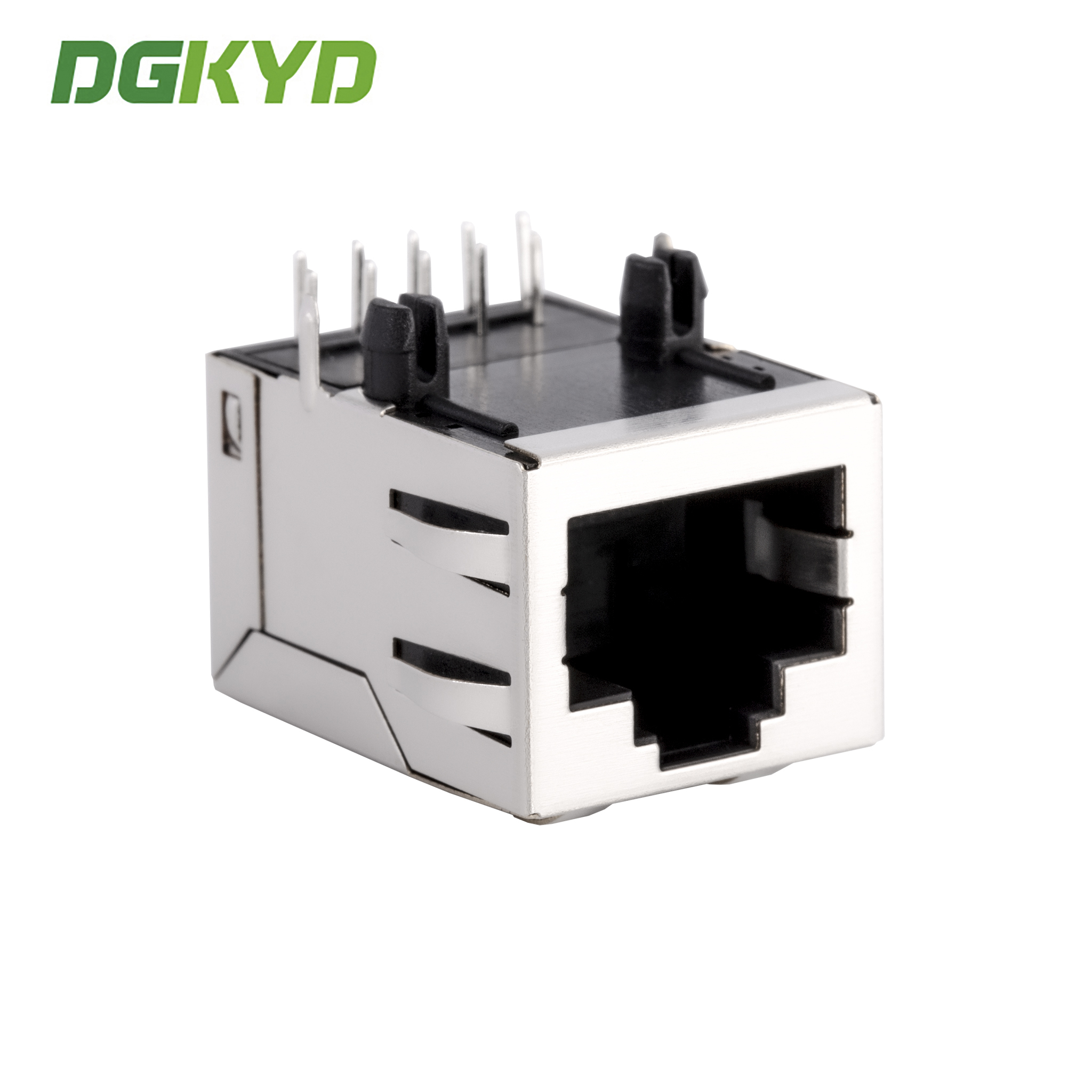

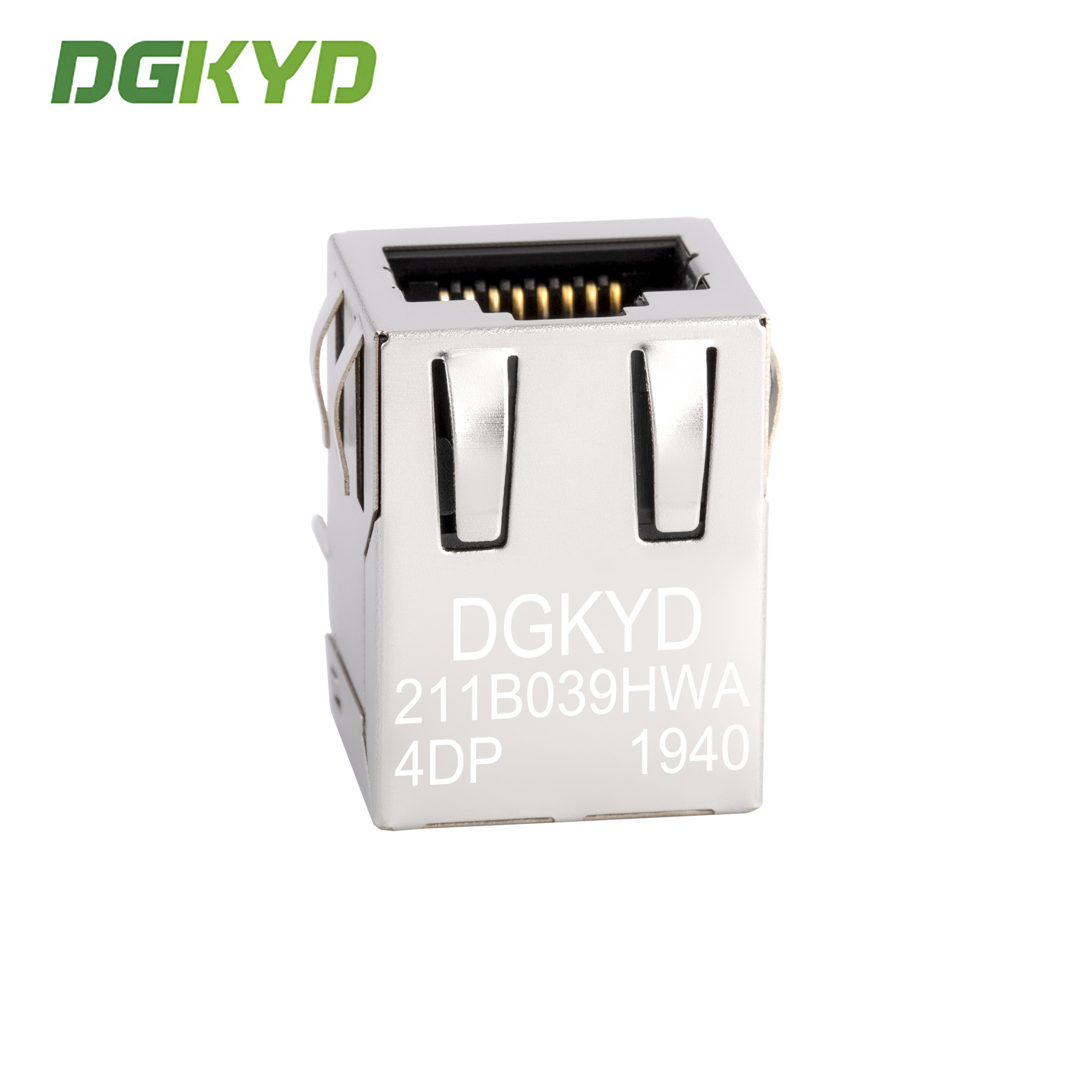

Product Images

Manufacturer Information

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
