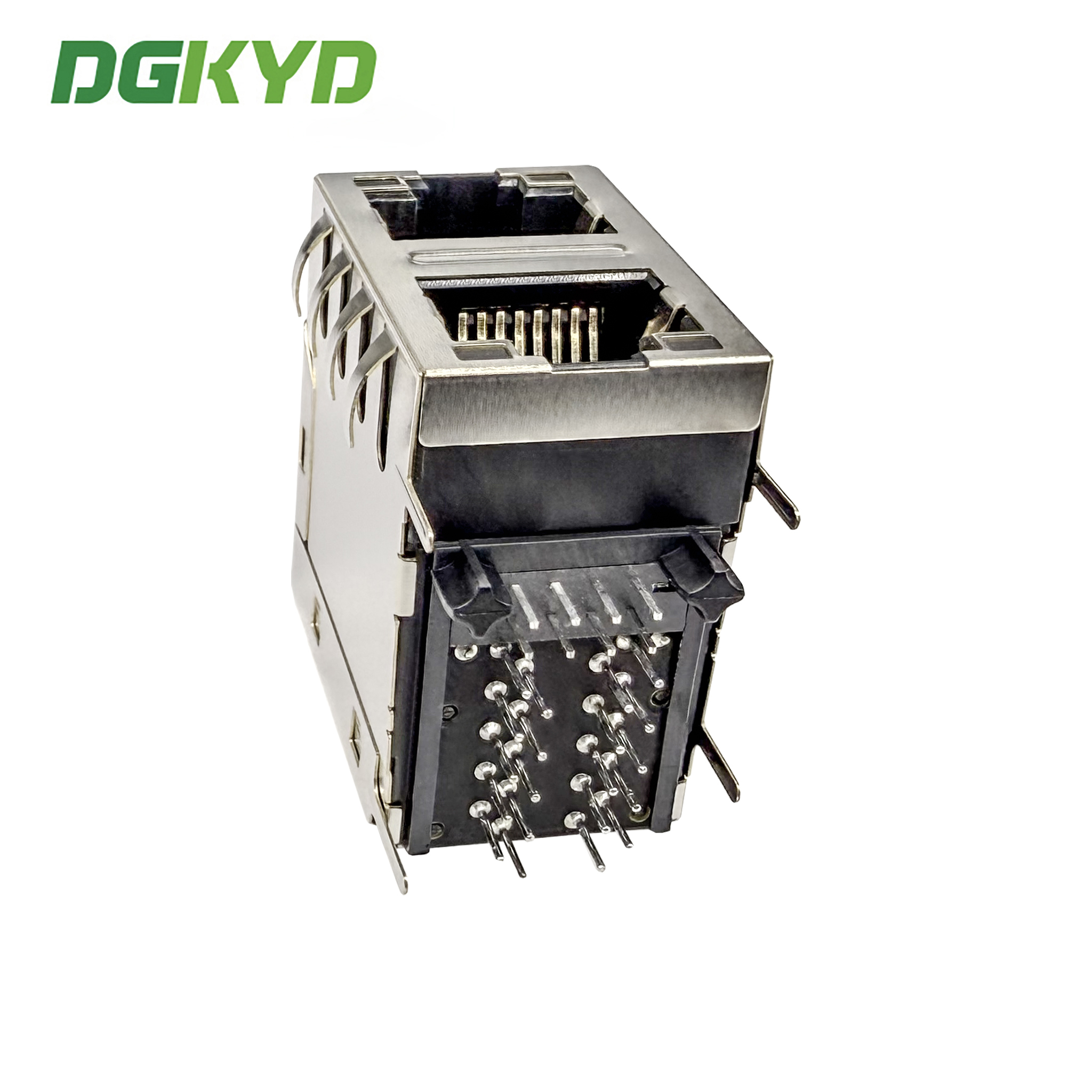

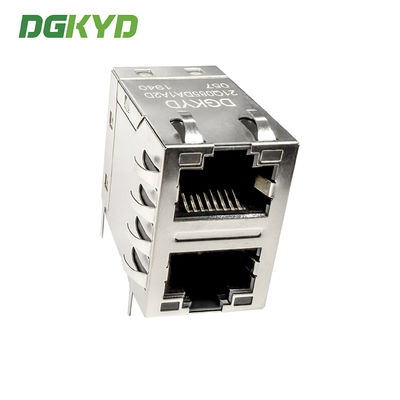

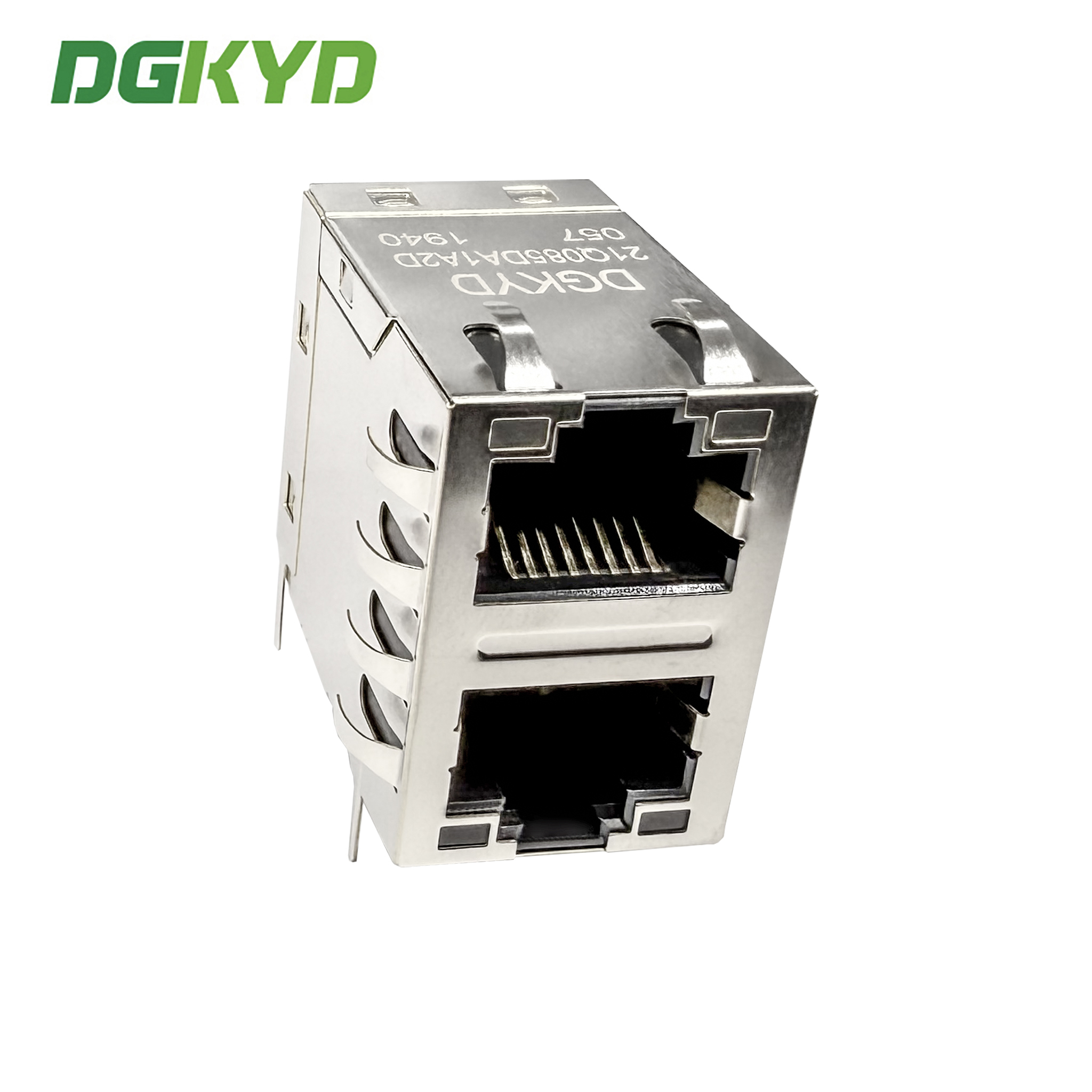

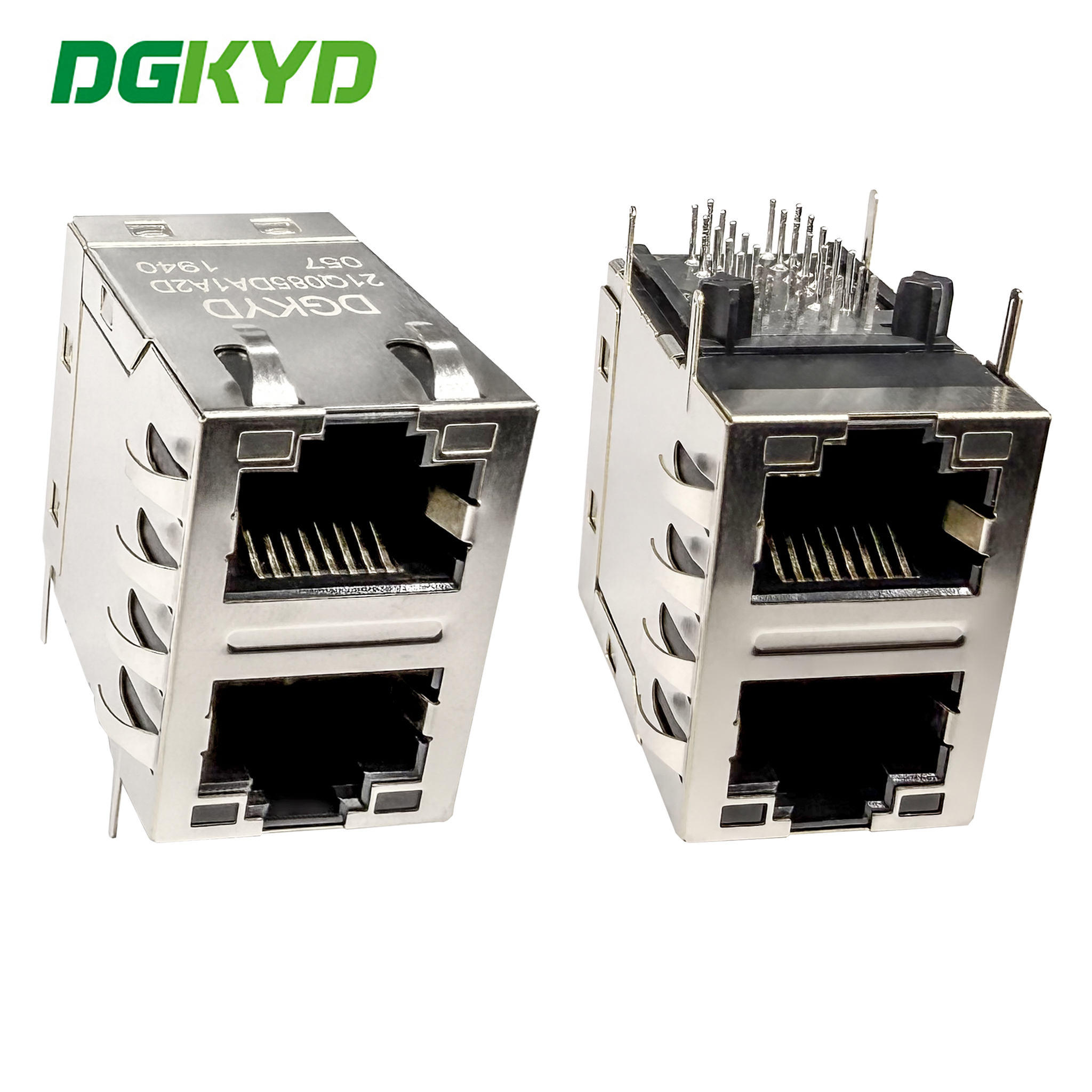

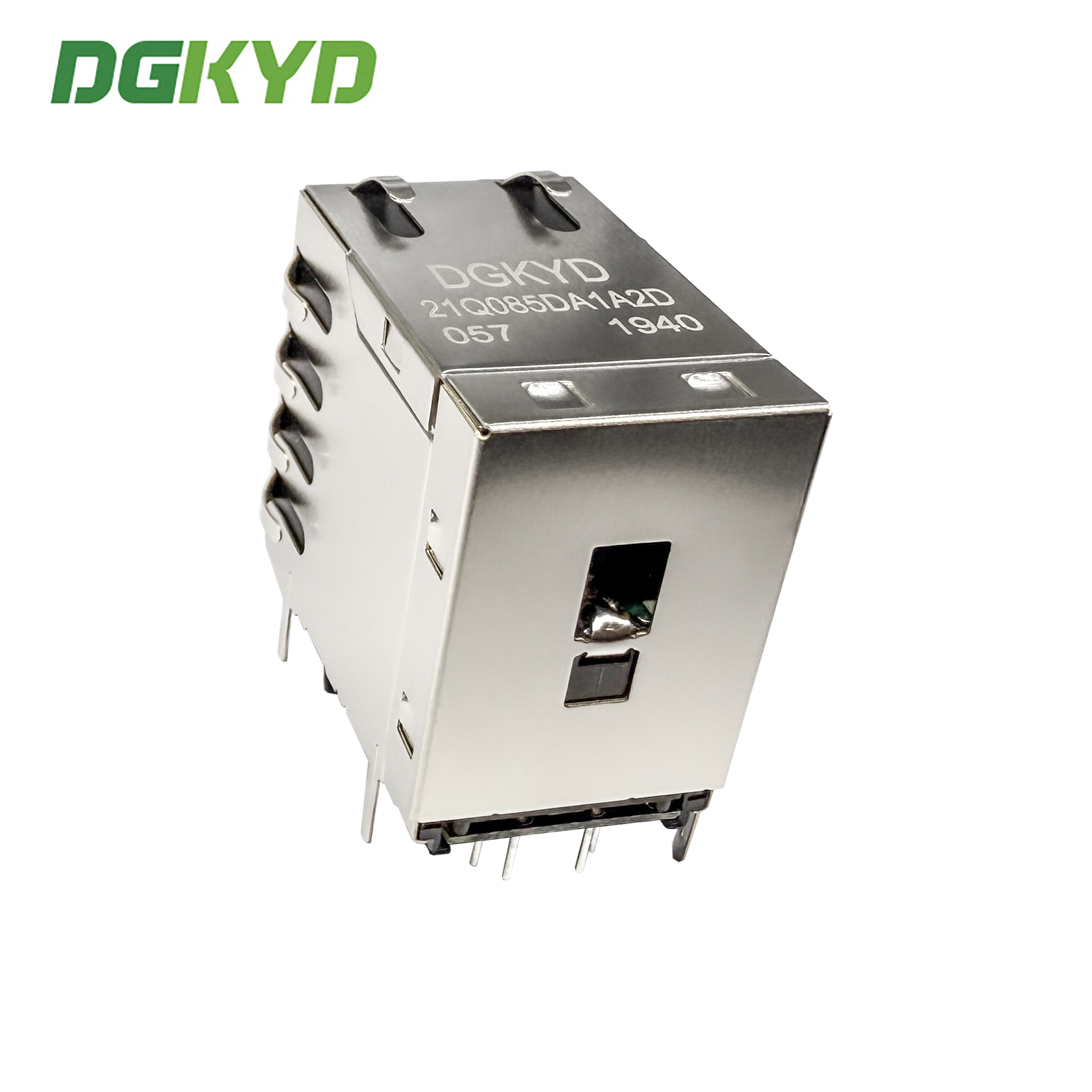

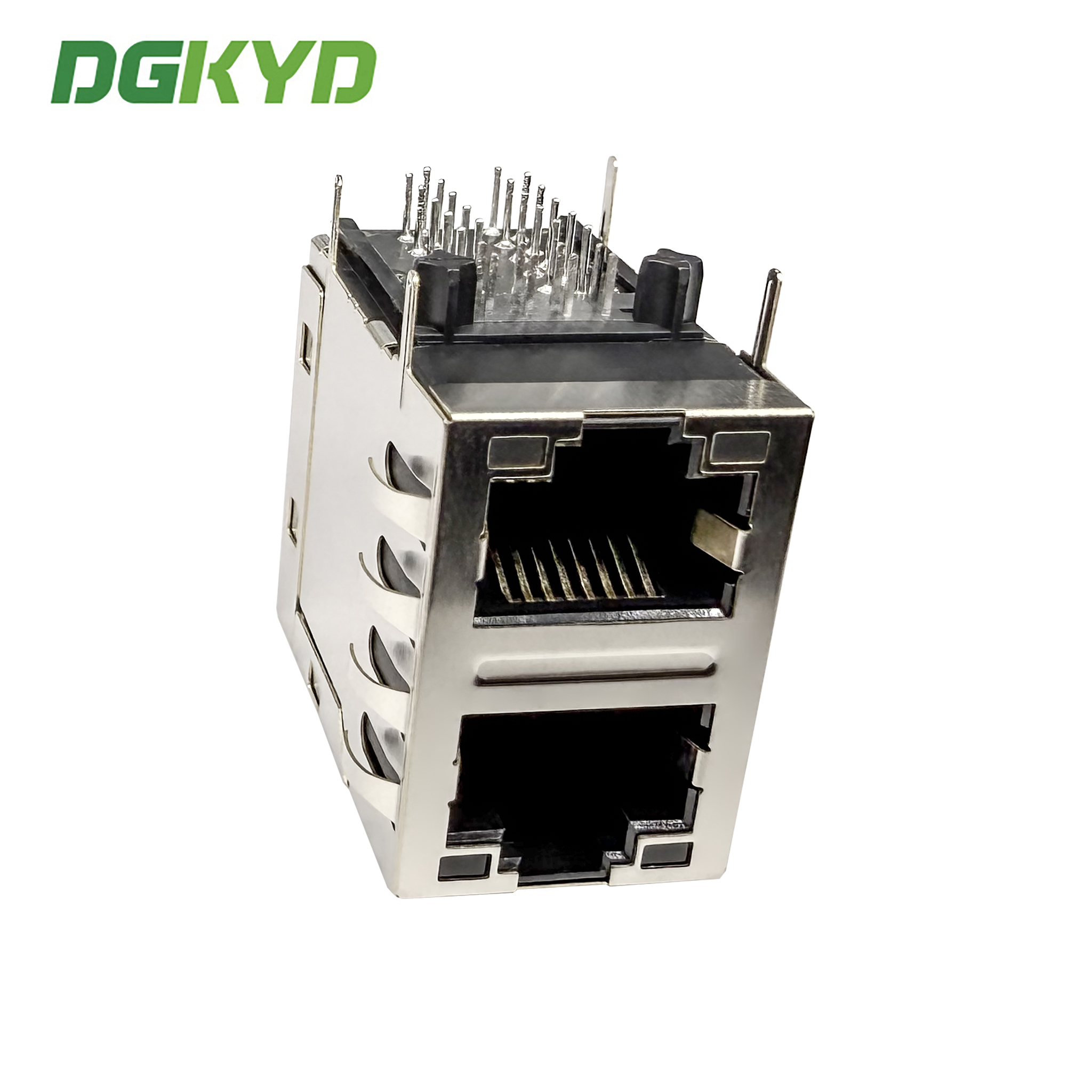

RJ45 stacked Ethernet socket with built-in gigabit integrated transformer DGKYD21Q085DA1A2D057

Quantidade de ordem mínima :	1 peça	Preço :	Please contact us to get the latest price.
Detalhes da embalagem :	Bandeja em caixa	Tempo de entrega :	10 dias
Termos de pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Habilidade da fonte :	100k PCs/dia

Lugar de origem:	Dongguan da China	Marca:	DGKYD
Certificação:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número do modelo:	DGKYD21Q085DA1A2D057

Informação detalhada
Jack modular e tipo de interface de plugue:	RJ45 com transformador	Configuração da porta:	Porto dobro
Estilo de conector:	Jack	Gênero:	Fêmea
Blindado:	sim	Material de habitação:	PA66 Poliéster
Indicador de status:	amarelo/verde	Controle de voz:	Assistente do Google, Amazon Alexa
Cor:	Preto	Categoria:	Garrafas telefónicas
Material:	PA66	Rescisão:	MERGULHAR
Temperatura de operação:	-40 ° C ~+85 ° C.	Ethernet:	1000 BASE-T/TX
Tipo de Insetion:	Entrada lateral	Tipo:	RJ45
Destacar:	RJ45 stacked Ethernet socket , gigabit integrated transformer socket , RJ45 2x1 Ethernet connector

Descrição de produto

RJ45 stacked Ethernet socket with built-in gigabit integrated transformer DGKYD21Q085DA1A2D057

Product Description

RJ45 stacked Ethernet socket with built-in gigabit integrated transformer DGKYD21Q085DA1A2D057

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃

Technical Parameters

Part Number	DGKYD21Q085DA1A2D057	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP/DOWN
Filter	With Filter	LED Option	With LED
LED Color	Yellow-Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative)
Port Configuration	Double Ports	Number of Positions	10
Jack Configuration	2X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA66 Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Images

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
