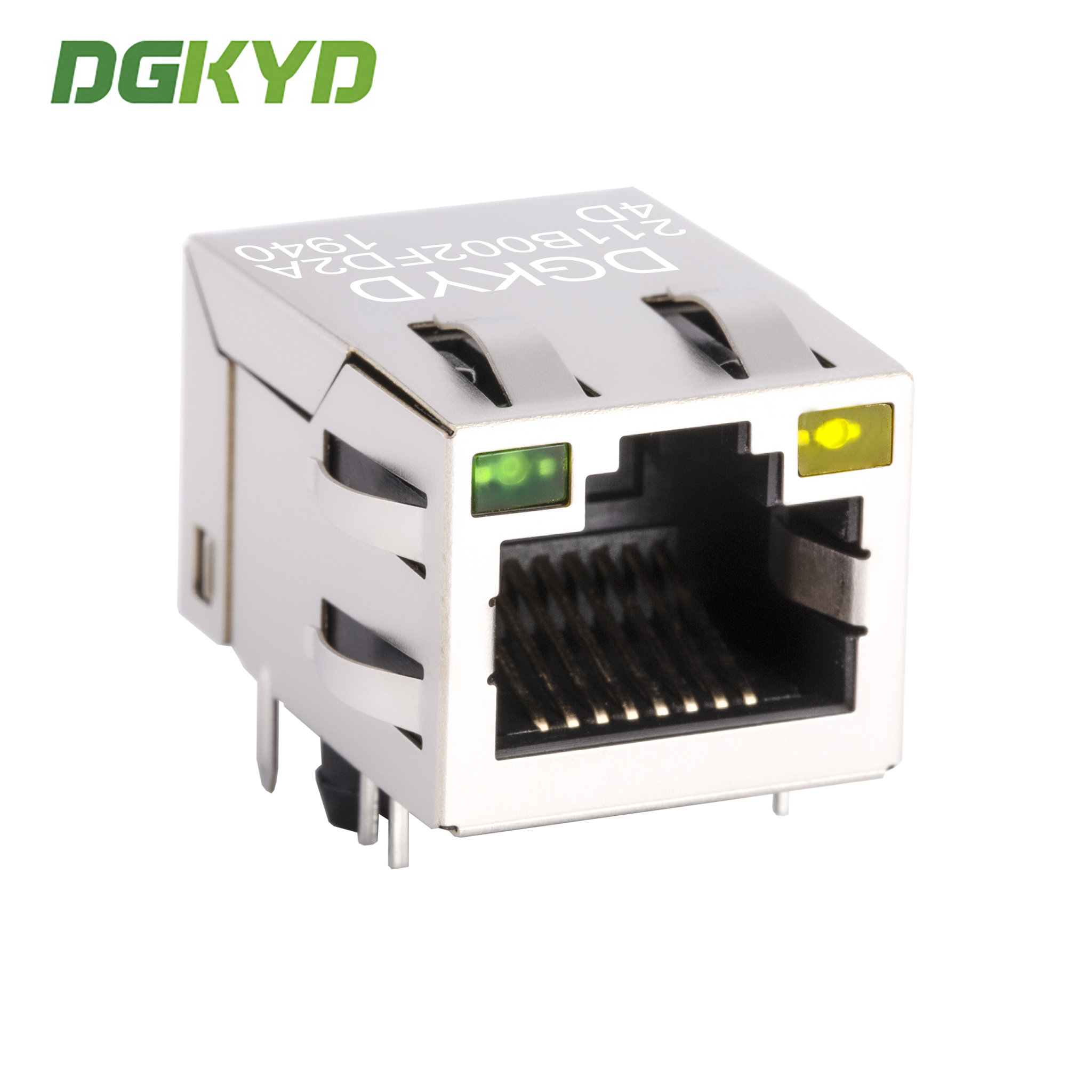

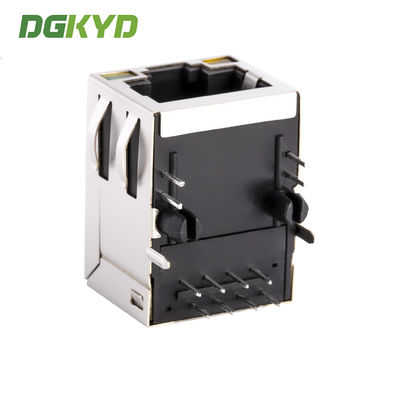

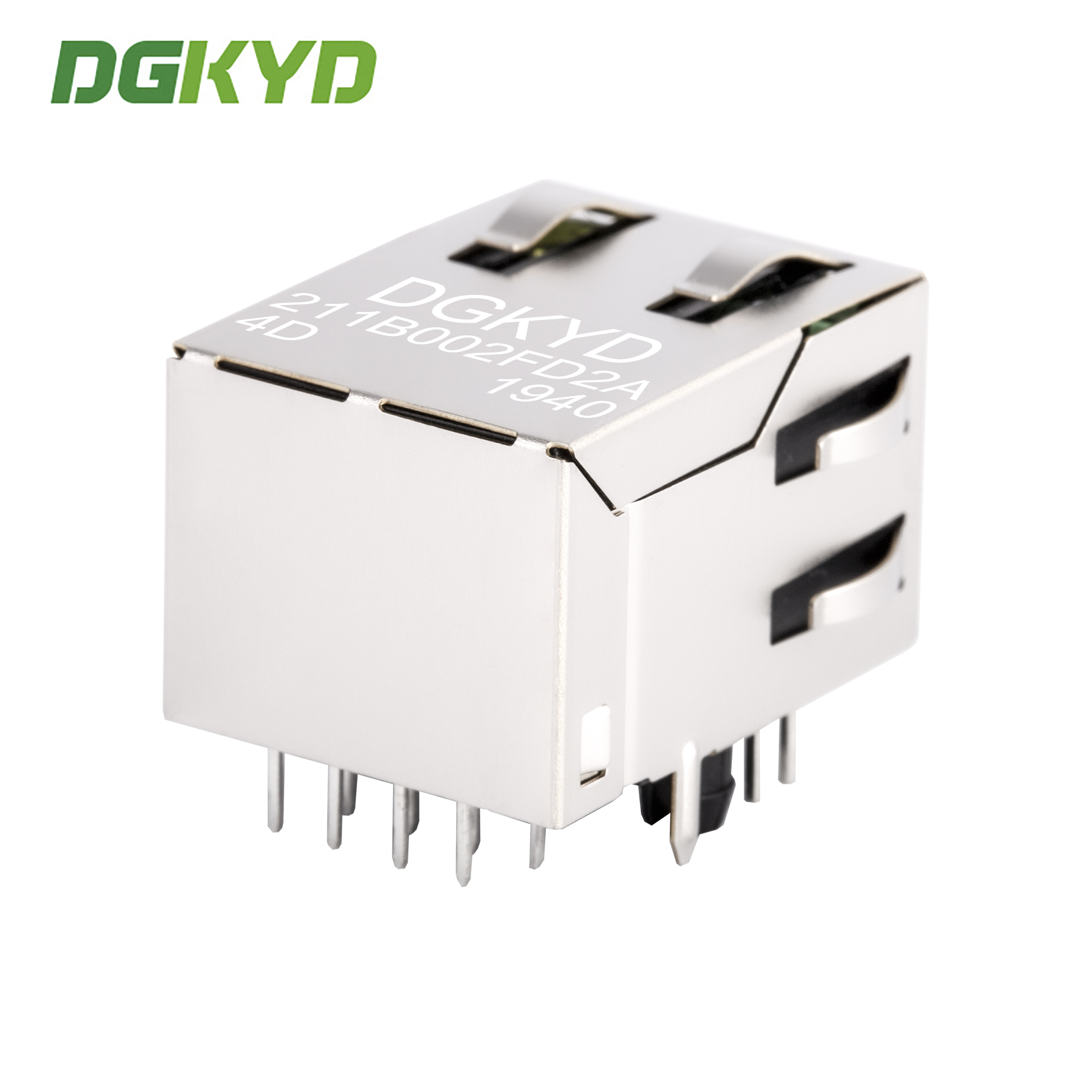

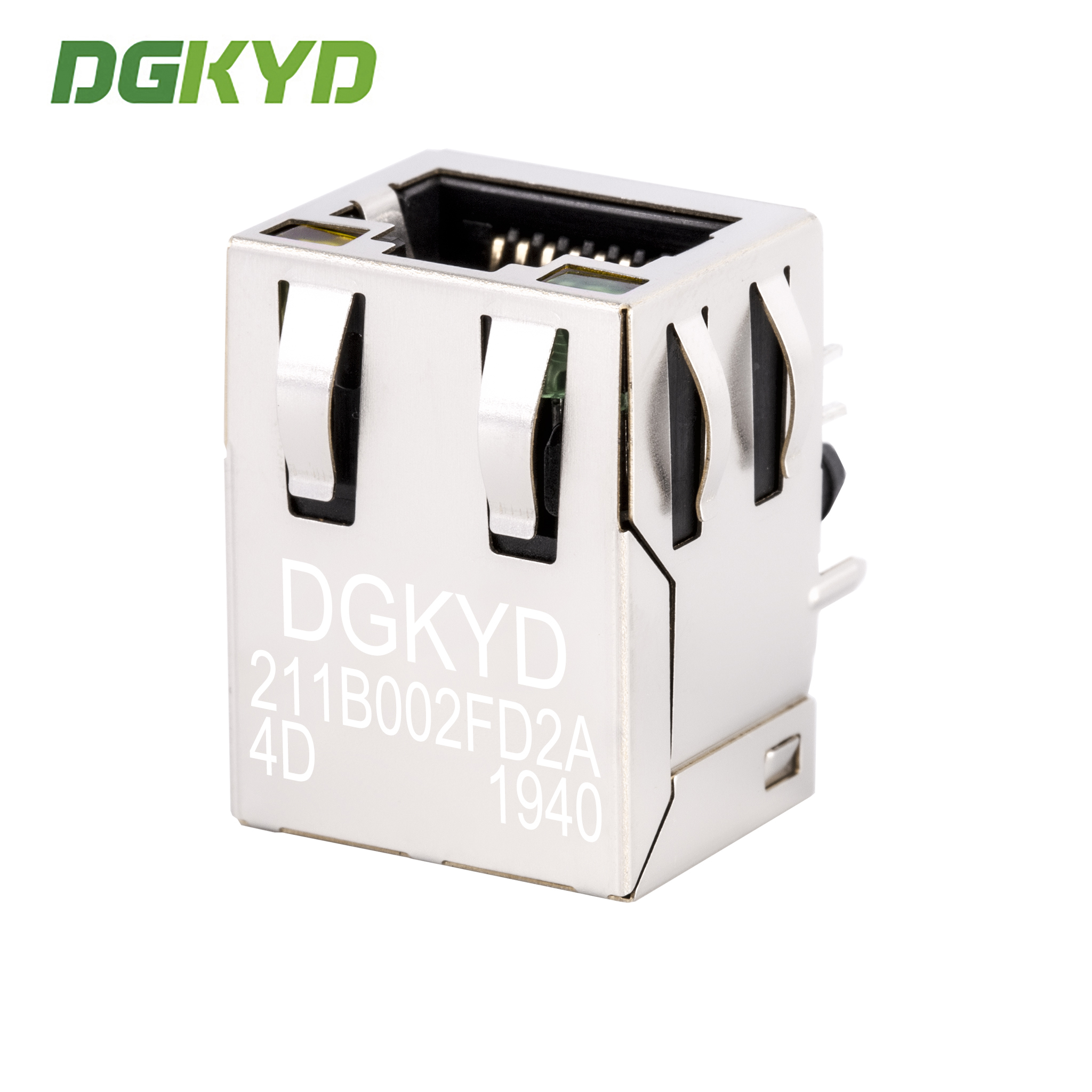

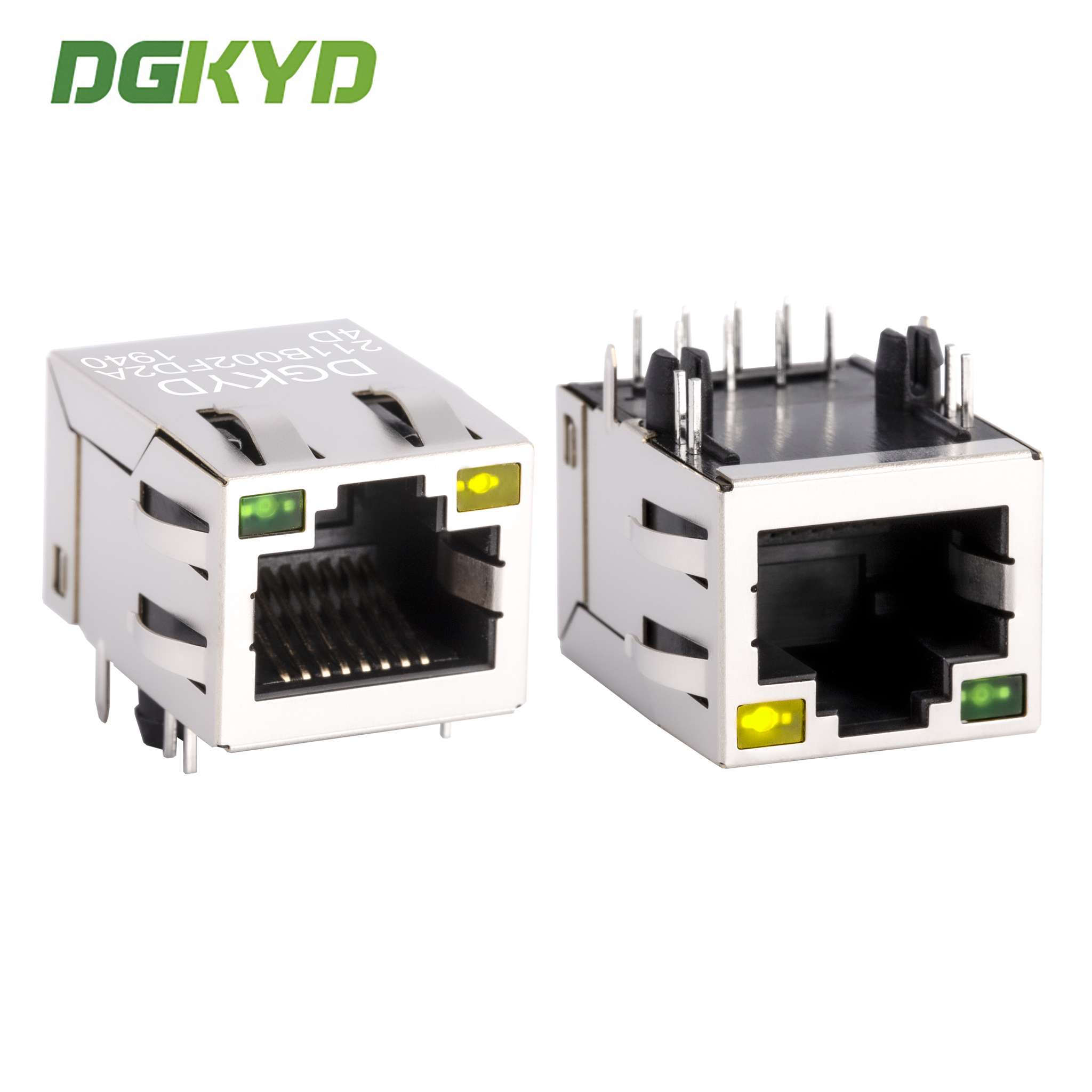

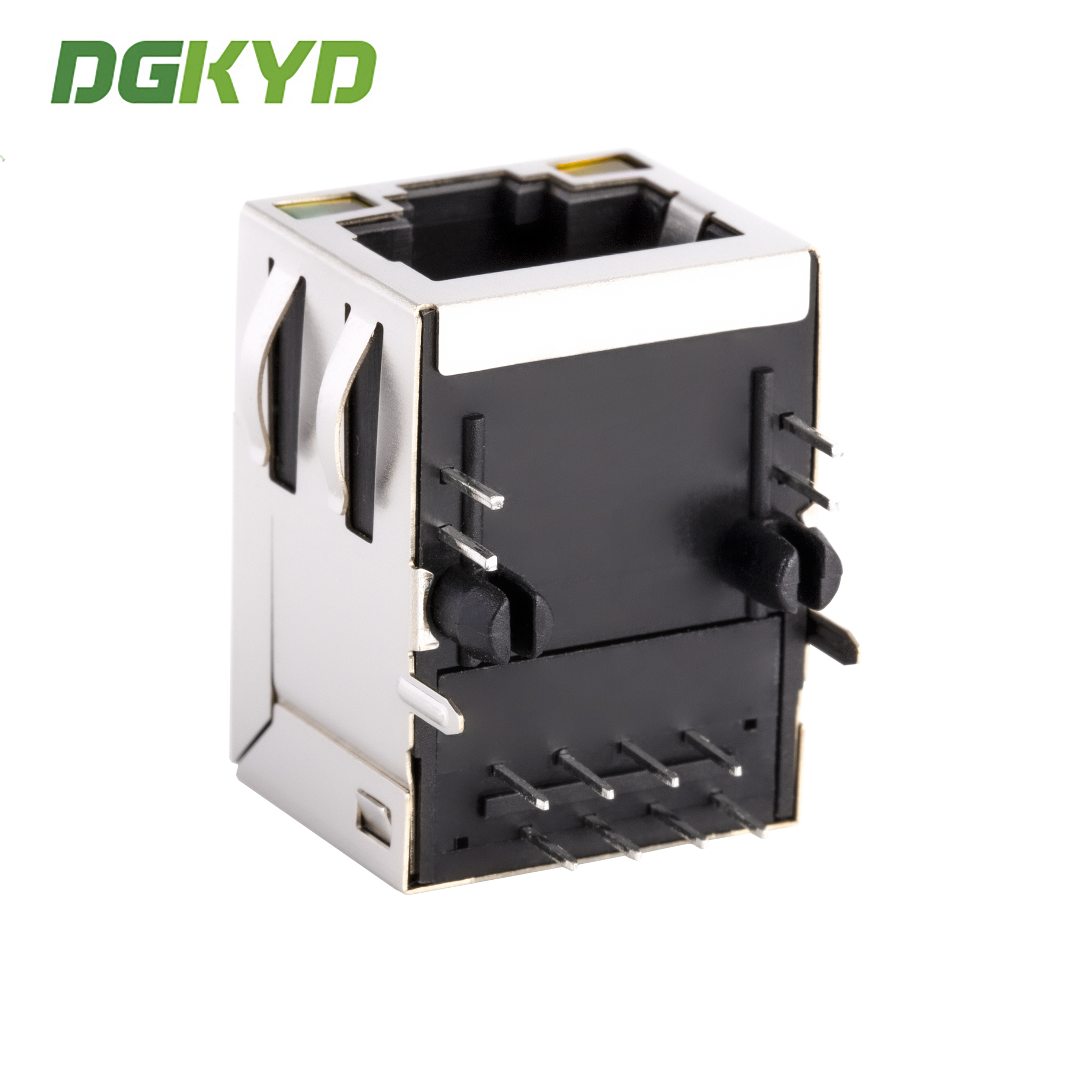

RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D

contacto

RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D

Quantidade de ordem mínima :	1 peça	Preço :	Please contact us to get the latest price.
Detalhes da embalagem :	Bandeja em caixa	Tempo de entrega :	10 dias
Termos de pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Habilidade da fonte :	100k PCs/dia

Lugar de origem:	Dongguan da China	Marca:	DGKYD
Certificação:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número do modelo:	DGKYD211B002FD2A4D

Informação detalhada
Nome do produto:	Jack modular RJ45	Gênero:	RJ45 RECEITO
Tipo:	Multi pino rj45 magjack	Aplicativo:	fibra óptica, câmera IP, DVR, DSL, modem, wifi etc
Recurso:	Porta de rede RJ45 blindada	OEM/ODM:	Sim
Arremesso de ouro nos pinos de contato:	6U	Temperatura operacional:	-40 ° C ~+85 ° C.
Temperatura de armazenamento:	-40 ° C ~+85 ° C.	Número de posições/contatos:	8P8c (RJ45, ethernet)
Escudo:	fósforo níquel de cobre
Destacar:	RJ45 network port with 100Mbps transformer , RJ45 LAN jack with integrated transformer , RJ45 socket with built-in light indicator

Descrição de produto

RJ45 Network Port Socket with Built-in 100Mbps Integrated Transformer and Light DGKYD211B002FD2A4D

Product Description

RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D

Parameters

Part Number	DGKYD211B002FD2A4D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Features

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Product Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
