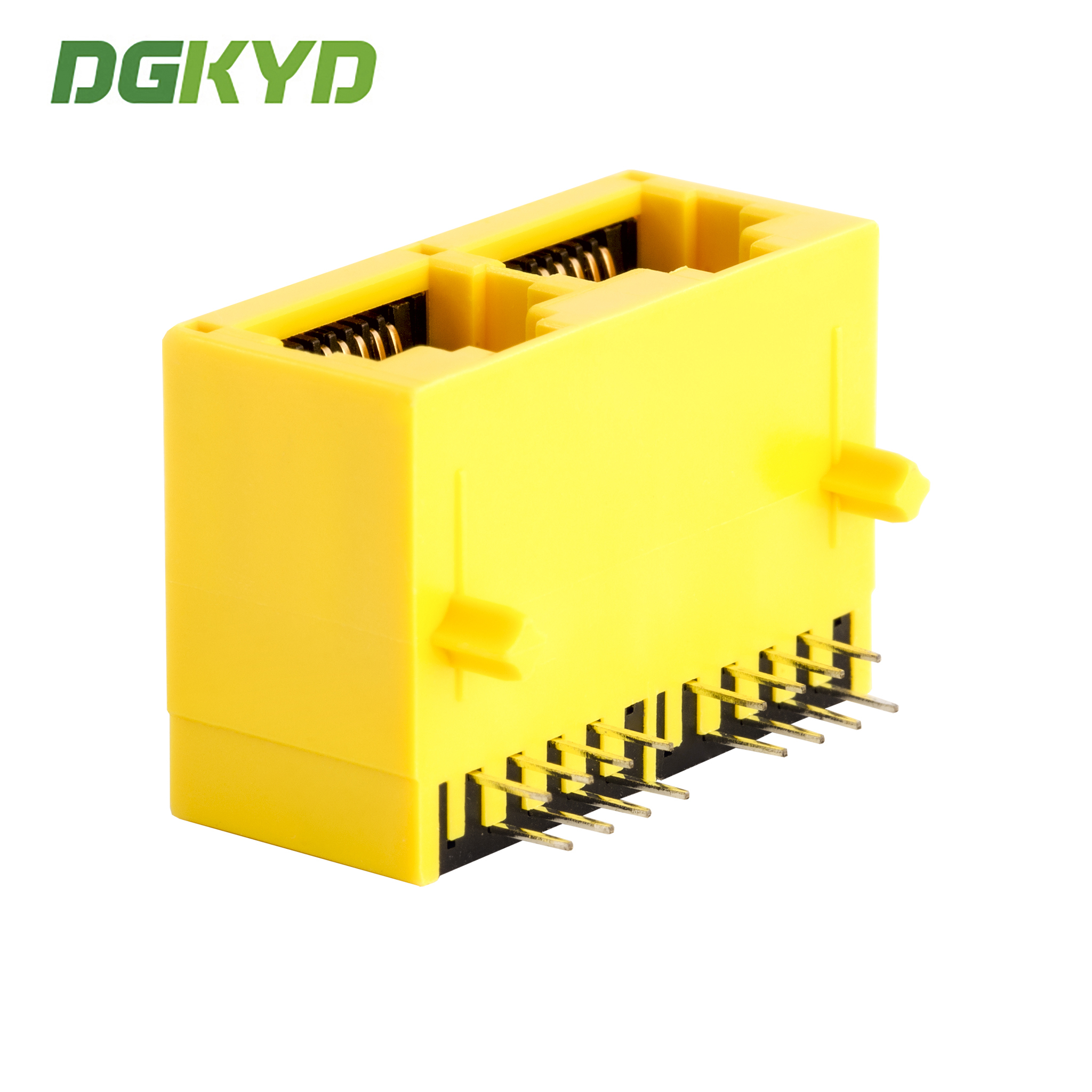

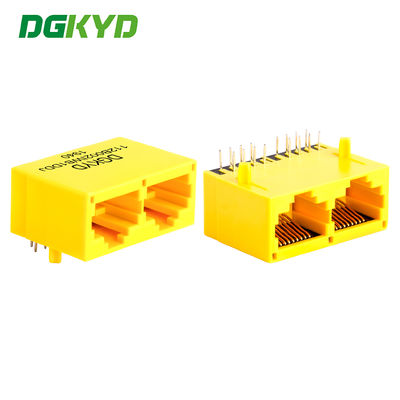

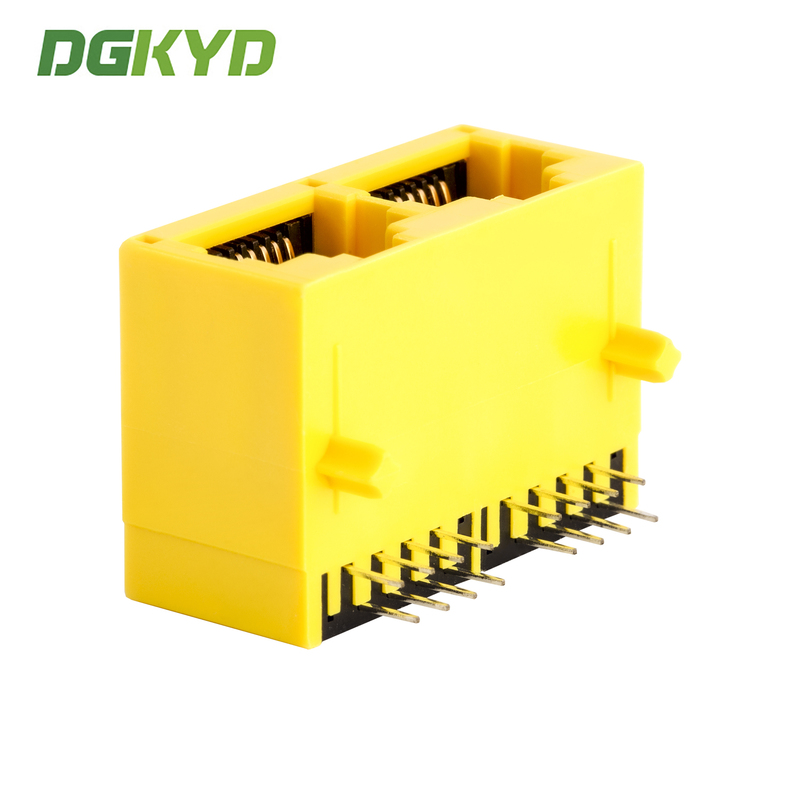

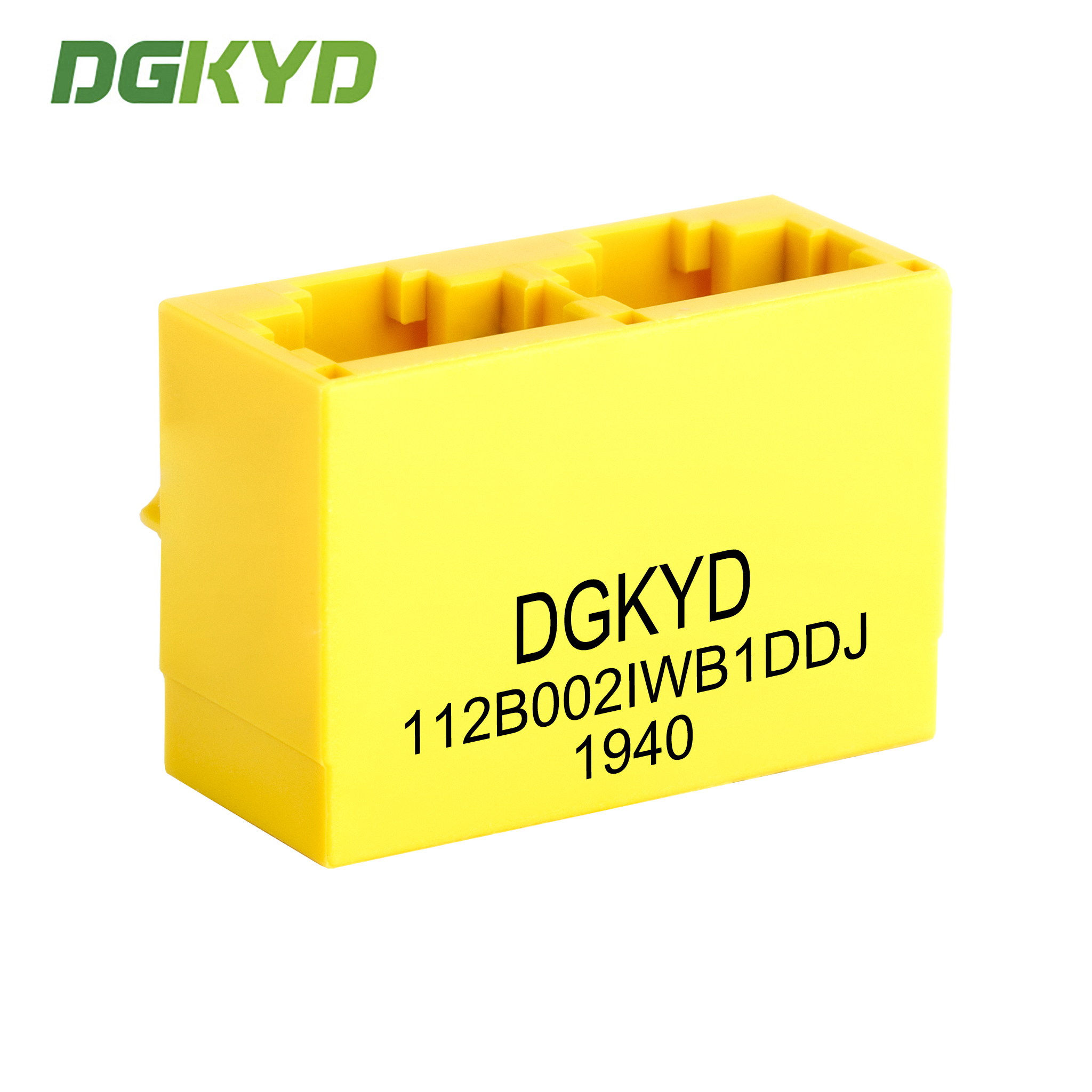

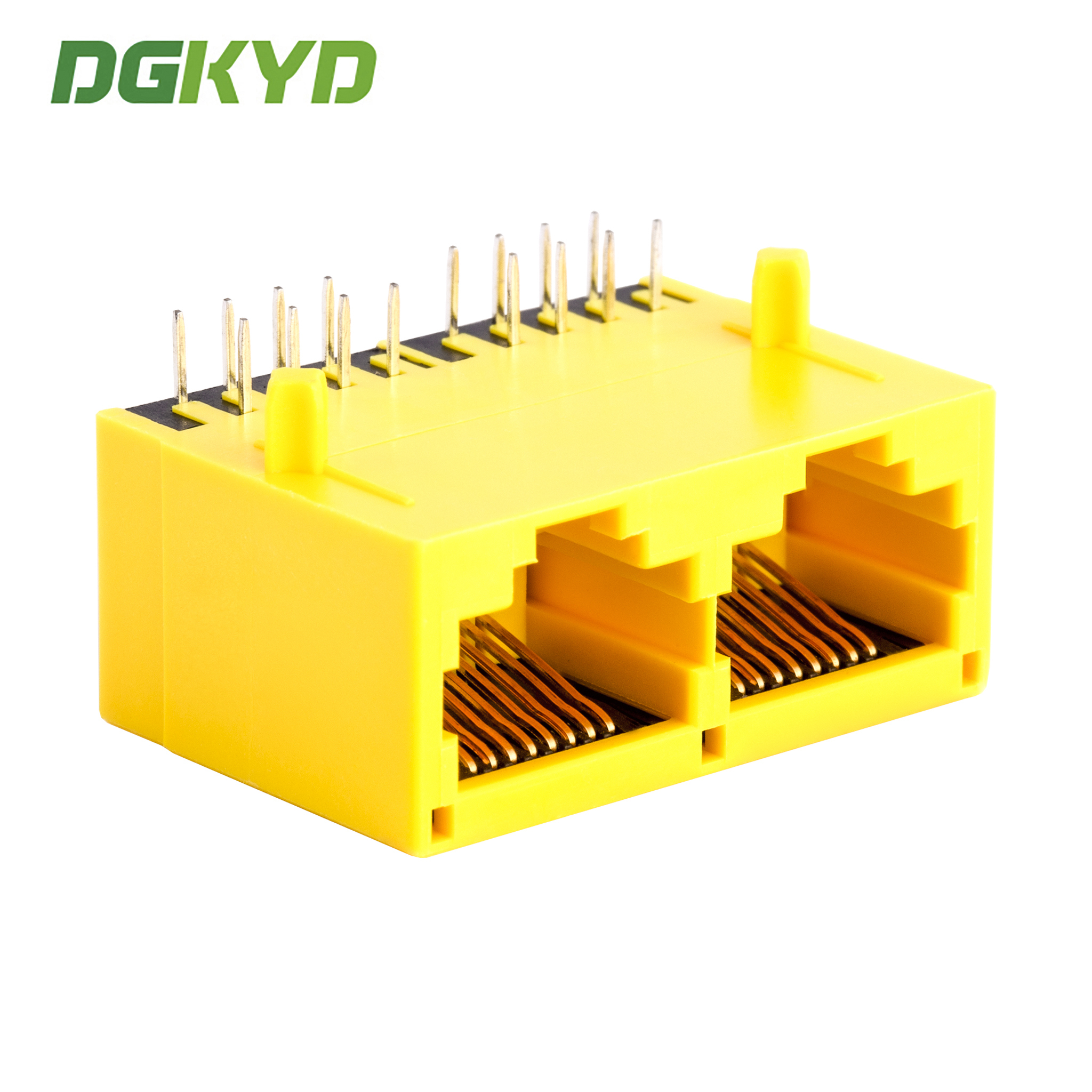

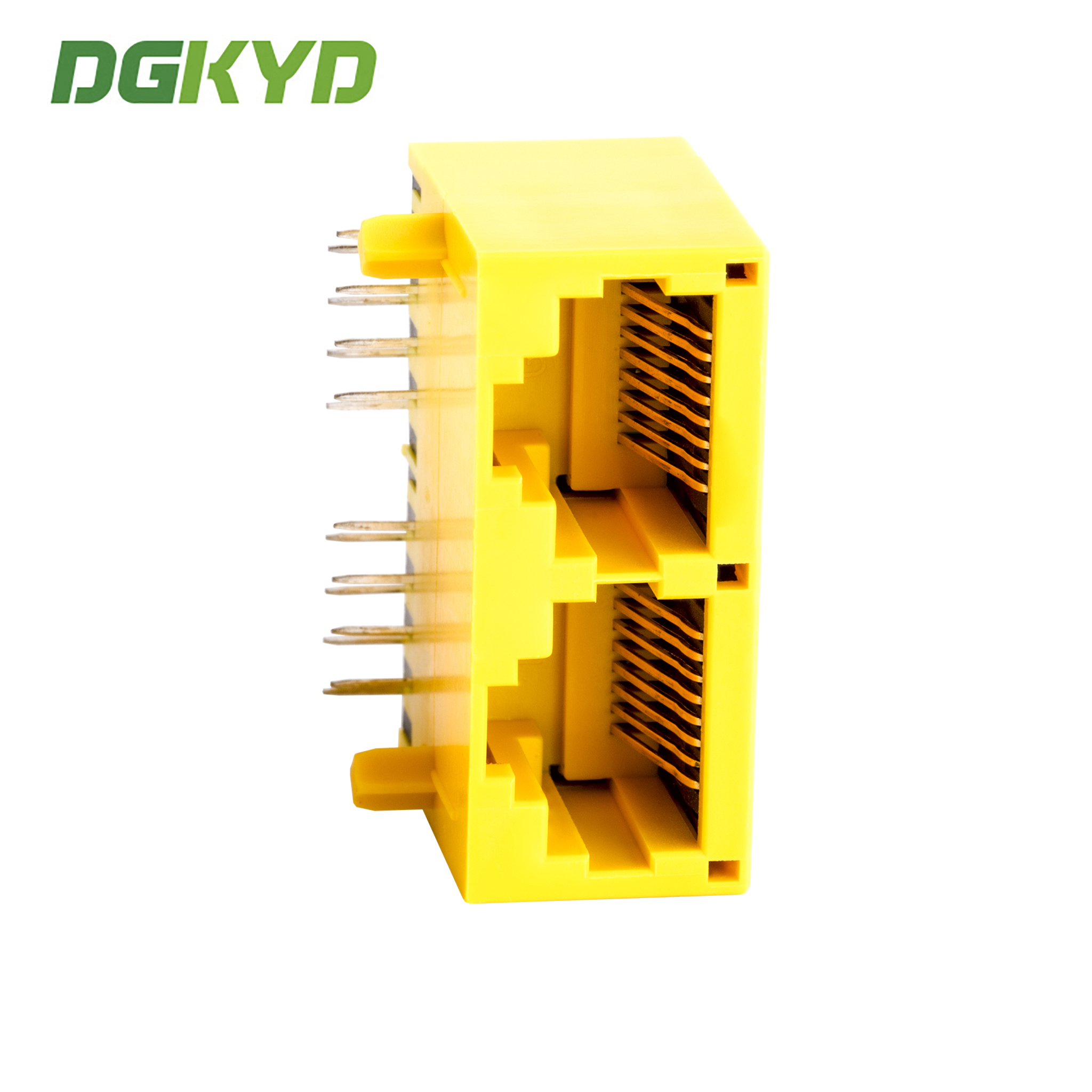

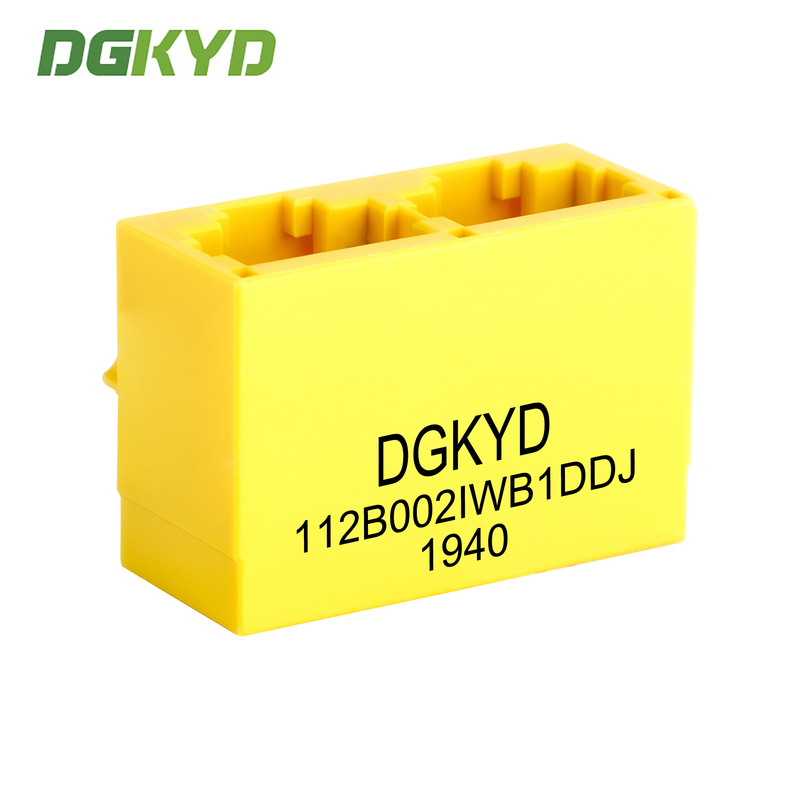

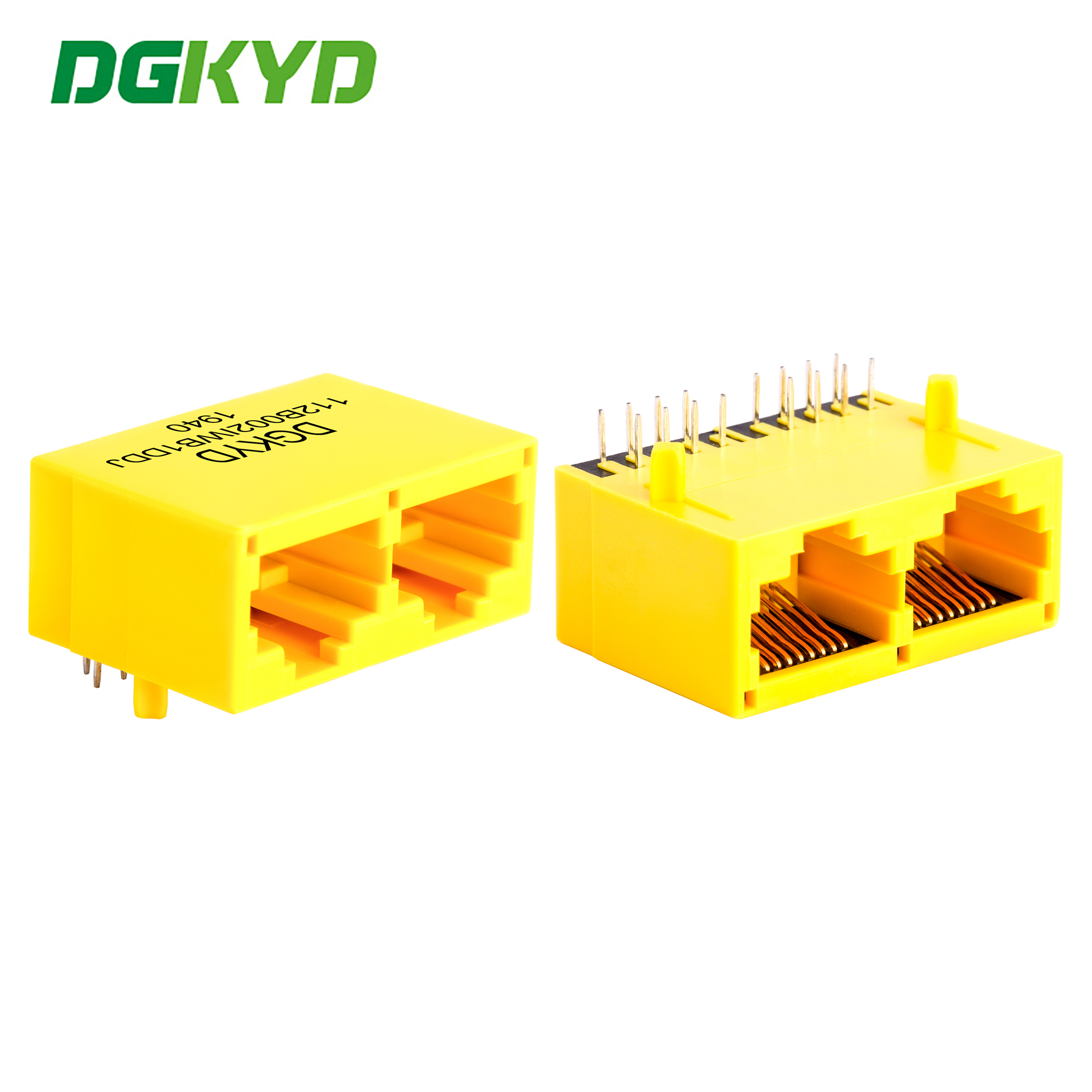

Cat 5 rj45 dual port jack 8 pin modular connector yellow plastic housing DGKYD112B002IWB1DDJ

Quantidade de ordem mínima :	1 peça	Preço :	Please contact us to get the latest price.
Detalhes da embalagem :	Bandeja em caixa	Tempo de entrega :	10 dias
Termos de pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Habilidade da fonte :	100k PCs/dia

Lugar de origem:	Dongguan da China	Marca:	DGKYD
Certificação:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número do modelo:	DGKYD112B002IWB1DDJ

Informação detalhada
Recurso:	Alto desempenho	Adequado para RJ45:	para cabo Ethernet CAT5&6 ou UTP
Aplicativo:	lan, ponte, PC, router, rede rj45 do cubo do usb e todos os dispositivos dos ethernet	Nome do produto:	Conector RJ45
Cor da carcaça:	Amarelo	Estilo da montagem:	MERGULHAR
Escudo:	fósforo níquel de cobre	OEM/ODM:	Sim
Número de posições/contatos:	8P8c (RJ45, ethernet)	Arremesso de ouro nos pinos de contato:	6U
Temperatura de armazenamento:	-40 ° C ~+85 ° C.	Temperatura operacional:	-40 ° C ~+85 ° C.
Destacar:	Cat 5 RJ45 dual port jack , 8 pin modular connector yellow , 2 port RJ45 plastic housing

Descrição de produto

Cat 5 RJ45 Dual Port Jack 8 Pin Modular Connector Yellow Plastic Housing DGKYD112B002IWB1DDJ

Product Specification

Drawing: Cat 5 RJ45 dual port jack 8 pin modular connector yellow plastic housing DGKYD112B002IWB1DDJ

Product Specification Document: DGKYD112B002IWB1DDJ.pdf

Parameters

Part Number	DGKYD112B002IWB1DDJ	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Double Ports	Number of Positions	8
Jack Configuration	1X2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Yellow
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
