1-Port RJ45 Connector 10P PBT with Filter and Shielding

Quantidade de ordem mínima :	1	Preço :	$0.60-1.80

Lugar de origem:	Guangdong, China	Marca:	DGKYD
Número do modelo:	DGKYD111Q066HWA1D

Informação detalhada
Tipo de conector:	RJ45	Blindagem:	Sim
Número de portas:	1	Contacto Terminado:	6U/15U/30U
Orientação:	lado	Número de linhas:	1
Pinos:	10p	Material de contato:	Bronze de fósforo
Material de moradia:	Poliéster de PBT	Filtro:	Com filtro
Velocidade do desempenho:	10/100/1000 base-t	Configuração da porta:	solteiro
Terminais pelo porto:	8	Orientação da montagem do PWB:	Entrada lateral (ângulo reto)
Contato de acasalamento:	Ouro 6u/15u/30u/50u
Destacar:	1-port RJ45 connector with filter , shielded RJ45 single port connector , PBT RJ45 connector with shielding

Descrição de produto

High-Speed 1x1 Single-Port Gigabit Network Connector

10PIN PBT Material Integrated Filtering Shielding Non-Lit for RJ45

Product Specifications

Part Number	DGKYD111Q066HWA1D	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO16949/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Down
Filter	With Filter	LED Option	Without LED
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T	Grounding Options	Panel Ground and PCB Ground

Technical Details

Port Configuration	Single	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)

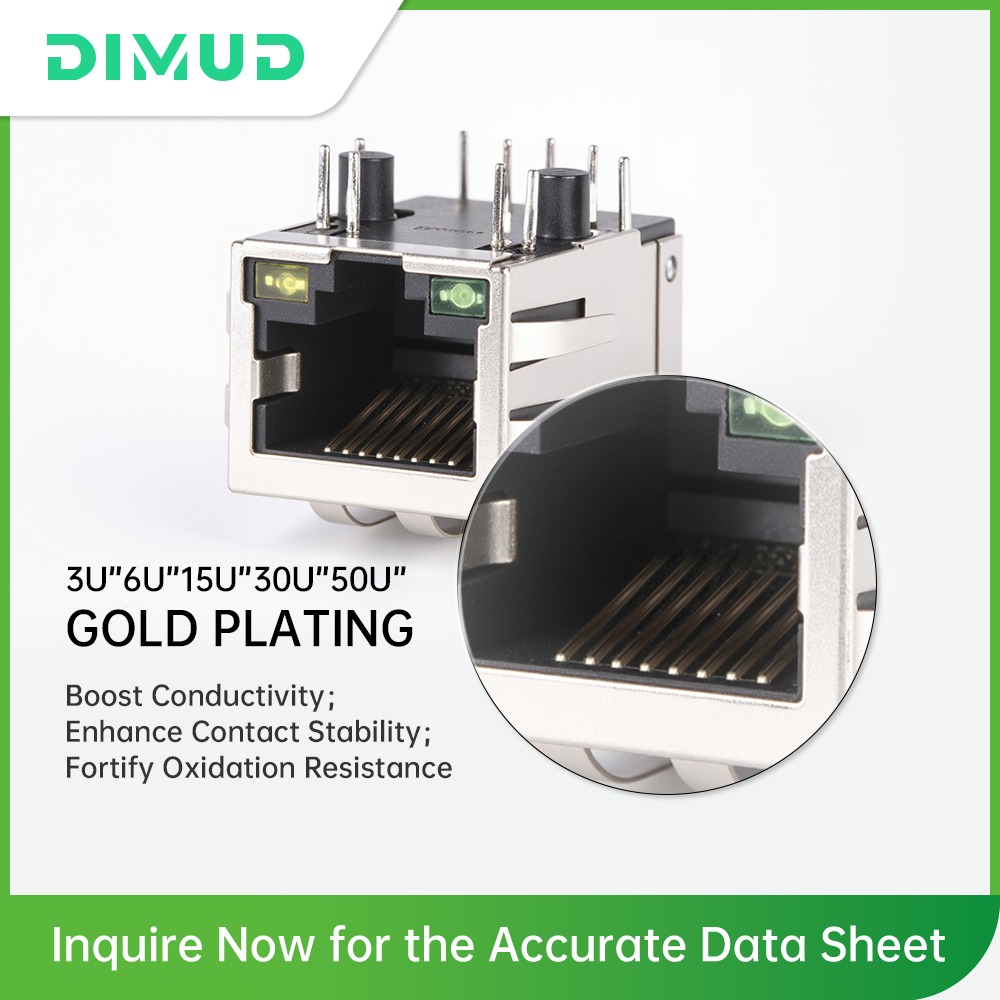

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
UL Flammability Rating	UL 94V-0

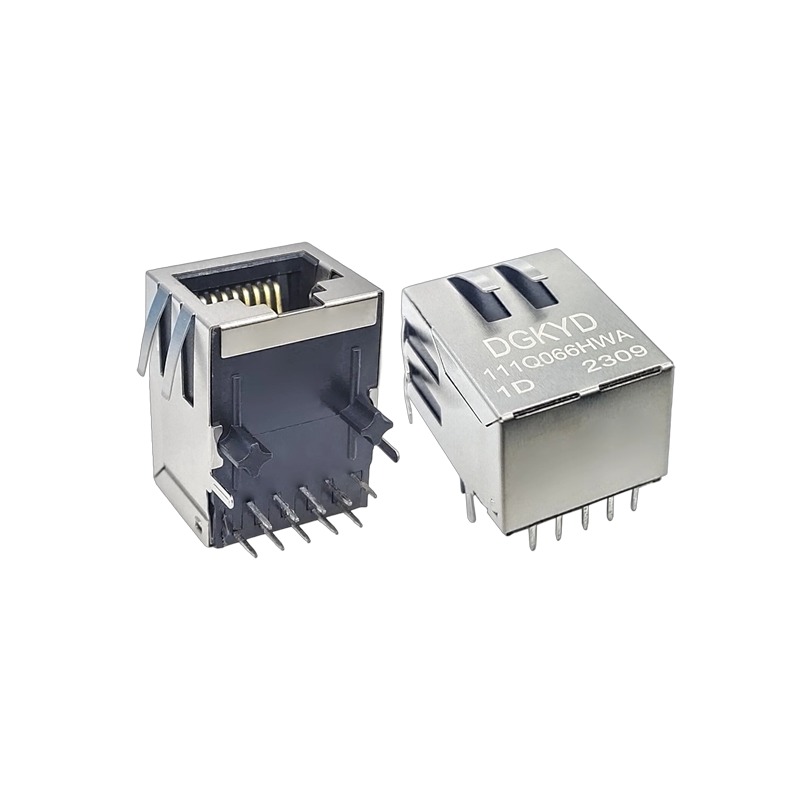

Product Images

Key Features

High-Speed Performance: Supports 10/100/1000 BASE-T networks
Robust Construction: PBT polyester housing with copper alloy shielding
Integrated Filtering: Built-in EMI/RFI protection
Reliable Contacts: Gold-plated phosphor bronze contacts
Secure Mounting: Through-hole PCB mounting with board lock options
Safety Certified: UL 94V-0 flammability rating
