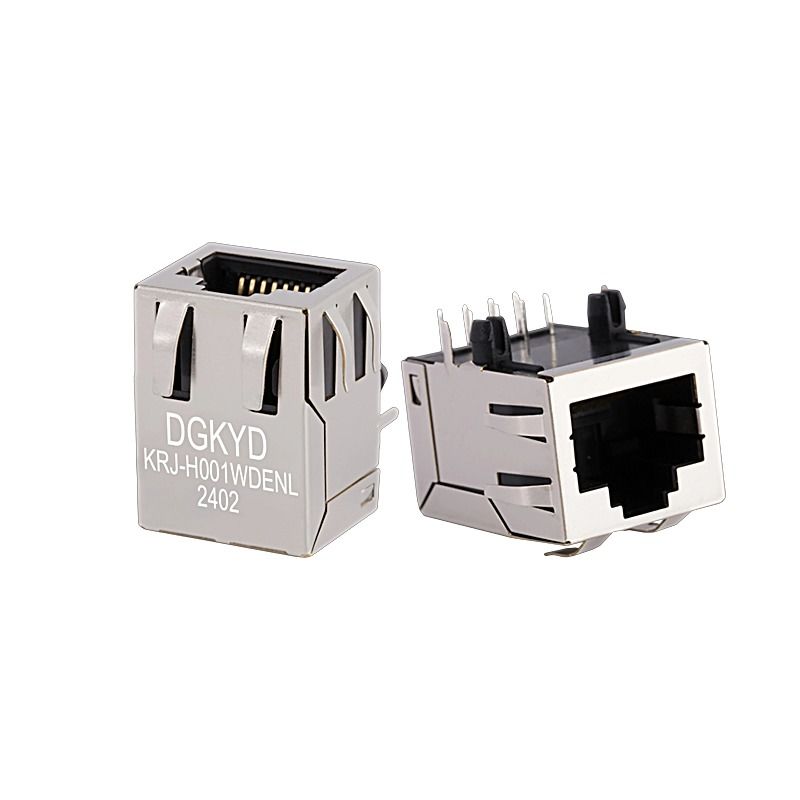

DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount

Quantidade de ordem mínima :	1	Preço :	$0.47-0.78

Lugar de origem:	Guangdong, China	Número do modelo:	O que é o que se passa?

Informação detalhada
Tipo:	RJ45	Embalagem:	MERGULHAR
Gênero:	Fêmea	Material de moradia:	PRETO PA66
Opção LED:	Sem conduzido	Trava:	Acima
Número de portas:	1	Número de contatos:	8
Ângulo da montagem do PWB:	Entrada lateral	Estilo da montagem:	Através do buraco
Velocidade:	cat5	Velocidade do desempenho:	10/100 Base-T
Blindado:	Sim	Material do escudo:	Liga de cobre preplated com níquel
Material de revestimento de contato:	Ouro 6u/15u/30u/50u
Destacar:	shielded RJ45 single port connector , side entry PCB mount RJ45 , 100M RJ45 connector with warranty

Descrição de produto

Single-Port 100M RJ45 Network Port Socket Connector Transformer Shielded Non-LED Ethernet Connectors

Product Specifications

Part Number	KRJ-H001WDENL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	Without LED
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	8
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

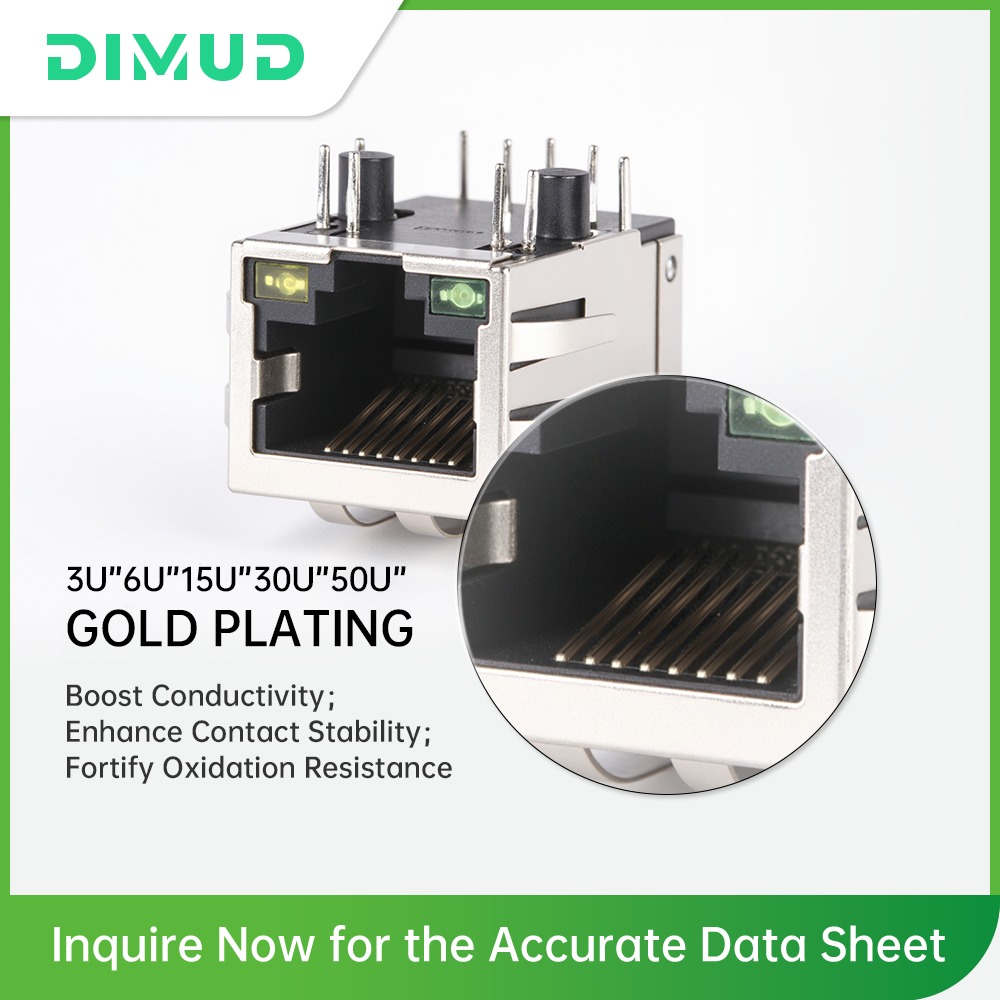

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PA66
Housing Color	Black
UL Flammability Rating	UL 94V-0

Key Features

Single-port RJ45 connector with transformer for 100M Ethernet networks
Shielded design for enhanced EMI protection
Non-LED version for applications where indicator lights aren't required
Through-hole PCB mounting with right-angle orientation
High-quality gold-plated contacts for reliable connections
Compliant with multiple international certifications including CE, UL, and RoHS
