Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Quantidade de ordem mínima :	1	Preço :	$0.51-0.85

Lugar de origem:	Guangdong, China	Marca:	DGKYD
Número do modelo:	KRJ-406CNL

Informação detalhada
Tipo:	RJ45	Gênero:	Fêmea
Material de moradia:	PRETO DE PBT	Placar de contato:	Ouro 6U ''
Material do escudo:	Liga de cobre preplated com níquel	Opção LED:	Com LED
Cor LED:	Verde & amarelo	Número de contatos:	8
Opção do transformador:	Com transformador	Velocidade do desempenho:	10/100 Base-T
Configuração da porta:	solteiro	Método de terminação:	Através do Fuil-Press-Fit
Estilo de montagem:	Através do buraco	Orientação de montagem:	Entrada lateral (ângulo reto)
Avaliação da inflamabilidade do UL:	UL 94V-0
Destacar:	Industrial RJ45 female connector with LED , 8P8C RJ45 connector 10/100 Base-T , Single port RJ45 connector with warranty

Descrição de produto

Industrial Grade 10/100 Base T Ethernet Connectors

Surface Mount CAT5E RJ45 Female Connector with LEDs and Integrated Magnetics PCB

High-performance industrial-grade RJ45 connector designed for 10/100 BASE-T Ethernet applications. Features integrated magnetics, LED indicators, and robust construction for reliable operation in demanding environments.

Product Specifications

Part Number	KRJ-406CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Down
Filter	With Filter
LED Option	With LED
LED Color	Green & Yellow
Shielded	Yes
Performance Speed	10/100 BASE-T
Port Configuration	Single
Number of Positions	8
Shield Material	Copper Alloy preplated with Nickel
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u for optional
Contact Base Material	Phosphor Bronze
Housing Material	PBT Polyester
UL Flammability Rating	UL 94V-0

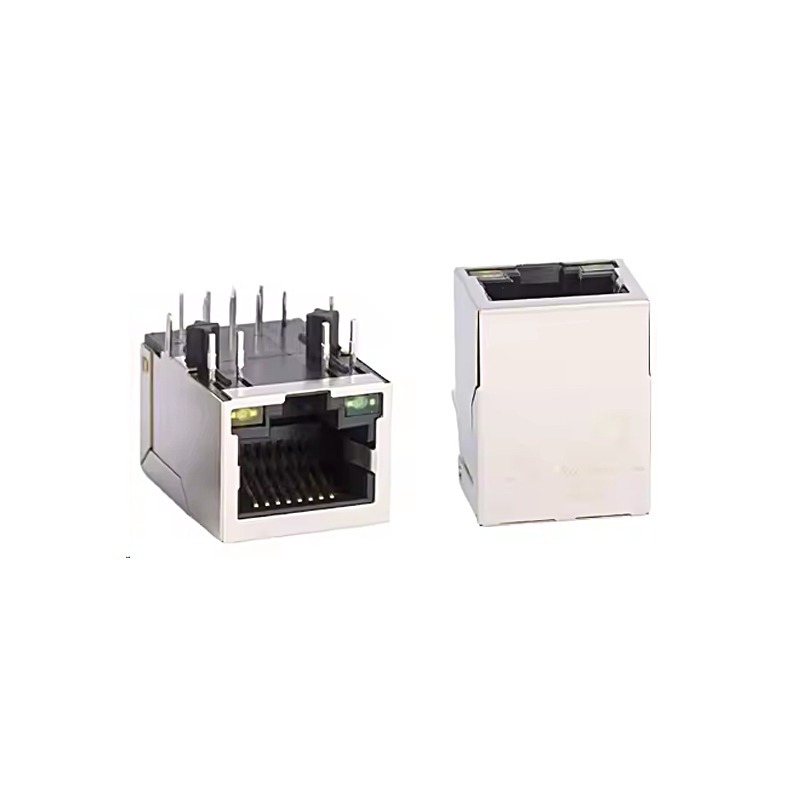

Product Images

etiqueta:

Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Industrial RJ45 female connector with LED

8P8C RJ45 connector 10/100 Base-T

Single port RJ45 connector with warranty
