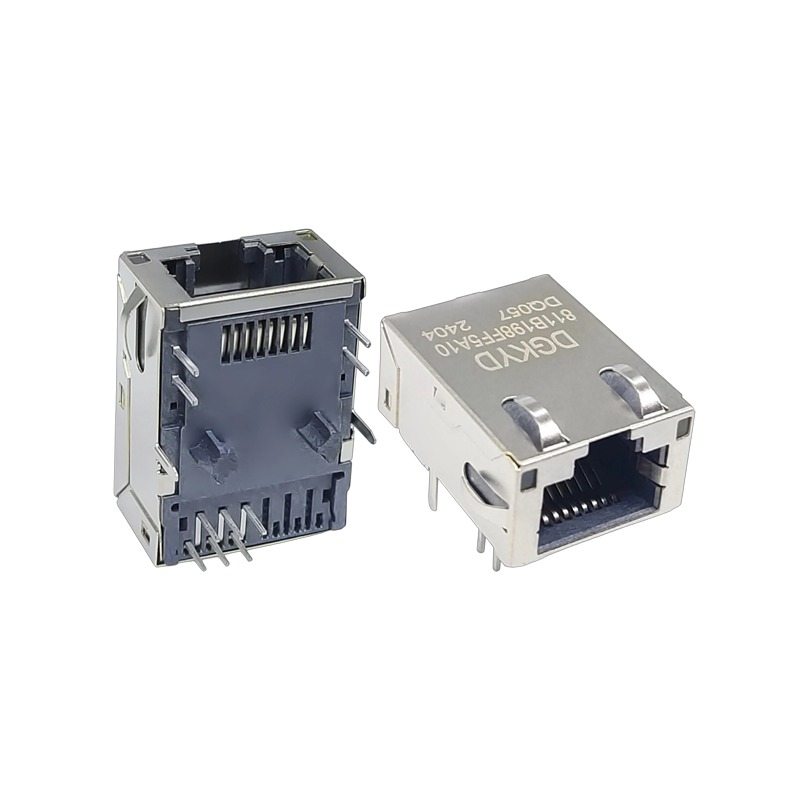

DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED

Quantidade de ordem mínima :	1	Preço :	$0.90-1.50

Lugar de origem:	Guangdong, China	Marca:	DGKYD
Número do modelo:	DGKYD811B198FF5A10DQ057

Informação detalhada
Tipo:	RJ45	Embalagem:	MERGULHAR
Gênero:	Fêmea	Material de moradia:	Preto de LCP
Opção LED:	Verde-alaranjado/amarelo	Trava:	Acima
Número de portas:	1	Número de contatos:	8
Ângulo da montagem do PWB:	Entrada lateral	Estilo da montagem:	Através do buraco
Velocidade do desempenho:	10/100Base-T	Configuração da porta:	solteiro
Número de posições:	6	Terminais pelo porto:	8
Material do escudo:	Liga de cobre preplated com níquel
Destacar:	RJ45 single port connector 100Mbps , RJ45 connector with dual-color LED , single port RJ45 with warranty

Descrição de produto

Factory Supply 1x1 Single-Port 100Mbps Integrated Transformer RJ45 Network Connector

Dual-Color LED with pins 1, 2, 3, 7, 8, 9 excluded for specialized network applications.

Product Specifications

Part Number	DGKYD811B198FF5A10DQ057	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Up
Filter	With Filter	LED Option	With LED
LED Color	Green-Orange/Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	6
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)

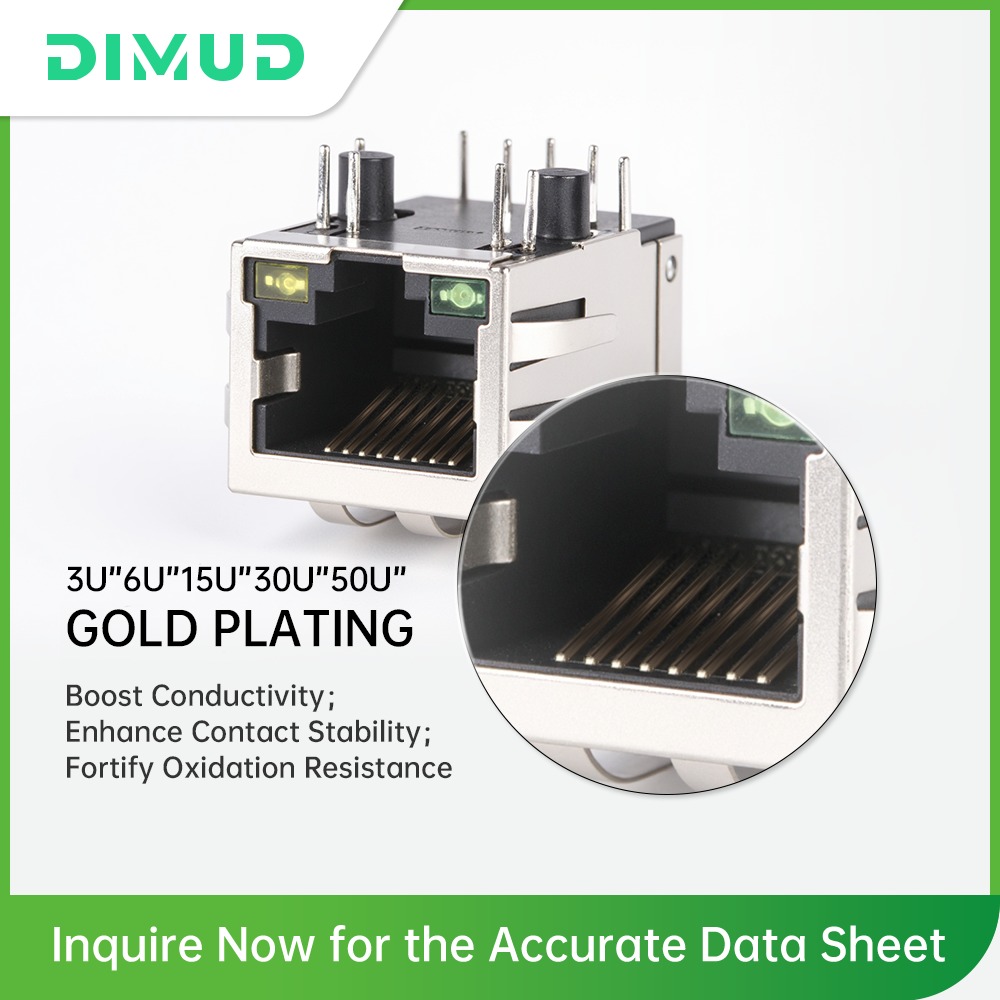

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Images

RJ45 single port connector 100Mbps
