RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3

Quantidade de ordem mínima :	1 peça	Preço :	Please contact us to get the latest price.
Detalhes da embalagem :	Bandeja na caixa	Tempo de entrega :	10 dias
Termos de pagamento :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Habilidade da fonte :	100 mil peças/dia

Lugar de origem:	DongGuan da China	Marca:	DGKYD
Certificação:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Número do modelo:	DGKYD114Q070DB2A1D3

Informação detalhada
Escudo RJ45:	- Sim, sim.	Não.Porto:	4 porto
Nome do produto:	RJ45 com transformador	Tipo:	RJ45 Fêmea
Habitação:	Fenólicos, PBT Negro (UL94V-0)	Núcleo de plástico:	Preenchimento de fibra de vidro PBT Preto ((UL94V-0), ROHS
Temperatura de armazenamento:	-40°C~+85°C	Número de pontos:	8P10C
temperatura de funcionamento:	-40 °C a +85 °C	LED:	Verde/amarelo
Destacar:	RJ45 network connector With Transformer , quad port RJ45 network connector , RJ45 quad port network connector

Descrição de produto

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3

Product Specification Document

Part Number	DGKYD114Q070DB2A1D3	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X4 Ports	Number of Positions	10
Jack Configuration	1X4	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

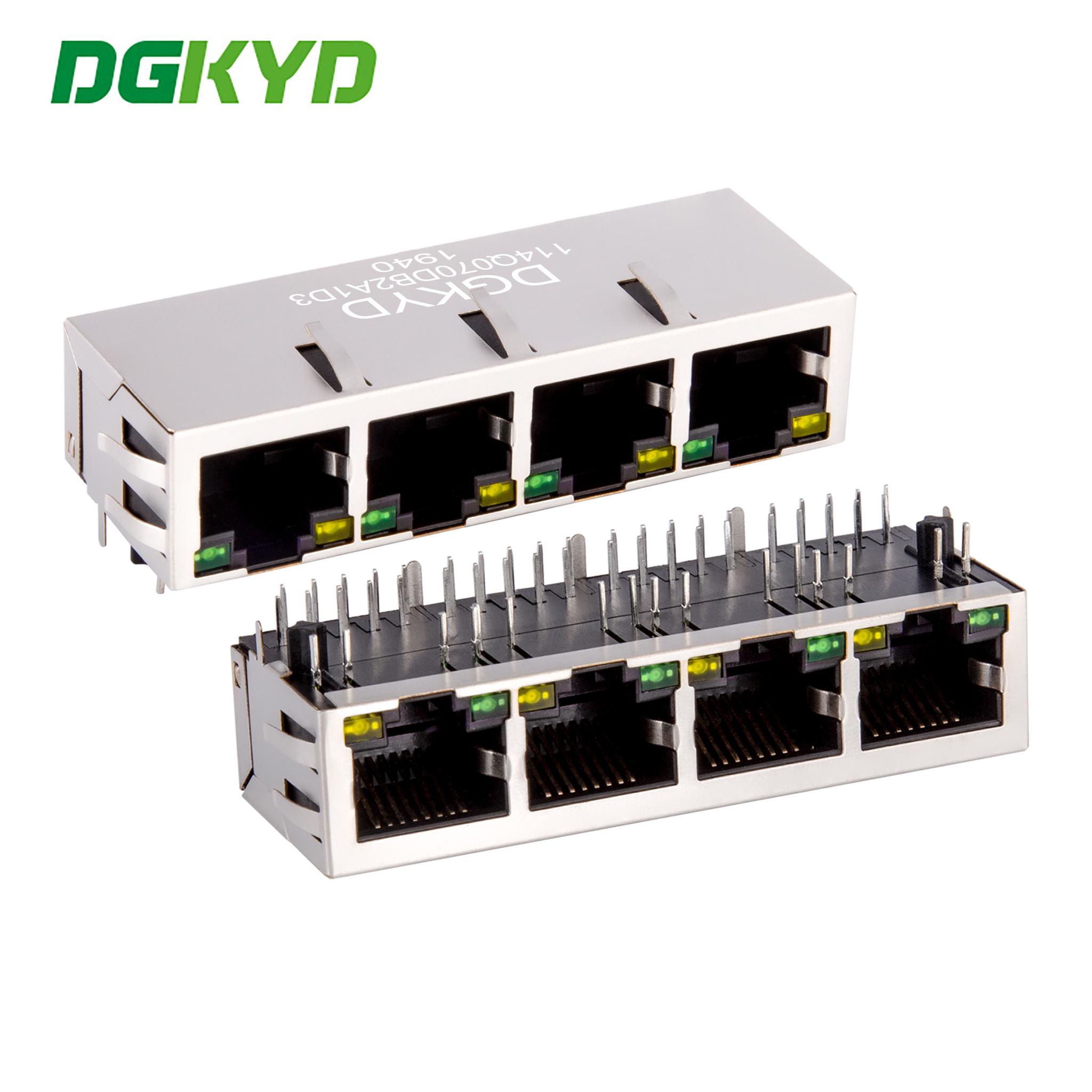

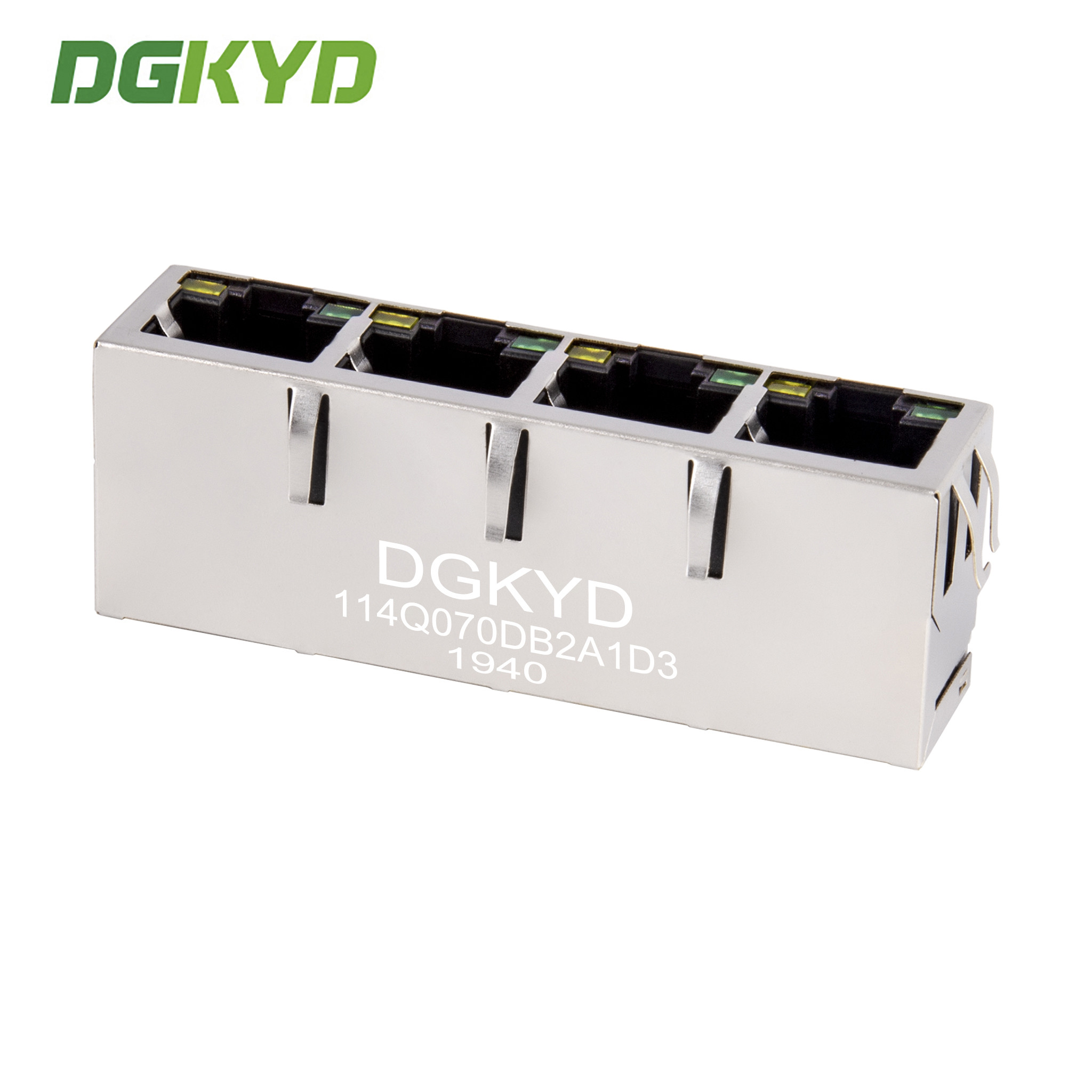

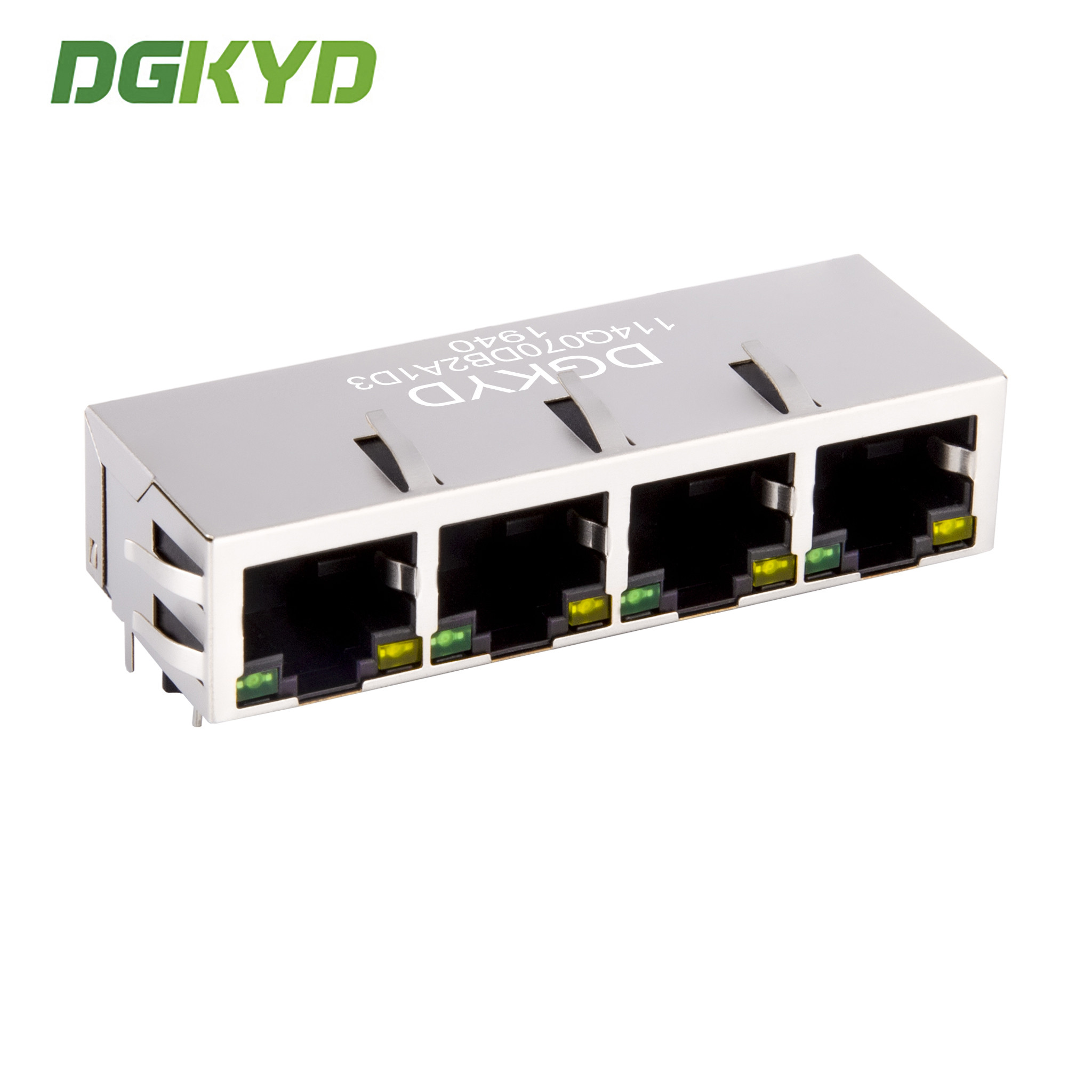

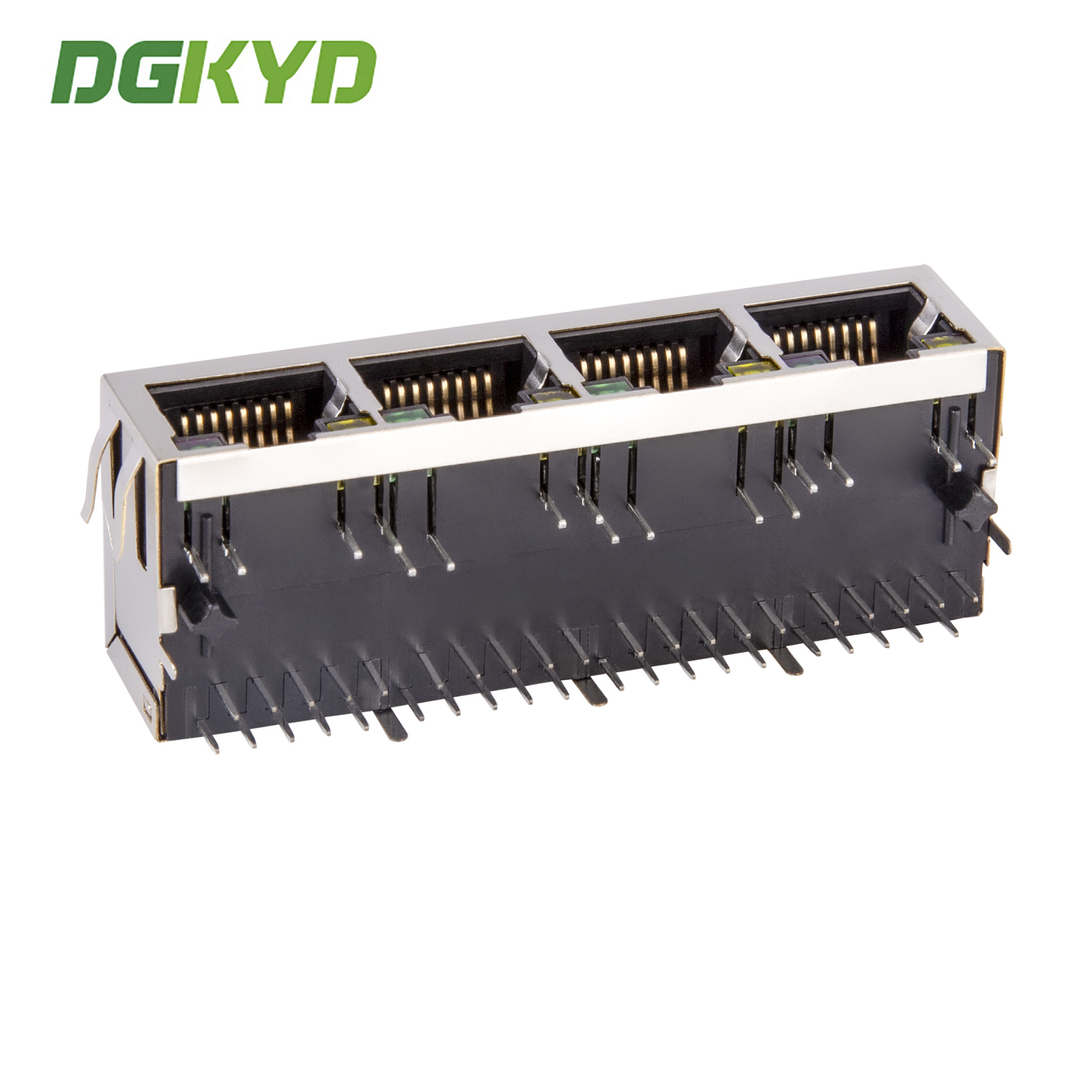

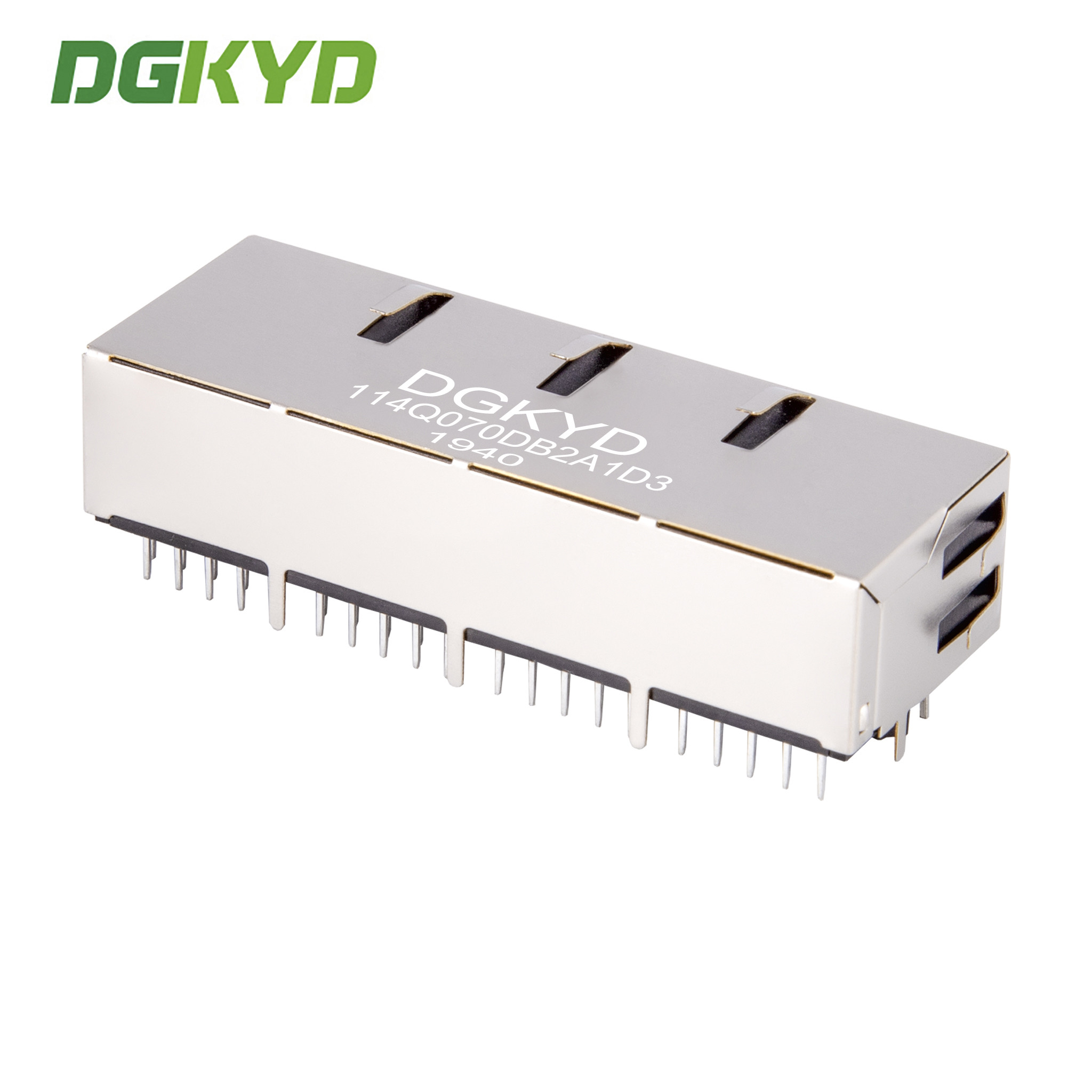

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3 0

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3 1

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
