Industrial Gigabit RJ45 Connector 1 Port with LED 180° Vertical Plug

Quantidade de ordem mínima :	1

Lugar de origem:	Guangdong, China	Número do modelo:	DGKYD511Q030AC1A8D057

Informação detalhada
Tipo:	RJ45	Gênero:	Fêmea
Cor LED:	Amarelo & verde	Revestimento:	Plaada de ouro 6U/15U/30U/50U
Material de moradia:	Poliéster de PBT	Filtro:	Com filtro
Trava:	Acima	Número de portas:	1 porta
Estilo da montagem:	Através do buraco	Velocidade do desempenho:	10/100/1000 base-t
Opções de aterramento:	Terra do painel e terra do PWB	Terminais pelo porto:	8
Material do escudo:	Liga de cobre preplated com níquel	Contato de acasalamento:	Gold 6U Plating
Material de base de contacto:	Bronze de fósforo
Destacar:	Industrial Gigabit RJ45 connector , RJ45 vertical plug with LED , Single port RJ45 connector

Descrição de produto

1x1 Port Industrial Gigabit Shielded RJ45 Connector with LED, 180° Vertical Plug - Communication Socket

High-performance industrial-grade RJ45 connector featuring shielded design, LED indicators, and 180° vertical plug configuration for reliable communication in demanding environments.

Product Specifications

Specification	Details
Part Number	DGKYD511Q030AC1A8D057
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Connector Assembly
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	With LED
LED Color	Yellow & Green
Panel Stops	With Panel Stops
Shielded	YES
Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single ports
Number of Positions	10
Jack Configuration	1*1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

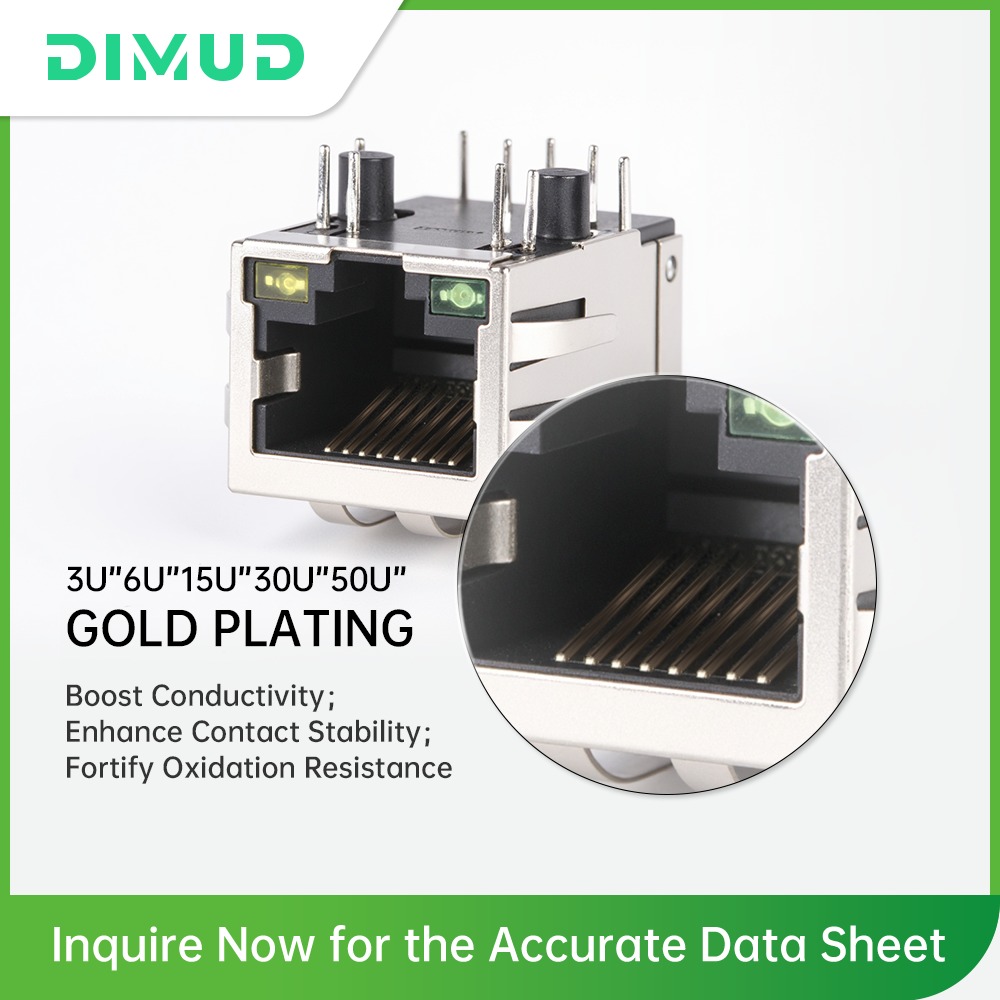

Contact Mating Area Plating Material	Gold 6u plating
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

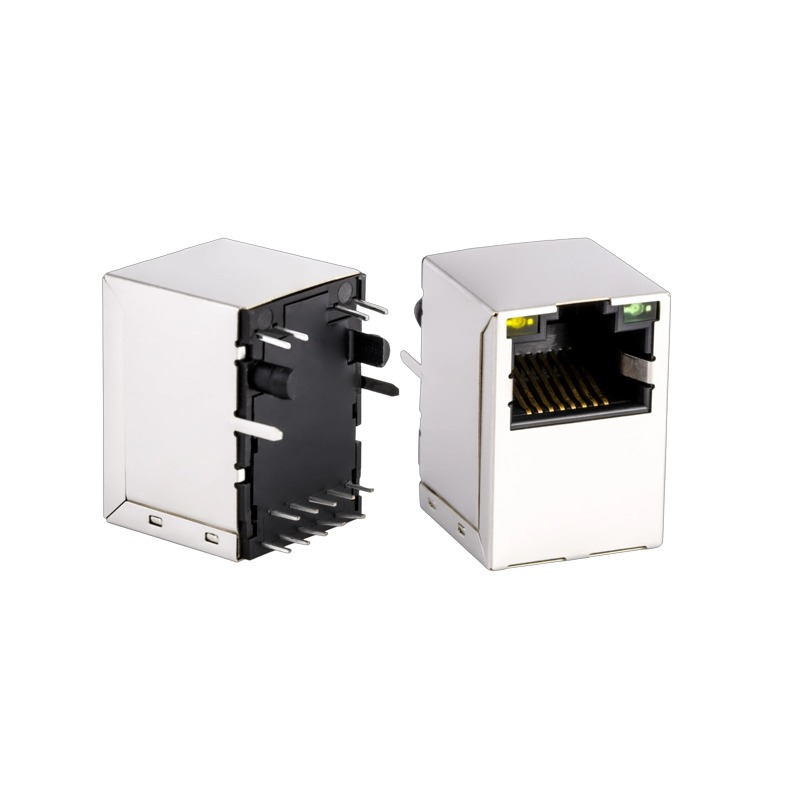

Product Images
